Zoom F6 Multitrack Field Recorder

  • Zoom F6 Multitrack Field Recorder
  • Zoom F6 Battery Example
  • Zoom F6 Ports Side 2
  • Zoom F6 on Camera Example
  • Zoom F6 Ports Side

ZOOM

Zoom F6 Multitrack Field Recorder

  • 6 High Gain/Low Noise Mic Preamps
  • 32-Bit Float Recording
  • Up to 14 Tracks of Simultaneous Recording
Rental Dates
$89.007 Day Rental
Renting gear is easy
1Select Dates
  • Real-time inventory
  • Low or no deposit
2Gear Arrives
  • Free 2-day shipping*
  • Ship or Pickup
3Shoot
  • The top gear
  • Rent from 1-90 days
4Easy Returns
  • Repack in same box
  • We provide return label

Overview

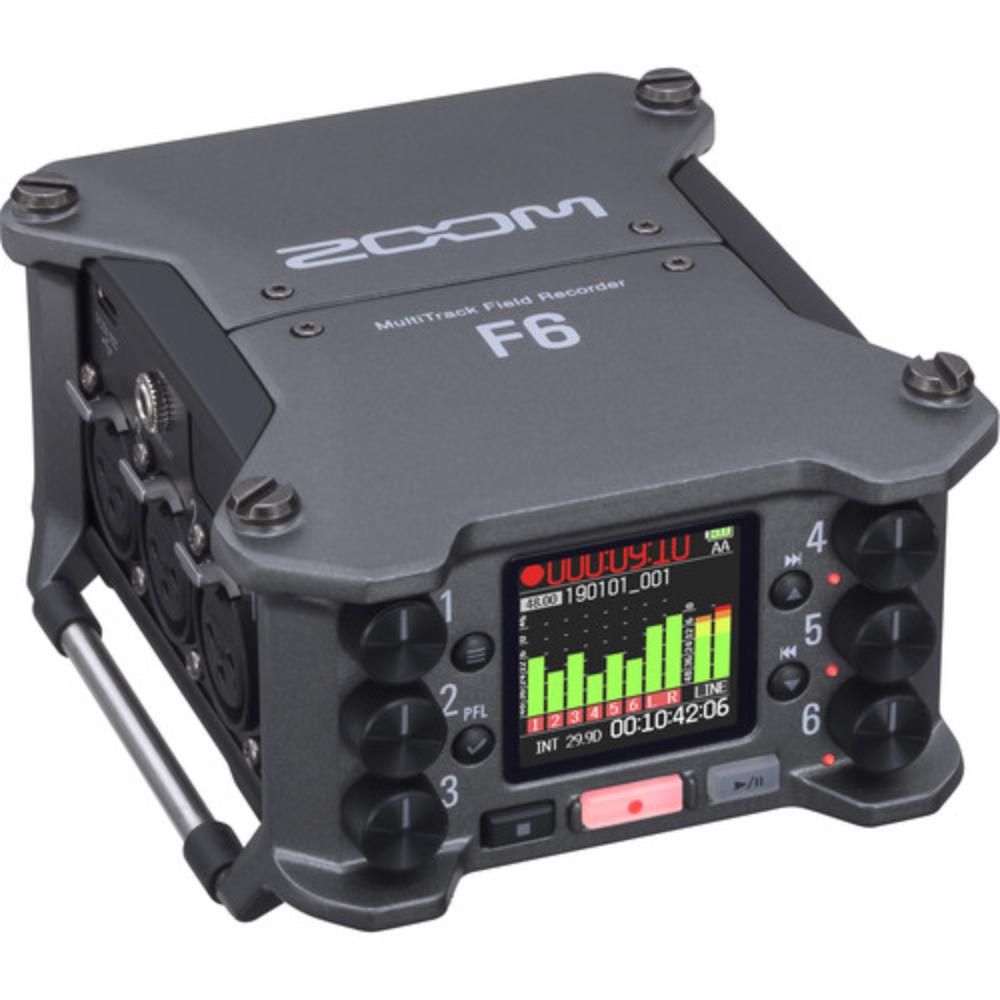

The Zoom F6 Multitrack Field Recorder is an ultra portable professional field recorder that can do 32-bit recording with dual A/D converters for massive dynamic range, allowing for the capture of both explosive and subtle sounds with little-to-no gain adjusting. It's equipped with 6 preamps, each with a super-low noise floor of -127 dBu EIN and high gain up to 75 dB. All 6 can be used at a max resolution of 192 kHz in 24-bit linear or 32-bit float in 6-track mode, while 14-track mode allows you to record in simultaneous 24-bit/32-bit float plus a stereo mix. You can also connect the F6 to your favorite audio recording program and record there and internally to an SD card up to 48 kHz. Here are a few other great features:

  • Efficient monitoring of sound via a high-output headphone jack.
  • Super precise timecode thanks to a Temperature Compensated Crystal Oscillator with accuracy up to 0.2 ppm.
  • Overload protection in 24-bit using advanced "look-ahead" hybrid limiters.
  • Dedicated level knobs for each input.
  • 1.54" full-color LCD.
  • Top and bottom 1/4" mounting.
  • 2.5mm stereo mini unbalanced line-out jack for easy connection to mixers, cameras, and other recording devices.
  • USB-C port for file backup, live streaming while recording, and power.
  • Easy cataloging with track naming, scene naming, notes, and more.

The Zoom F6 Multitrack Field Recorder is the ideal tool for distortion-free multitrack audio capture. It packs in a ton of features into a small form factor. It is great for not only filmmakers and sound effects recording, but also for virtual reality projects, music projects, and more.


Inputs:

  • 3-Pin XLR Balanced Line In (Inputs 1-6)
  • 3.5mm (1/8") TRS Timecode In
  • USB-C

Outputs:

  • 3.5mm (1/8") TRS Unbalanced Line Out
  • 3.5mm (1/8") TRS Unbalanced Headphone Out (Dedicated with Volume Control)
  • 3.5mm (1/8") TRS Timecode Out
  • 2 x Sub Outs (on Single Unbalanced 1/8" Stereo Mini Jack for Camera Connection)
  • BNC for Timecode
  • 1 x SD/SDHC/SDXC Slot (Supports Up to 512 GB)
  • Up to .5 Hours on AA Batteries Recording Time (WAV 192 kHz/24-Bit), Up to 1.5 Hours on NiMH, Up to 3.5 Hours on Lithium-Ion (External Batteries Not Included)
  • 14 Tracks (6 In Linear, 6 In Float + Stereo Mix)
  • BWF, MP3, WAV, iXML Supported File Formats
  • 128-320 kb/s Supported Bit Rates
  • 32-bit, 192 kHz Max Sample Rate
  • 23.976, 24, 25, 29.97, 29.97 (Drop Frame), 30, 30 (Drop Frame) Frame Rates Supported for Timecode
  • 24V, 48V for Each Input Phantom Power
  • +12-+75 dB Gain Range for Mic Input
  • +8 dB-+55 dB Gain Range for Line Input
  • +24 dBu In, +10 dBV Out Line Max Level
  • +4 dBu In Mic Max Level
  • Powered by 4 x AA (Not Included) or 1 x Sony L-Series Lithium-Ion Battery (Included) or AC Adapter (Included)
  • Built-In Tripod Mount
  • Dedicated Level Knobs for Each Input
  • Wireless Control with F Control App and Optional BTA-1 Bluetooth Adapter (Not Included)
  • 1.54" LCD Display Screen
  • 3.9 x 2.5 x 4.7", 1.2 lbs


  • Zoom F6 Multitrack Field Recorder
  • Zoom AD-17 AC Adapter
  • Camera Mount Adapter
  • Sony NP-F970 Battery
  • Sony L-Series NP-F Twin Battery Charger
  • Carrying Case
