Home > Rental Gear> Production> Audio> Zoom F4 Multitrack Field Recorder

ZOOM

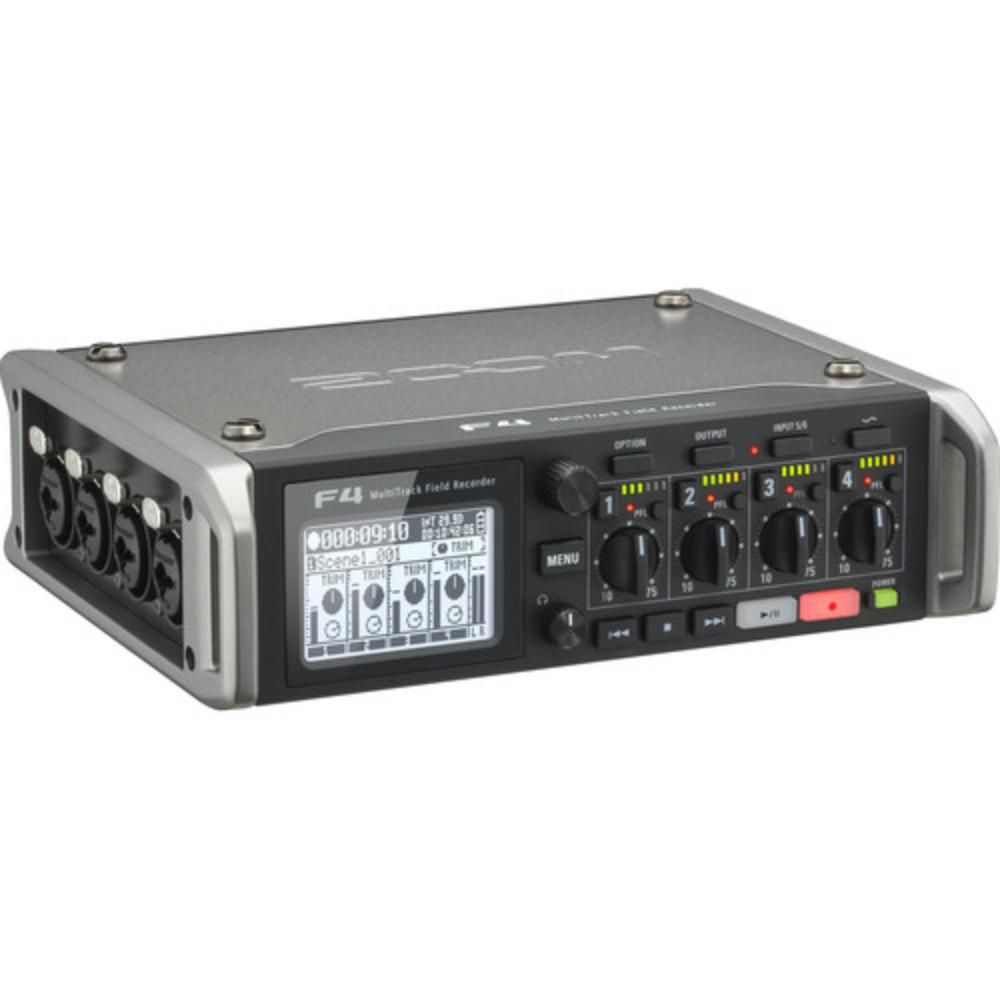

Zoom F4 Multitrack Field Recorder

  • Zoom F4 Multitrack Field Recorder
  • Zoom F4 Multitrack Field Recorder Side View
  • Zoom F4 Multitrack Field Recorder Side View
  • Zoom F4 Multitrack Field Recorder Back View

ZOOM

Zoom F4 Multitrack Field Recorder

  • 4 High Gain/Low Noise Mic Preamps
  • 24-Bit Recording
  • Up to 8 Tracks of Simultaneous Recording
  • For an updated version of this recorder with more preamps, ultra-high-dynamic 32-bit float recording format, and a full color LCD, please see the Zoom F6 Multitrack Field Recorder.
Rental Dates
$58.00 7 Day Rental
Renting gear is easy
1Select Dates
  • Real-time inventory
  • Low or no deposit
2Gear Arrives
  • Free 2-day shipping*
  • Ship or Pickup
3Shoot
  • The top gear
  • Rent from 1-90 days
4Easy Returns
  • Repack in same box
  • We provide return labels
Overview

For an updated version of this recorder with more preamps, ultra-high-dynamic 32-bit float recording format, and a full color LCD, please see the Zoom F6 Multitrack Field Recorder.


The Zoom F4 Multitrack Field Recorder is a 6-input/8-track sound tool with super low-noise mic preamps, accurate timecode, and overload protection. It records in BWF-compatible WAV format at 16-bit and 24-bit resolution and at any standard rate up to 192 kHz. Multitrack recording can be done on 4 XLR/TRS combo inputs, a 3.5mm stereo input, and a Zoom mic capsule input (such as the Zoom EXH-6 Dual XLR/TRS Input, which is not included). Input 5/6 allows for camera return for monitoring and the dual SD card slots let you record simultaneously for instant backups. This unit comes with an AC adapter and a DC-HIROSE adapter cable but you can optionally power this recorder with 8 AA batteries. The built-in 100mW headphone amplifier provides plenty of volume in noisy environments and alert tones can be set so that you don't get caught with low power or miss recording errors. An onboard mixer provides flexible signal routing from all inputs to all outputs with user-adjustable level, pan, and input/output delay while a built-in high-pass filter reduces wind noise. The Zoom F4 brings big Hollywood-style sound to smaller budgets and is ideal for any project that requires professional field recording.

Inputs:

  • XLR/TRS Combo Jacks (Inputs 1-4)
  • Stereo 3.5mm Mini Jack (Inputs 5-6)
  • 10-Pin Zoom Input (Compatible with Optional Zoom EXH-6 Dual XLR/TRS Input)

Outputs:

  • Stereo 1/4" Headphone Jack with Dedicated Volume
  • Main Outs 1 & 2 for External Mixers (Balanced XLR Jacks)
  • 2 x Sub Outs (on Single Unbalanced 1/8" Stereo Mini Jack for Camera Connection)
  • BNC for Timecode
  • 2 x SD/SDHC/SDXC Slots
  • Up to 9.5 Hours Recording Time on AA Batteries, Up to 11.5 Hours on NiMH, Up to 17.5 Hours on Lithium-Ion (External Batteries Not Included)
  • 10 Hz - 80 kHz (+0.5/-1.5 dB) Frequency Response
  • -127 dBu or Less Equivalent Input Noise
  • 24-bit, 192 kHz Max Sample Rate
  • Mic Preamps for Each Input
  • 24V, 48V for Every Preamp Phantom Power
  • Built-In Tripod Mount
  • LCD Display Screen
  • 2.1" Tall, 5.5" Deep, 7" Wide, 2.27 lbs

Warning:

When connecting a video camera or mixer to the MAIN OUT 1/2 jack of the F4, please make sure to turn off any phantom power applied to its input. Do not use phantom power with devices that are not compatible with phantom power – it could damage your device.

  • Zoom F4 Multitrack Field Recorder
  • Camera Mount Adapter
  • Zoom AD-19 12V AC Adapter
  • DHC-1 DC-HIROSE Adapter Cable
  • Zoom PCF-8 Protective Case
  • Zoom BCF-8 Battery Case
  • 4GB SDHC Class 10 Memory Card

  • When connecting a video camera or mixer to the MAIN OUT 1/2 jack of the F4, please make sure to turn off any phantom power applied to its input. Do not use phantom power with devices that are not compatible with phantom power – it could damage your device.
