Teradek Cube 255 HDMI Encoder  Rental

  • Teradek Cube 255 HDMI Encoder
  • Teradek Cube 255 HDMI Encoder

TERADEK

Teradek Cube 255 HDMI Encoder  Rental

  • 1080p Video and Embedded Audio Encoder
  • Streams Over WiFi, Ethernet or 3G/4G Modem
  • Stores Footage to microSD Cards Up to 32GB
  • Camera or Cage Mountable via 1/4"-20
This item has been discontinued
Renting gear is easy
1Select Dates
  • Real-time inventory
  • Low or no deposit
2Gear Arrives
  • Free standard shipping ($149+)
  • Ship or pick up
3Create
  • Use top gear
  • Rent from 1-90 days
4Easy Returns
  • Repack in same box
  • We provide return label

Overview

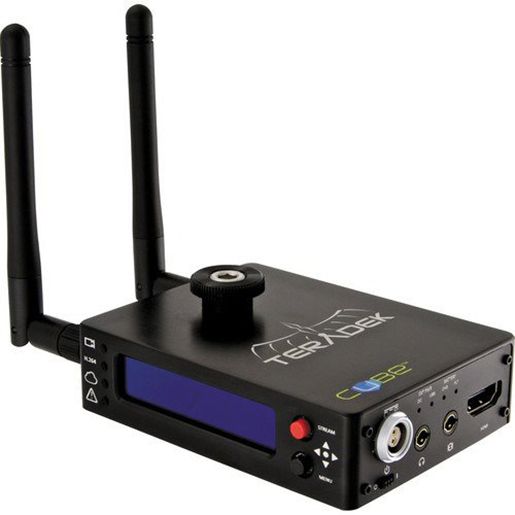

The Teradek Cube 255 HDMI Encoder sends 1080p HD video and encoded audio from a camera to the web in real time. It mounts right on top of a camera or rig via 1/4"-20 and is connected to your gear via HDMI. The internal battery charges over USB and lasts around 2 hours. Use the AC adapter for continuous power. This device will stream via WiFi, ethernet, or with a 3G/4G modem. A handy OLED screen tells you battery life, online status, and the URL being streamed to. The Teradek Cube is ideal for showing real-time project progress by taking footage from your camera and streaming proxy files either to your decoder or a website while at the same time recording to a microSD card (not included) up to 32GB. This is a great tool for remote clients and for recording/streaming live events, ceremonies, school announcements, and performances.


Inputs: HDMI, 3.5mm Line/Mic In, Headphone Jack, Ethernet, Micro USB (for Charging Internal Battery), 2-Pin Lemo Input (for Power), RJ45, microSD Slot
Resolutions: 1080p30, 1080i60, 720p60
Codecs: H.264, Bit Rate Ranging from 250Kbps-10Mbps, 4:2:0
Aspect Ratios: 4:3, 16:9
Dimensions: 2.5 x 3.5 x 9"
Weight: 8 oz
Additional Features:

  • Streams Over 2.4/5.8G WiFi, Ethernet, 3G/4G USB Modem
  • 2 Hour Internal Battery


  • Teradek Cube 255 HDMI Encoder
  • 6' AC Power Cable with AC Adapter
  • Hot Shoe Mounting Adapter
  • 2 x Dual-Band Wireless Antennas
  • 3' Ethernet Cable
  • 3' HDMI to HDMI Cable
  • 3' Mini HDMI to HDMI Cable
  • 3' Micro HDMI to HDMI Cable
  • Right Angle HDMI to HDMI Adapter
  • Right Angle Mini HDMI to HDMI Adapter
  • 3' BNC to BNC SDI-Video Cable


  • This encoder streams via WiFi and ethernet (cable included). It can also stream via 3G/4G USB modem (not included).
  • For local monitoring in Master Mode or Shared Access Point, download TeraCentral on your computer or mobile device.
  • Compatible with microSD cards (not included) up to 32GB.
  • Internal battery lasts approximately 2 hours and can be charged with a standard USB cable (5V USB power source recommended), which is not included. An AC adapter is included for continuous power.
