Teradek Bolt 4K LT 750

Teradek Bolt 4K LT 750

3G-SDI/HDMI Transmitter & Receiver Set
2.4/5.8GHz Frequency Band & 4K30 (HDMI), 1080p60 (SDI)
Timecode Support, 750' Line-of-Sight Range, AES-256 Encryption

Rental Dates

Pickup or Delivery

$250.00 7 Day Rental

Renting gear is easy

1Select Dates

Real-time inventory
Low or no deposit

2Gear Arrives

Free 2-day shipping*
Ship or Pickup

3Shoot

The top gear
Rent from 1-90 days

4Easy Returns

Repack in same box
We provide return label

Overview

The Teradek Bolt 4K LT 750 transmits wireless 10-bit HD video signal over SDI or UHD 4K over HDMI up to 750' with zero latency so that every member of your crew can view footage in real time. It's the first 4K HDR wireless system to offer uncompressed transmission. The intelligent RF design ensures your video feed is transmitted reliably over the 5GHz band with built-in AES-256 encryption and RSA 1024 key pairing. The Bolt 4K supports HDR-10, PQ, and HLG standards and can transport extended camera metadata, timecode, and record triggers over the wireless link. When paired with the Bolt app, you can work with channel selection tools, a spectrum analyzer, and make easy remote configurations. Mount your transmitter and receiver to a variety of rigs thanks to the 1/4"-20 and M3 threads.

Special Note on Power: An AC adapter is provided for your receiver. A P-tap cable is provided for the transmitter. You will need to pair the P-tap cable with broadcast-style batteries, which are not included.

Specs

Video Resolutions and Framerates:

SDI/BNC

1080p 4:2:2 YCC 10-Bit at 23.98, 24, 25, 29.97, 30, 59.94, 60 FPS
1080PsF 4:2:2 YCC 10-Bit at 23.98, 24, 25, 29.97, 30 FPS
1080i/720p 4:2:2 YCC 10-Bit at 50, 59.94, 60 FPS

HDMI

UHD 4K 4:4:4 RGB 10-Bit at 23.98, 24, 25, 29.97, 30 FPS
1080p 4:4:4 RGB 10-Bit at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 FPS
1080PsF 4:4:4 RGB 10-Bit at 23.98, 24, 25, 29.97, 30 FPS
1080i/720p 4:4:4 RGB 10-Bit at 50, 59.94, 60 FPS

Frequency Range:

Non-DFS

US - 5.19 to 5.23 GHz
US - 5.75 to 5.79 GHz

DFS

US - 5.27 to 5.67 GHz

Additional Features:

2-Channel 24-Bit 48 kHz LPCM Audio
Timecode Support
750' Line-of-Sight Wireless Range
13 Channels (40 MHz), 25 Channels (20 MHz)

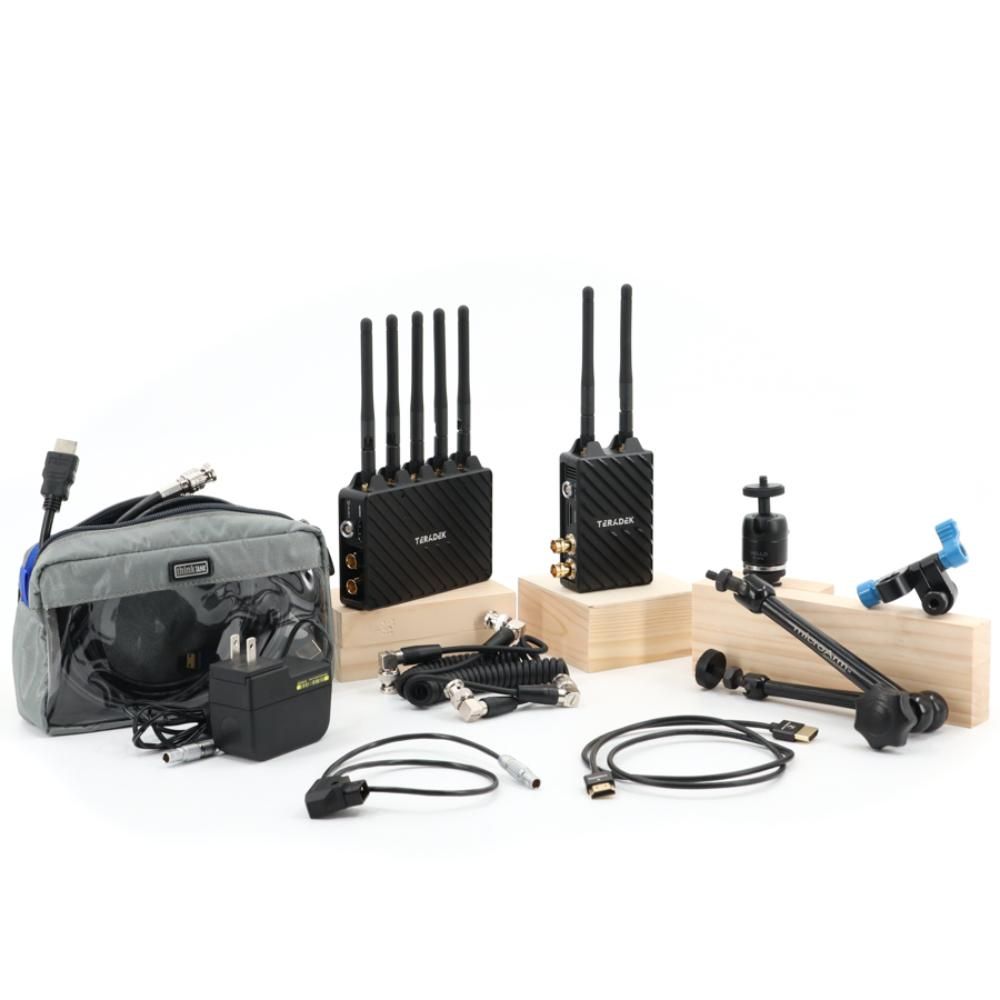

Rental Includes

Teradek Bolt 4K LT 750 3G-SDI/HDMI Wireless Receiver
Teradek Bolt 4K LT 750 3G-SDI/HDMI Wireless Transmitter
6 x Paralinx 2dBi Omni-Directional Antennas
6' Teradek 2-Pin LEMO to AC Adapter Cable (for Powering Receiver)
18" Teradek 2-Pin LEMO to P-Tap Cable (for Powering Transmitter from Broadcast Batteries, Batteries Not Included)
Redrock Micro microMount
Micro Ball Head Shoe Mount
4" Micro Arm
2 x 10" Teradek CineCoil 3G/HD/SD-SDI Cables
3' 12G-SDI 4K BNC to BNC Cable
2 x 3' HDMI to HDMI Cables
3' Mini HDMI to HDMI Cable
3' Micro HDMI to HDMI Cable
Right Angle HDMI to HDMI Adapter
Right Angle Mini HDMI to HDMI Adapter
Carrying Case

Rental Notes

An AC adapter is provided for your receiver. A P-tap cable is provided for the transmitter. You will need to pair the P-tap cable with broadcast-style batteries, which are not included.
