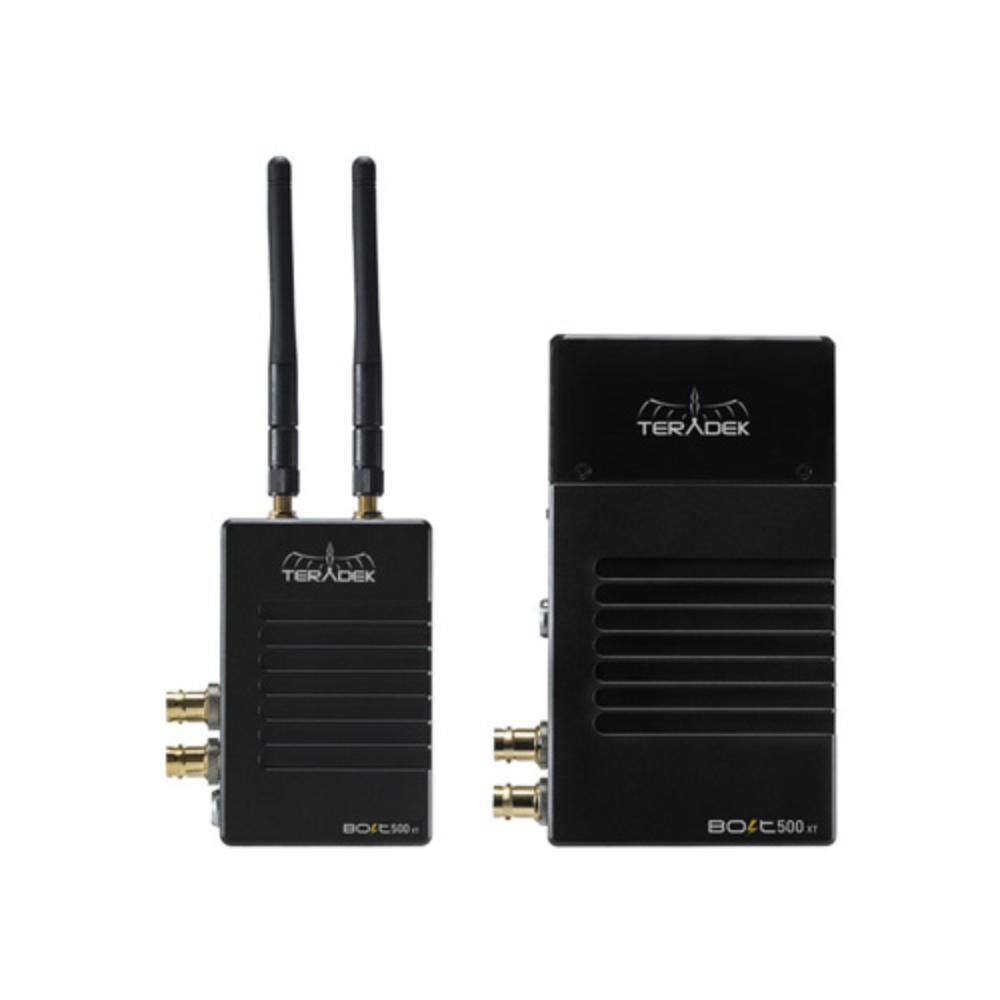

Teradek Bolt 500 XT 3G-SDI/HDMI Wireless Transmitter and Receiver

  • Teradek Bolt 500 XT 3G-SDI/HDMI Wireless Transmitter and Receiver
  • Teradek Bolt 500 XT 3G-SDI/HDMI Wireless Transmitter and Receiver Ports

Teradek Bolt 500 XT 3G-SDI/HDMI Wireless Transmitter and Receiver

  • Includes Transmitter & Receiver
  • Supports Up to 1080p60
  • 500' Line of Sight Range
  • SDI & HDMI Outputs
Rental Dates
$180.007 Days Rental
Renting gear is easy
1Select Dates
  • Real-time inventory
  • Low or no deposit
2Gear Arrives
  • Free 2-day shipping*
  • Ship or Pickup
3Shoot
  • The top gear
  • Rent from 1-90 days
4Easy Returns
  • Repack in same box
  • We provide return labels

Overview

The Teradek Bolt 500 XT transmits wireless 10-bit HD video signals up to 500' with zero latency so that every member of your crew can view footage in real time. It features both SDI and HDMI outputs with 3G-SDI loop-through output on the transmitter. The intelligent RF design ensures your video feed is transmitted reliably over the 5GHz band with built-in AES 128 encryption. The Teradek Bolt supports timecode and START/STOP from many camera manufacturers, including RED, ARRI, Canon, Sony, and Panasonic. This is a reliable system suitable for both narrative and documentary filmmakers and is an essential tool for supporting the monitoring of footage on sets large and small.


  • 3G/HD/SD-SDI (BNC, 75 Ohm) In/Out, HDMI In/Out
  • Supports Up to 1080p60
  • Supports 10-bit Color
  • 48 kHz, 24-bit PCM Audio Compression
  • Dynamic Frequency Selection Range (USA): 5.27-5.55GHz, 5.67GHz
  • Wireless Power with Included Canon lp-e6N battery


  • (1) Teradek Bolt 500 XT 3G-SDI/HDMI Wireless Receiver
  • (1) Teradek Bolt 500 XT 3G-SDI/HDMI Wireless Transmitter
  • (2) Paralinx 2dBi Omni-Directional Antennas
  • (1) 6' Teradek 2-Pin LEMO to AC Adapter Cable
  • (1) Teradek Tomahawk2 Transmitter/Receiver battery Plate for lp-e6/lp-e6N Batteries
  • (1) Canon lp-e6N battery
  • (1) Canon LC-E6 Charger
  • (1) Redrock Micro microMount
  • (1) Micro Ball Head Shoe Mount
  • (2) usb to Mini usb Cables
  • (1) 18" Teradek 2-Pin LEMO to P-Tap Cable
  • (1) 10" Teradek CineCoil 3G/HD/SD-SDI Cable
  • (1) 3' BNC to BNC SDI-Video Cable
  • (1) 3' HDMI Cable (Type A - Type A)
  • (1) 4" Micro Arm (Long)
  • (1) 3' Mini HDMI to HDMI Cable
  • (1) 3' Micro HDMI to HDMI Cable
  • (1) Right Angle HDMI to HDMI Adapter
  • (1) Right Angle Mini HDMI to HDMI Adapter
  • Carrying case


  • For advanced features, you may need to download TeraCentral/TeraView on your computer or mobile device.
