Tascam CA-XLR2d-C

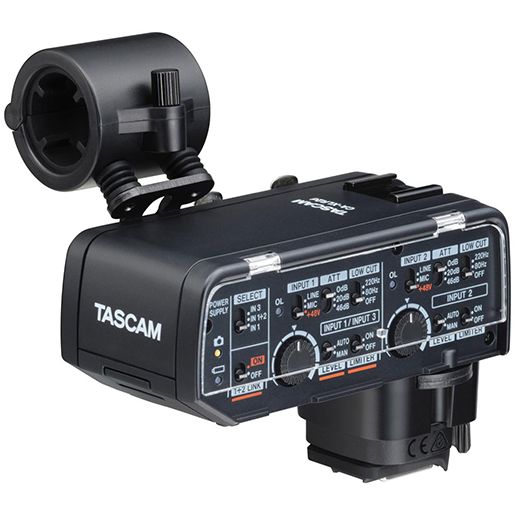

  • Main view of adapter showing all the controls.
  • Side view of adapter showing inputs/outputs.
  • Back view of adapter showing volume/mic out port.

Tascam CA-XLR2d-C

  • Designed for Canon's Multi-Accessory Shoe for Digital Transmission
  • Allows Input from Dynamic Mics, Condenser Mics & Line-Level Signals from Mixer
  • XLR/TRS Combo Jacks, Stereo Mini Jack
  • 16-Bit/24-Bit, 48kHz/96kHz-Bit Rates
Rental Dates
$50.007 Day Rental
Renting gear is easy
1Select Dates
  • Real-time inventory
  • Low or no deposit
2Gear Arrives
  • Free 2-day shipping*
  • Ship or Pickup
3Shoot
  • The top gear
  • Rent from 1-90 days
4Easy Returns
  • Repack in same box
  • We provide return labels

Overview

The Tascam CA-XLR2d-C is a microphone adapter kit for Canon cameras with a multi-accessory shoe so that you can use your favorite XLR microphone with cameras such as the EOS R3, EOS R5 C, EOS R7, EOS R10 and XF605. It is equipped with combo XLR-1/4" inputs and one stereo 3.5mm input jack plus a headphone jack for latency-free direct monitoring.


  • 2 Channels
  • Analog-to-Digital Convertion on Compatible Cameras
  • 16/24 Bit Rate, 48/96 kHz Sampling Frequency
  • 66 dB Gain Range
  • XLR/TRS Combo Terminals 1 and 2, Stereo Mini Jack (Unbalanced)
  • 3.5mm Headphone Jack
  • Powered by Compatible Camera or 2 AA Batteries
  • 3.47 x 4.69 x 4.33", 12.6 oz


  • Tascam CA-XLR2d-C
  • Battery Box for 2 AA Batteries (Batteries Not Included)
  • Removable Mic Holder
  • 3.5mm Stereo DSLR Audio Cable (Coiled)
  • CA-AK1-C Canon Multi-Accessory Shoe
  • CA-AK1-AN Cold Shoe Mount Adapter
  • Carrying Case


  • Power is supplied either via a compatible camera or AA batteries. If using AAs, power lasts approximately 3-6.5 hours on alkalines, 5-7 hours on Ni-MHs, and 8-14.5 hours on lithiums. For cameras that supply phantom power, the AAs might still be required depending on the camera's maximum current rating for phantom power.
  • The 2 XLR inputs and the 3.5mm mic input cannot be all used at once. You must choose In 1+2, In 1 only or In 3 only.
  • Please wait at least 5 seconds for audio signal to send from the Tascam to your camera's Multi-Accessory shoe when first powering up. Recording right away may result in no audio at the very start of your scene. This delay may also exist when accessing menus. These delays exist when using camera power. They are shorter when using the battery box.
  • This rental comes with a cold shoe mount adapter so that you can use the Tascam on cameras without Multi-Accessory shoes. It will require a screwdriver to do and it is delicate so please be careful when swapping shoe adapters. Please reattach the Multi-Function shoe adapter before returning your rental if you do end up swapping for the cold shoe adapter.
