Sony XDCA-FS7/FS7 II Extension Unit

  • Sony XDCA-FS7/FS7 II Extension Unit

SONY

Sony XDCA-FS7/FS7 II Extension Unit

  • Allows 12-Bit Raw Out from FS7/FS7 II to Recorder
  • Tally Indicator, Timecode & Genlock I/O
  • Allows Broadcast Battery Attachment
Rental Dates
$224.00 7 Day Rental
Renting gear is easy
1Select Dates
  • Real-time inventory
  • Low or no deposit
2Gear Arrives
  • Free 2-day shipping*
  • Ship or Pickup
3Shoot
  • The top gear
  • Rent from 1-90 days
4Easy Returns
  • Repack in same box
  • We provide return label
Overview

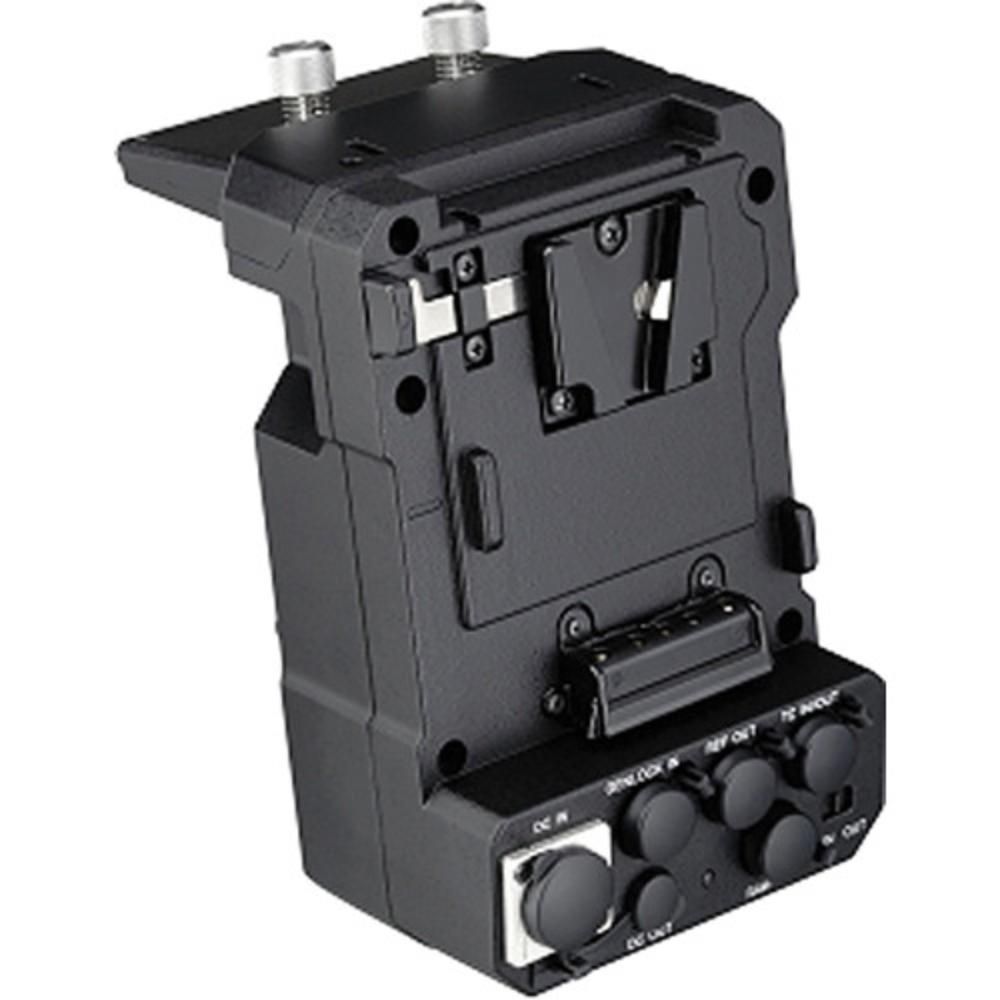

The Sony XDCA-FS7 Extension Unit for PXW-FS7 or PXW-FS7 II attaches to the back of your camera and enables raw data out for recording 12-bit 4K/2K raw footage to external recorders. It also has built-in ProRes encoding for writing 1080p ProRes 4:2:2 footage to an XQD card in-camera. It is equipped with V-Mount (as well as a Gold Mount adapter plate) and provides an easy way to add V-Mount or Gold Mount broadcast batteries (batteries not included) to your FS7/FS7 II. The MultiPin connector on this unit allows for cable-free attachment to the camera. This unit is essential for those seeking raw out to external recorders and internal ProRes shooting with their FS7s and/or those seeking Timecode and Genlock connectors for multi-camera operation.

Interface: 144-Pin I/O for FS7, FS7 II
Battery Mounting: V-Mount (Native), Gold Mount Plate Included (Batteries Not Included)
Ports: 4-Pin XLR DC In, 4-Pin Hirose DC Out, 4 x BNC
Audio Format: 24-bit, 48 kHz, 2-Channel
Weight: 1.4 lbs
Supported Video Formats:

  • 4K Raw 12-bit (4096 x 2160) 23.98p, 25p, 29.97p, 50p, 59.94p, Slow and Quick Motion: 1 to 60 FPS
  • 2K Raw 12-bit (2048 x 1080) 23.98p, 25p, 29.97p, 50p, 59.94p, Slow and Quick Motion: 240 FPS, 120 FPS
  • HD ProRes HQ 4:2:2 10-bit (1920 x 1080) 23.98p (176Mbps), 25p (184Mbps), 29.97p (220Mbps)
  • HD ProRes 4:2:2 10-bit (1920 x 1080) 23.98p (117Mbps), 25p (122Mbps), 29.97p (147Mbps)

  • Sony XDCA-FS7 Extension Unit
  • Anton Bauer QRC-4K-S Mounting Plate for Gold Mount Batteries
  • Sony XDCA-FS7 Mounting Screw with Spring
  • Carrying Case

  • You won't be able to mount this extension unit to your camera with a BP-U battery already inside. Remove the battery before attaching the unit.
  • This unit has its own fan. It isn't loud but it may influence whether or not you want to use it.

There is no manual for this product
