Sony XDCA-FX9 Extension Unit

  • Sony XDCA-FX9 Extension Unit
  • Sony XDCA-FX9 V-Mount Plate

SONY

Sony XDCA-FX9 Extension Unit

  • Compatible with V-Mount & Gold Mount Batteries
  • 16-Bit Raw Out, 10-Bit 120 FPS in Super 35
  • Built-In Networking with QoS Streaming
  • Batteries Required
Rental Dates
$170.007 Day Rental
Renting gear is easy
1Select Dates
  • Real-time inventory
  • Low or no deposit
2Gear Arrives
  • Free 2-day shipping*
  • Ship or Pickup
3Shoot
  • The top gear
  • Rent from 1-90 days
4Easy Returns
  • Repack in same box
  • We provide return labels

Overview

Special Note: All of our extension units have been updated to at least firmware 3.0, which includes 16-bit raw output support, HDR support, usb tethering support, iris T value support, ISO expansion, and more when paired with an FX9 and compatible Atomos recorder.

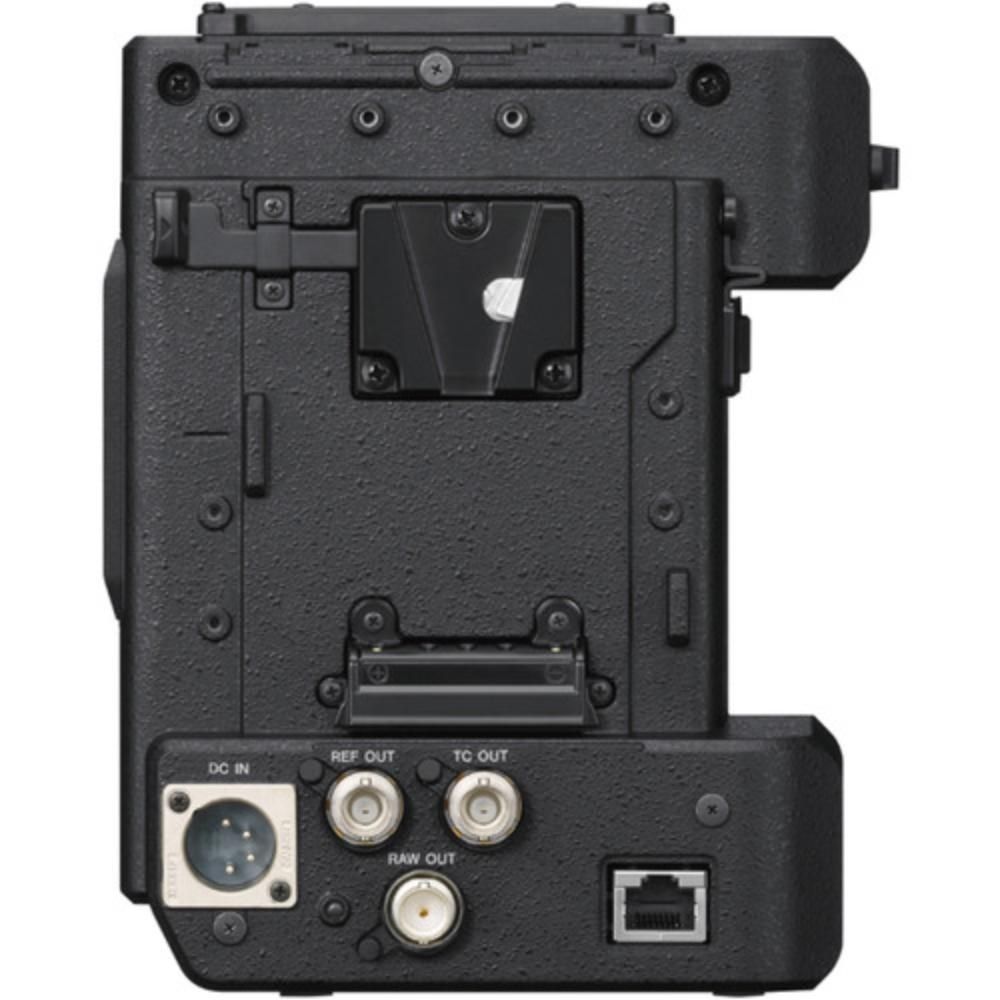

The Sony XDCA-FX9 V-Mount Extension Unit attaches to the back of the Sony PXW-FX9 XDCAM 6K Full Frame camera via a MultiPin connector and, when paired with V-mount batteries (not included, gold mount battery compatible when using included QRC-4K-S Adapter Plate), extends your shooting time while also offsetting the weight of larger lenses. It has built-in networking capabilities for streaming and file transfer via Wireless LAN with Dual Link capability for live streaming and file transfer, enhancing ENG workflows. It also adds a wireless audio receiver slot that's compatible with DWX and URX series receivers (not included). With seamless attachment, the Sony XDCA-FX9 Extension Unit is the ideal accessory for your Sony PXW-FX9.


  • V-Mount Battery Compatible (Batteries Not Included)
  • Gold Mount Battery Compatible When Using Included QRC-4K-S Adapter Plate
  • Compatible with Sony BP-GL and BP-FL Series Batteries (Not Included)
  • 4-Pin XLR Power In, 4-Pin Hirose DC Out, Timecode Out, Reference Out, LAN and 2 USB Ports for Live Streaming/XDCAM Air
  • 16-Bit Raw Out with Third-Party Raw Recorder
  • 10-Bit 120 FPS in Super 35
  • Wireless Audio Receiver Slot
  • Built-In Networking with QoS Streaming, Dual Link


  • FX9 Extension Unit
  • Anton Bauer QRC-4K-S V-Mount to Gold Mount Adapter Mounting Plate
  • Mounting Screw
  • Carrying Case


  • This expansion unit is compatible with V-mount batteries. Batteries are not included. It is also compatible with gold mount batteries when using the supplied QRC-4K-S V-Mount to Gold Mount Adapter Mounting Plate.
