Sony PXW-Z90V

  • Sony PXW-Z90V
  • Sony PXW-Z90V Handle Side
  • Sony PXW-Z90V Kit
  • Sony PXW-Z90V Back
  • Sony PXW-Z90V Card Slots

SONY

Sony PXW-Z90V

  • UHD 4K30
  • 2.4/5 GHz Live Streaming
  • 12x Zeiss Optical Zoom
Rental Dates
$160.007 Day Rental
Renting gear is easy
1Select Dates
  • Real-time inventory
  • Low or no deposit
2Gear Arrives
  • Free 2-day shipping*
  • Ship or Pickup
3Shoot
  • The top gear
  • Rent from 1-90 days
4Easy Returns
  • Repack in same box
  • We provide return label

Overview

The Sony PXW-Z90V is an ultra compact camcorder and the first in its size class to offer 4K HDR with Hybrid Log-Gamma file-based workflows. Here are some of the standout features of this "palmcorder":

Enhanced Sensor and Fast Autofocus

Using 273 phase-detection AF points along with a new algorithm, the PXW-Z90V performs highly accurate focusing and tracking. Pull and push focus simply by touching the LCD screen or take on even the fastest action with the enhanced Fast Hybrid AF, which uses these dense AF points alongside face detection and lock-on technology to estimate your subject's next move. Choose your exact creative AF needs using AF Drive Speed, AF Track Depth, and AF Switching Sensitivity. Whether you're covering stampeding wildlife or talking-head documentary footage, you can maintain tack-sharp focus which is further helped with built-in optical image stabilization.

The 1" sensor is back-illuminated and offers cutting-edge light sensitivity for its size (which is approximately equivalent to a 16mm film frame). This sensor technology uses stacked pixel architecture so that you can enjoy a larger resolution in a smaller overall package, with the added benefit of less rolling shutter effects. It also achieves faster data readout. Sony's Clear Image Zoom uses a crop of the sensor to deliver extended zoom (up to 18x) without loss of quality.

Versatile Recording Performance and Smart Design

Get up to 120 frames per second in Full HD for stunning slow motion results. Choose from among a variety of formats, frame rates, and codecs with support for 100Mbps XAVC Long recording in 4K. You'll have full image control with S-Log3/S-Gamut3 plus several different picture styles. Two SD card slots are available for simultaneous or relay recording. START/STOP is accessible on both the handle grip and on the camcorder body.


Sensor: 14.2MP 1" Exmor RS CMOS
Video Resolutions/Framerates:

XAVC QFHD MPEG-4 AVC/H.264 4:2:0 LongGOP



  • 3840 x 2160 at 29.97p, 25p, 23.98p (100Mbps/60Mbps)



XAVC HD MPEG-4 AVC/H.264 4:2:2 LongGOP





  • 1920 x 1080 at 59.94p, 50p, 29.97p, 25p, 23.98p (50Mbps/35Mbps)
  • 1920 x 1080 at 59.94i, 50i (50Mbps/35Mbps/25Mbps)





MPEG HD422 (CBKZ-SLMP Required) MPEG-2 422P at HL 4:2:2 LongGOP





  • 1920 x 1080 at 59.94i, 50i, 29.97p, 25p, 23.98p (5Mbps)
  • 1280 x 720 at 59.94p, 50p (50Mbps)





MPEG HD420 (CBKZ-SLMP Required) MPEG-2 MP at HL 4:2:0 LongGOP





  • 1920 x 1080 at 59.94i, 50i, 29.97p, 25p, 23.98p, HQ Mode (35Mbps)
  • 1440 x 1080 at 59.94i, 50i, HQ Mode (35Mbps)
  • 1280 x 720 at 59.94p, 50p, HQ Mode (35Mbps)





AVCHD MPEG-4 AVC/H.264





  • 1920 x 1080 at 59.94p, 50p, PS Mode (28Mbps)
  • 1920 x 1080 at 59.94i, 50i, 29.97p, 25p, 23.98p, FX Mode (24Mbps)





Slow & Quick Motion Function





  • 2160p, Frame Rate Selectable at 1, 2, 4, 8, 15, 30 FPS (60i)
  • 1080p, Frame Rate Selectable at 1, 2 ,4, 8, 15, 30, 60, 120 FPS (60i)





Super Slow Motion Function





  • 1080p, Frame Rate Selectable at 240, 480, 960 FPS (60i)
  • 1080p, Frame Rate Selectable at 250, 500, 1000 FPS (50i)





Lens Compatibility: Built-In 9.3-111.6mm (35mm Equivalent = 29-348mm) f/2.8-4.5 Zeiss Vario-Sonnar T Lens w/ 12x Optical Zoom, 18x Clear Image Zoom
Ports & I/O:





  • 1 x BNC (3G HD-SDI, Supports Up to HD) In
  • 1 x BNC (Composite, Supports Up to HD) Out
  • HDMI (Type A) Out (Supports Up to QFHD)
  • Micro USB (Type B)
  • 2.5mm LANC
  • 3-Pin XLR Terminals 1 and 2 (Line/Mic Selectable, 48V Phantom Power)
  • Accessory Shoe





Memory Card Compatibility: 1 x UHS-I SD Card Slot
Monitor/LCD: 3.5" Articulating LCD
Dimensions: 5.1 x 7.1 x 11.3"
Weight: 2.2 lbs
Additional Features:

  • Built-In Mechanical ND Filters
  • Optical Image Stabilization
  • Phase Detection Autofocus

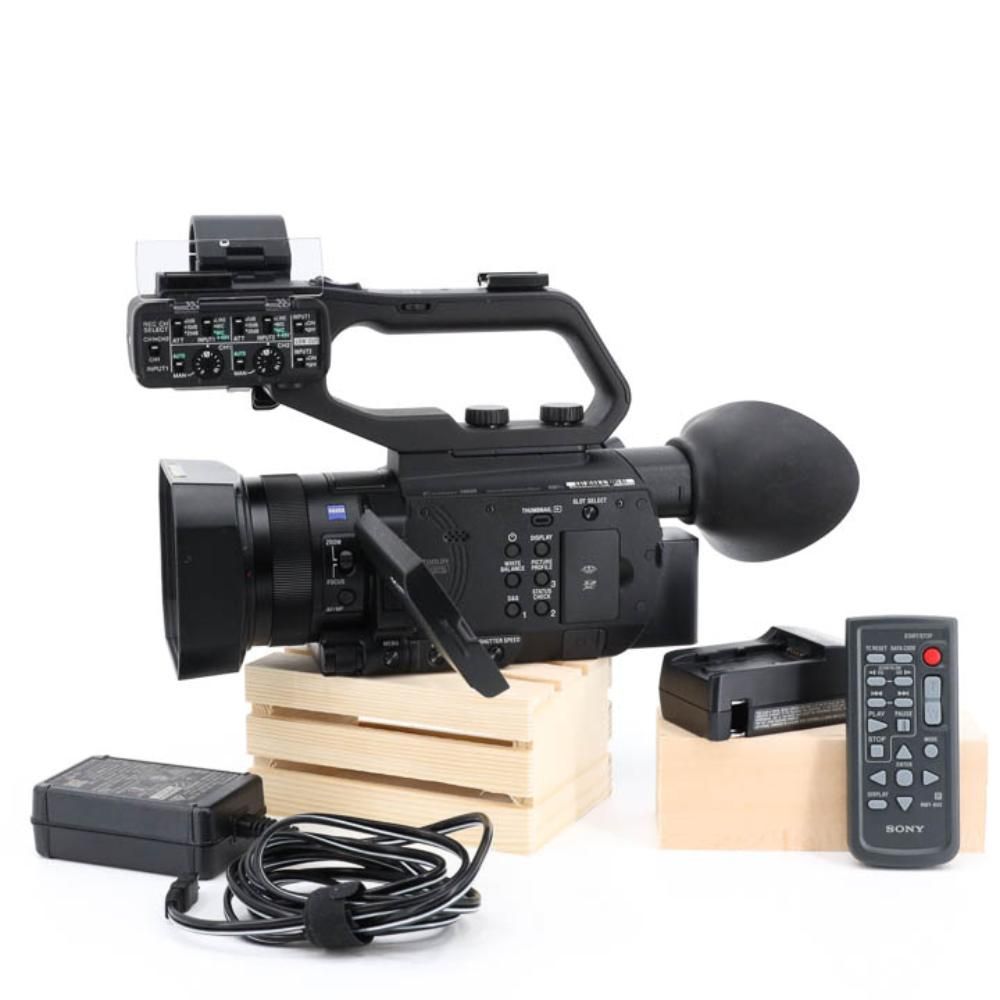

  • Sony PXW-Z90V XDCAM 4K HDR Camera System
  • Lens Hood
  • Front Cap
  • Eye Cup
  • AC-L200 AC Adapter
  • NP-FV70A Battery
  • BC-TRV Charger
  • XLR Handle with Mic Holder (External Mic Not Included)
  • 3' USB to Micro USB Cable
  • RMT-845 Remote Commander
  • Carrying Case


  • Battery lasts approximately 140-265 minutes (when recording) per charge depending on settings.

  • Streaming supported only if the original file is in QFHD format with a bit rate of 60Mbps.
