Sony PXW-FS5 II

  • Sony PXW-FS5 II
  • Sony PXW-FS5 II Side
  • Sony PXW-FS5 II Kit
  • Sony PXW-FS5 II Back

SONY

Sony PXW-FS5 II

  • Super 35mm Sensor
  • 4K/2K Raw Out, 1080p120/240
  • Dual XLR Audio Inputs
Rental Dates
$261.007 Day Rental
Renting gear is easy
1Select Dates
  • Real-time inventory
  • Low or no deposit
2Gear Arrives
  • Free 2-day shipping*
  • Ship or Pickup
3Shoot
  • The top gear
  • Rent from 1-90 days
4Easy Returns
  • Repack in same box
  • We provide return labels

Overview

The Sony PXW-FS5 II improves on its predecessor with expanded recording capabilities, a more sensitive sensor, and faster readout speeds. Sony modeled the FS5 II's colors after their world-leading professional VENICE cinematography camera, delivering an incredible cinematic look to its footage.

Recording Capabilities

To an external recorder, you can output continuous 4K raw at 60 FPS, 2K raw at 240 FPS, or even do a 4-second burst of 4K raw at 120 FPS. For internal recording, enjoy Quad HD 4K (3840 x 2160) at 29.97p, 25p, or 23.98p at 100Mbps, continuous recording of Full HD up to 120 FPS, or an 8-second bust in Full HD (10-bit, 4:2:2) up to 240 FPS! Frame rates of up to 960 FPS are possible at certain settings.

4K Sensor and New Color Science

In addition to 14 stops of exposure latitude and high-speed full-pixel read-outs, the FS5 II includes the color technology found in their high-end VENICE camera. It softens skin tone, exhibits more natural-looking highlights, and has a more cinematic look overall. Separately, you can opt for one of two powerful HDR workflows which give you as much data as possible for ultimate post-product flexibility.

Modular Design

The FS5 II is designed to be customized to meet your shooting style. The 3.5" LCD can be attached in 9 different locations. There are 1/4"-20 mounting ports on the handle, top, and bottom of the body to support just about any mounting configuration. The dual SD cards will record simultaneously or in relay mode. Two XLR connectors one on the handle and one on the body are provided for simple connection of mics and other accessories. The built-in electronic variable ND filters are a handy feature for expanding depth of field capabilities. Clear Image Zoom enlarges the image by 200% in Full HD and 150% in 4K and works even when using prime lenses.


Sensor: Super 35 CMOS
Video Resolutions/Frame Rates:

SDI Out

  • Raw 4096 x 2160 at 50 FPS, 60 FPS
  • Raw (4 Second Burst) 4096 x 2160 at 100 FPS, 120 FPS
  • Raw 2048 x 1080 at 100 FPS, 130 FPS, 200 FPS, 240 FPS

In-Camera

  • 3840 x 2160 (UHD) at 29.97p, 25p, 23.98p (100Mbps, 4:2:0)
  • 1920 x 1080 (FHD) at 59.94p, 50p, 29.97p, 25p, 23.98p (50Mbps, 4:2:2)
  • 1960 x 1080 (FHD) at 100 FPS, 120 FPS (4:2:2, 10-bit)
  • 1960 x 1080 (FHD) at 200 FPS, 240 FPS (8 Second Burst, 4:2:2, 10-Bit)
  • Slow Motion Capable (Up to 960 FPS at Limited Resolutions)

Lens Compatibility: Sony E
ISO Range: 2000
Ports & I/O:

  • BNC (3G-SDI) Out
  • HDMI (Type A) Out
  • Micro USB (Type B)
  • 3-Pin XLR Terminals 1 and 2 (Line/Mic Selectable, 48V Phantom Power)
  • RJ45
  • 2.5mm Remote
  • 3.5mm Headphone
  • DC In
  • Multi-Interface Shoe
  • 1/4"-20 Accessory Mounting Points

Memory Card Compatibility: Dual UHS-I SD Card Slots (U3 Rating Required)
Monitor/LCD: 3.5" Articulating Touchscreen LCD
Dimensions: 4.5" Wide x 5.07" Tall x 6.8" Deep (Body Only)
Weight: 1.83 lbs (Body Only)
Additional Features:

  • 1/6-1/10000 (50i/24p) Shutter Speed
  • Built-In Linear Variable ND Filters (1/4-1/128)
  • WiFi/NFC/GPS

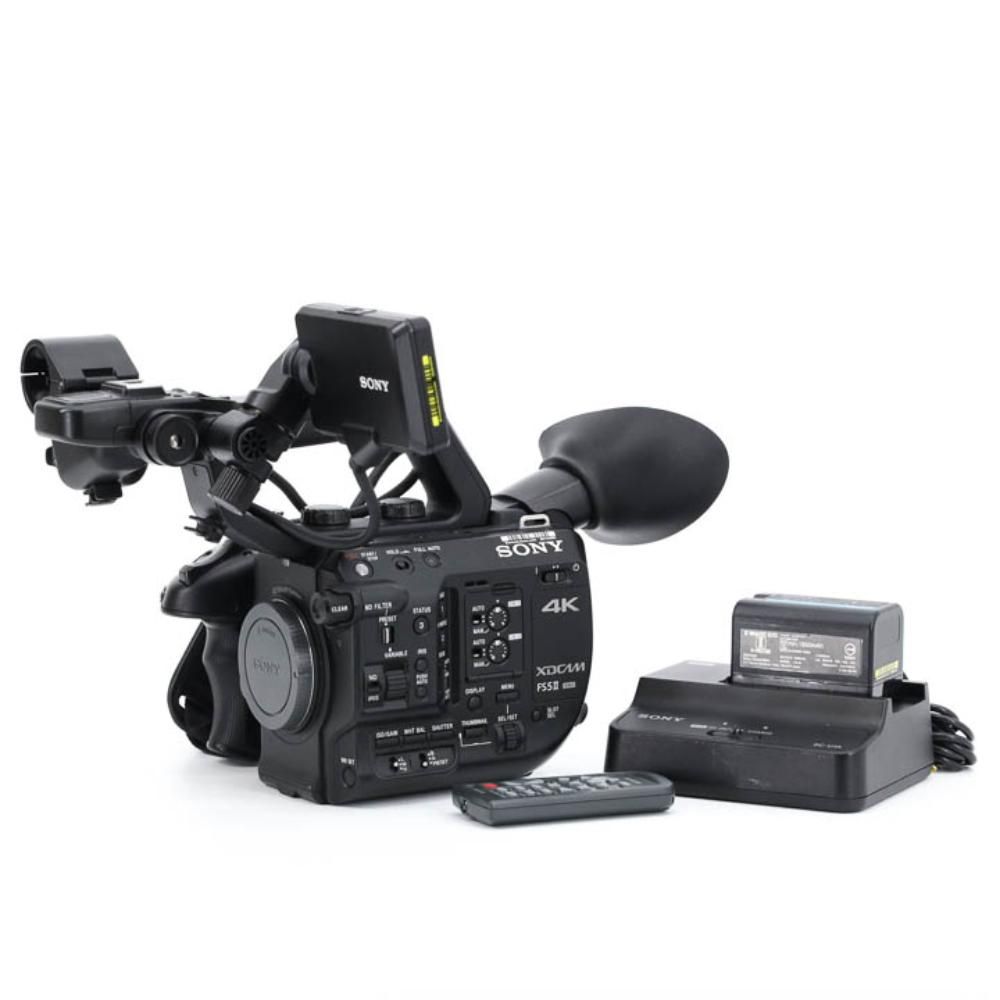

  • Sony PXW-FS5 II XDCAM Super 35 Camera System
  • IEC C7 Power Cable (2 Prong)
  • BP-U30 Battery
  • BC-U1A Charger
  • FS5 II Eye Cup
  • FS5 II Top Handle Assembly
  • FS5 II LCD Screen
  • FS5 II LCD Screen Mounting Clamp
  • FS5 II Grip Remote
  • RMT-845 Remote Commander
  • Carrying Case


  • The included BP-U30 battery runs for about 2 hours. This camera is also compatible with, but not limited to, the following batteries:


    Sony BP-U35
    Sony BP-U60
    Sony BP-U90
