SmallHD FOCUS 5in

  • SmallHD FOCUS
  • SmallHD FOCUS Bottom View
  • SmallHD FOCUS Back View
  • SmallHD FOCUS Side View
  • SmallHD FOCUS in Case View
  • SmallHD FOCUS Screen View


SmallHD FOCUS 5in

  • Supports UHD 4K at 23.98, 29.97, 30
  • Includes NP-F750 Battery & Tilt Arm
  • For Portable Setups
Rental Dates
$54.007 Day Rental
Renting gear is easy
1Select Dates
  • Real-time inventory
  • Low or no deposit
2Gear Arrives
  • Free 2-day shipping*
  • Ship or Pickup
  • The top gear
  • Rent from 1-90 days
4Easy Returns
  • Repack in same box
  • We provide return label


The SmallHD FOCUS is a portable 5" monitor for use with smaller DSLR and mirrorless systems. It has a bright, sharp touchscreen display that connects to your camera with Micro HDMI and is powered by an included NP-F750 battery. Take advantage of various monitoring tools while recording, including:

  • Waveform
  • False Color
  • Vectorscope
  • Focus Peaking
  • Frame Guides
  • Anamorphic De-Squeeze
  • Zebra
  • Histogram

This monitor supports UHD 4K and can load your custom LUTs over usb or via the SD card slot (cards not included). Conveniently mount this monitor right on your camera using the included tilt arm. This monitor is great for on-the-go, portable setups.

Supported Resolutions:

  • UHD 4K at 23.98, 29.97, 30 (8, 10, 12-Bit)
  • 1080p Up to 60 (8, 10, 12-Bit)
  • 1080i120, 720p120, 576p200, 480p240

Ports & I/O: Micro HDMI (Type D) In, Micro USB, 3.5mm Headphone
Screen Resolution: 1280 x 720, 5" Touchscreen
Video Aspect Ratio: Native - 16:9
Memory Compatibility: SD (for Loading LUTS, Cards Not Included)
Dimensions: 0.75" x 3.3" x 5.25"
Weight: 6.1 oz

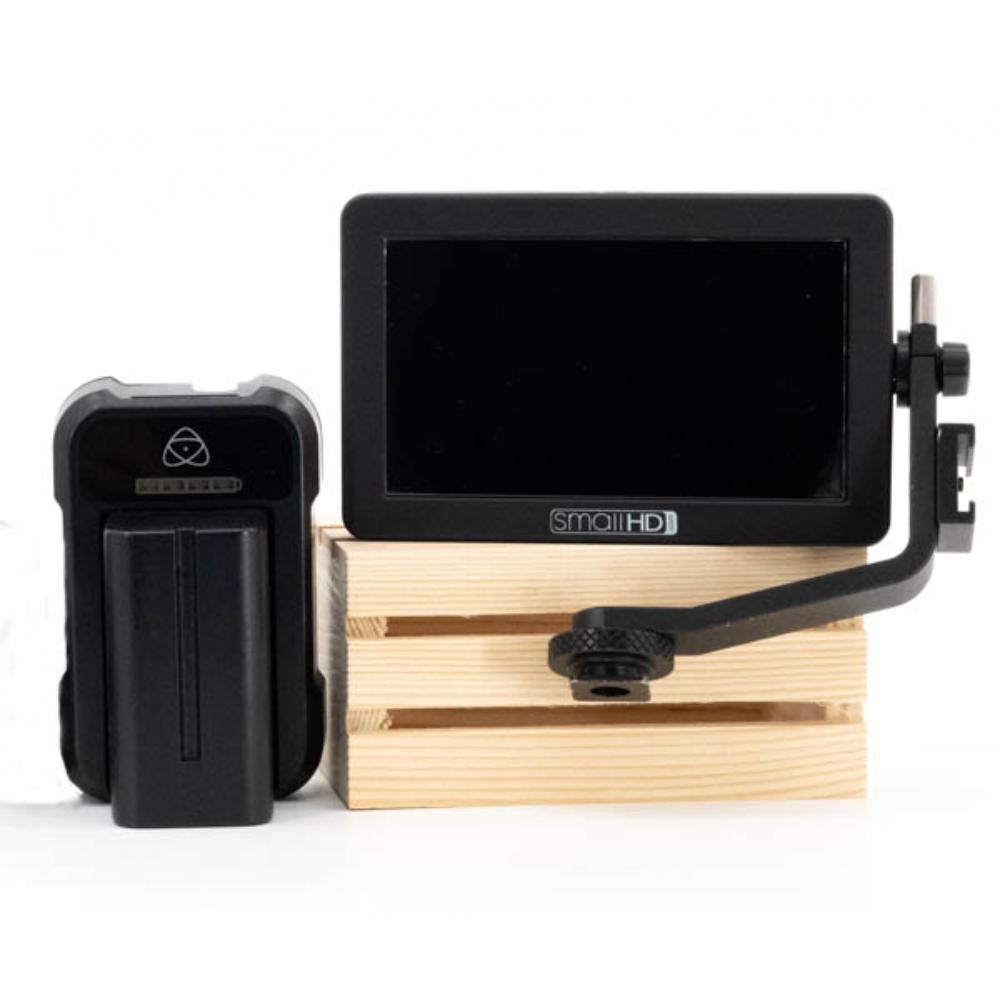

  • SmallHD FOCUS 5" HDMI On-Camera Monitor
  • SmallHD FOCUS OLED Tilt Arm Mount
  • Atomos NP-F750 Battery
  • Atomos 2A Fast Battery Charger
  • 1' Micro HDMI-Mini HDMI Cable
  • 1' Micro HDMI-Micro HDMI Cable
  • 2' Micro HDMI-HDMI Cable
  • UltraClear Screen Protector
  • Carrying Case

There is no manual for this product
