SmallHD 702/Teradek Bolt 750

  • SmallHD 702/Teradek Bolt 750
  • SmallHD 702 Teradek Bolt 4K 750 Accessories
  • SmallHD 702 Teradek Bolt 4K 750 RX Module Back View
  • SmallHD 702 Teradek Bolt 4K 750 RX Module Top View
  • SmallHD 702 Teradek Bolt 4K 750 Transmitter

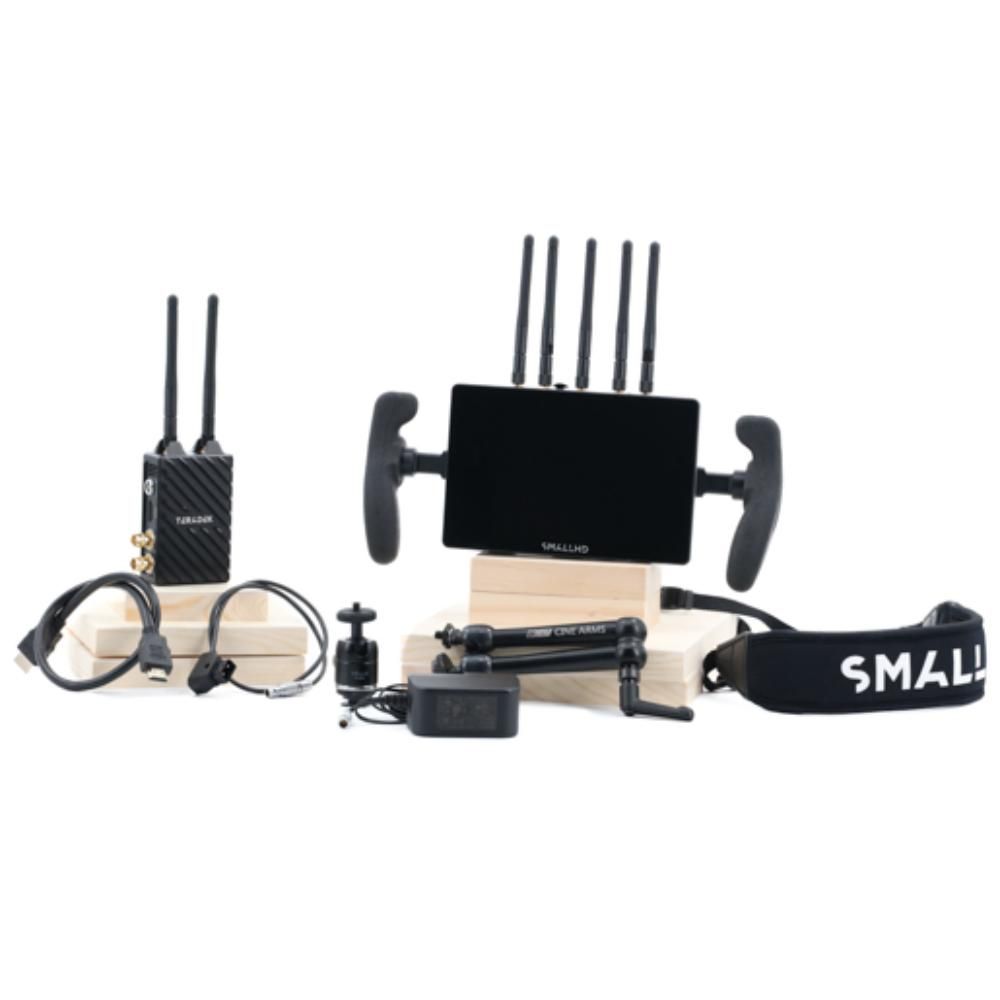

  • SmallHD 702 Teradek Bolt 4K 750 Kit
  • SmallHD 702 Teradek Bolt 4K 750 RX Module Bottom View

SmallHD 702/Teradek Bolt 750

  • Includes 702 Monitor, Bolt 4K LT 750 RX Module, Bolt 4K LT 750 Transmitter, V-Mount Plate
  • Wireless Transmission Up to 750'
Rental Dates
$330.00 7 Days Rental
Renting gear is easy
1Select Dates
  • Real-time inventory
  • Low or no deposit
2Gear Arrives
  • Free 2-day shipping*
  • Ship or Pickup
3Shoot
  • The top gear
  • Rent from 1-90 days
4Easy Returns
  • Repack in same box
  • We provide return labels
Overview

The SmallHD 702/Teradek Bolt 750 is a kit that allows you to monitor your production wirelessly from up to 750' away (with line of sight). The RX module attaches to the back of the monitor and a V-mount battery (batteries not included) mounts to the back of the module and powers both it and the monitor. The RX module can wirelessly receive up to 4K30p with 10-bit 4:2:2 HDR support and outputs over HDMI. The RX module can receive transmissions from any Bolt 4K-series transmitter, but a 4K LT 750 transmitter is included. The transmitter can transmit to up to 6 receivers and has built-in AES-256 encryption with RSA 1024 key pairing to protect your footage. Here are a few other key points about this set:

  • 1920 x 1200 resolution touchscreen monitor offers 10-bit processing (displays in 8-bit) and is equipped with SDI and HDMI I/O as well as a headphone jack for monitoring audio.
  • Reliable signal reception over 13x 40 MHz frequencies.
  • This set uses the Bolt 4K, which is the first 4K HDR wireless video system to provide uncompressed, zero-latency transmission.
  • Remotely manage and monitor every parameter of the Bolt 4K using the Bolt App.
  • This set supports the transmission of timecode and start/stop triggers from your camera.
  • Enjoy advanced monitoring features, including waveform, custom LUTS, anamorphic de-squeeze, and more.

With ergonomic side handles, a V-mount plate, and an intuitive UI, the SmallHD 702/Teradek Bolt 750 is a great option for field monitoring for productions of any size.

Monitor Dimensions/Weight: 7.09 x 4.67 x 1.29", 1.2 lbs
Transmitter Dimensions/Weight: 4.1 x 2.4 x 1.3", 7.3 oz
Receiver Dimensions/Weight: 4.8 x 3.7 x 1.06", 0.64 lbs
Monitor Format Support:

SDI (10-Bit 4:2:2 YCC)

  • 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 FPS
  • 1080PsF: 30, 29.97, 25, 24, 23.98 FPS
  • 1080i: 120, 119.88, 100, 60, 59.94, 50
  • 720p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98

HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC)

  • 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 FPS
  • 720p: 120, 119.88, 100, 60, 59.94, 50 FPS
  • 576p: 200, 100, 50 FPS

Teradek Bolt 4K 750 Format Support:

SDI (10-Bit 4:2:2 YCC)

  • 1080p: 60,59.94, 50, 30, 29.97, 25, 24, 23.98 FPS
  • 1080PsF: 30, 29.97, 25, 24, 23.98 FPS
  • 1080i/720p: 60, 59.94, 50 FPS

HDMI (10-Bit 4:4:4 RGB)

  • UHD 4K: 30, 29.97, 25, 24, 23.98 FPS
  • 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 FPS
  • 1080PsF: 30, 29.97, 25, 24, 23.98 FPS
  • 1080i/720p: 60, 59.94, 50 FPS

Wireless Range: 750' (Line of Sight)
Frequency Range: 5.19-5.23 GHz/5.75-5.79 GHz (Non-DFS), 5.27-5.67 (DFS)
Audio Format: 2-Channel 24-Bit 48 kHz LPCM Audio
Additional Features:

  • 13 Channels (40 MHz), 25 Channels (20 MHz)
  • 1920 x 1200 Monitor Display, 1000:1 Contrast

Ports & I/O:

Transmitter

  • HDMI In
  • 12G-SDI In
  • 12G-SDI Loop Out
  • Micro usb (Type B)
  • 2-Pin LEMO
  • 1/4"-20 Mount Port
  • M3 Mount Port

Receiver

  • HDMI Out
  • 12G-SDI
  • Micro usb (Type B)
  • 2-Pin LEMO
  • V-Mount Plate
  • 1/4"-20 Mount Port
  • 3/8-16 Mount Port

Monitor

  • HDMI In
  • HDMI Out
  • HD-SDI In/Out
  • HD-SDI Out
  • 3.5mm Headphone
  • 5.5mm Barrel (AC Power)
  • Micro usb (Type B) 2.0
  • (4) 1/4"-20 Mount Ports

  • SmallHD 702 Touch 7" On-Camera Monitor
  • Teradek Bolt 4K RX V-Mount Monitor Module
  • Teradek Bolt 4K LT 750 Wireless Transmitter
  • (7) Teradek Dual-Band Wireless Antennas
  • Monitor Neck Strap
  • Monitor Handles
  • 18" 2-Pin LEMO to P-Tap Cable
  • 6' 2-Pin LEMO to AC Adapter Cable
  • Micro Ball Head Shoe Mount
  • Noga Cine Arm
  • (1) 3' 12G-SDI 4K BNC to BNC Cable
  • (1) 3' HDMI to HDMI Cable
  • (1) 3' Mini HDMI to HDMI Cable
  • (1) 3' Micro HDMI to HDMI Cable
  • (1) Right Angle HDMI to HDMI Adapter
  • (1) Right Angle Mini HDMI to HDMI Adapter
  • Carrying Case

  • Teradek Bolt 4K LT 750 manual
  • SmallHD 702 manual
  • V-Mount broadcast style batteries are required to power this kit and they are not included. A battery mounts to the V-Mount plate on the Teradek RX Module (plate included) and provides pass-through power to the monitor. The Teradek transmitter would be powered off your camera's broadcast battery/power source.
