SMALLHD

SmallHD 1303

  • SmallHD 1303
  • SmallHD 1303 Back View
  • SmallHD 1303 Kit View

SMALLHD

SmallHD 1303

  • 13" 1920 x 1080 Studio Display
  • 3G-SDI & HDMI Inputs
  • Compatible with Gold Mount Broadcast Batteries
Rental Dates
$235.007 Day Rental
Renting gear is easy
1Select Dates
  • Real-time inventory
  • Low or no deposit
2Gear Arrives
  • Free 2-day shipping*
  • Ship or Pickup
3Shoot
  • The top gear
  • Rent from 1-90 days
4Easy Returns
  • Repack in same box
  • We provide return labels

Overview

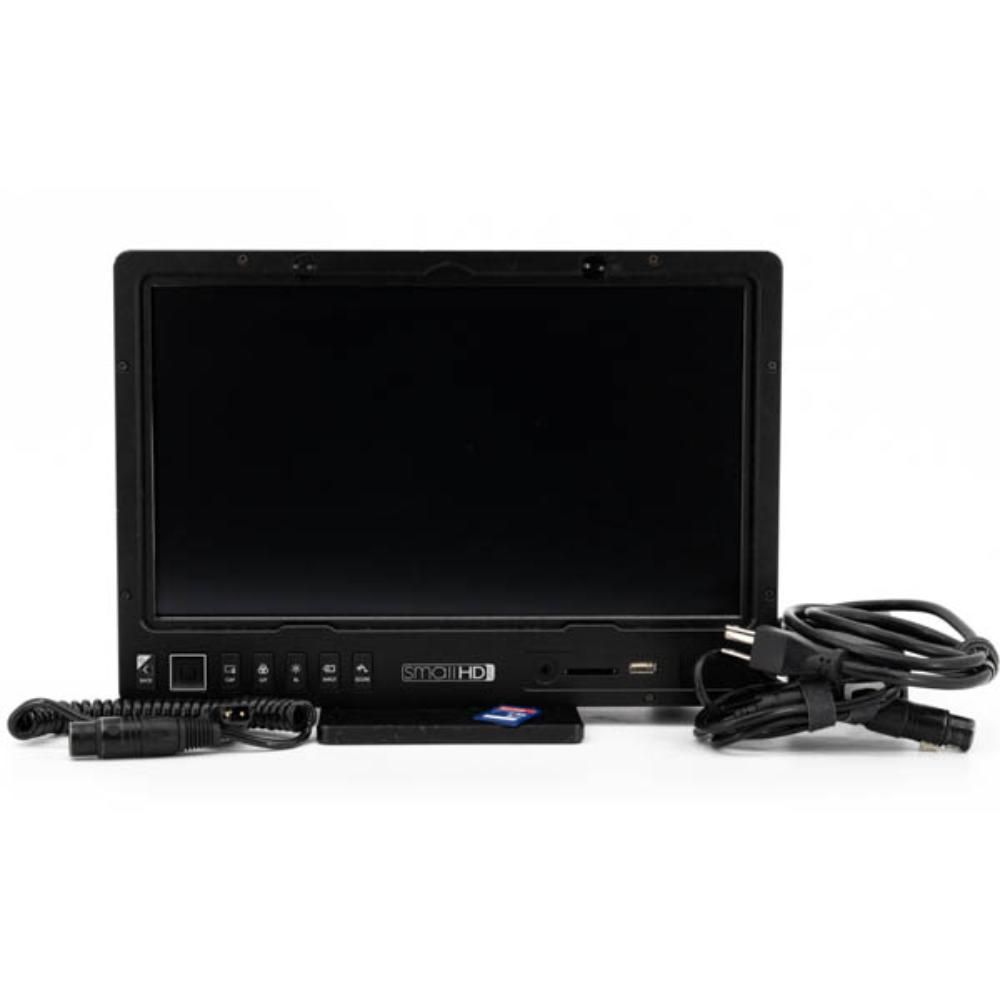

The SmallHD 1303 is a 13" studio monitor that is capable of displaying razor-sharp HD or SD signals with dual viewing and low latency. The 1303 performs well in bright environments and allows you to see your focus pulls even when combating glare and sunlight. A joystick makes navigation intuitive and allows you to easily access key tools, including focusing aids.

Keeping your imagery consistent with post-production is made easier thanks to the 1303's ColorFlow feature, which allows you to import 3D LUTS and display treated footage right next to untreated footage to better gauge exposure. Separate LUT-treated images can be sent downstream over SDI or HDMI to different devices so that crew members or clients can see their options. A small-capacity SD card is included for storing LUT information for post-production reference.

Maintain complete portability with the included Gold Mount battery plate and power certain accessories directly off the 12V LEMO port or one of the three usb ports (maximum draw of 0.5 amps per port). Optionally, you can use the included AC power supply instead of broadcast batteries (which are not included). It has a rugged build quality so that you can confidently take it out into the field and is further protected by a thick 3mm screen guard. The SmallHD 1303 is ideal for any video production set.


Supported Resolutions:

​​​​​​​SDI, 10-Bit 4:2:2

  • 1080p Up to 60 FPS
  • 1080PsF Up to 30 FPS
  • 1080i Up to 119.88 FPS​​​​​​​

​​​​​​​​​​​​​​​​​​​​​HDMI, 8-Bit 4:4:4

  • 1080p Up to 60 FPS
  • 1080PsF Up to 30 FPS
  • 1080i Up to 120 FPS
  • 720p Up to 120 FPS
  • 576p Up to 100 FPS
  • 480p Up to 120 FPS

​​​​​​​​​​​​​​​​​​​​​Ports & I/O:

  • 2 x 3G-SDI In
  • 2 x 3G-SDI Out
  • HDMI In
  • HDMI Out
  • 2-Pin LEMO
  • 3 x USB 2.0

​​​​​​​​​​​​​​Screen Resolution: 1920 x 1080, 13" LCD
Video Aspect Ratio: Native - 16:9
Memory Compatibility: SD (For Loading LUTS, Small-Capacity Card Included)
Dimensions: 13 x 9 x 2.9"
Weight: 8 lbs


  • SmallHD 1303 13" Studio Production Monitor
  • Gold Mount Battery Bracket (Batteries Not Included)
  • Coiled D-Tap to XLR Cable
  • 5" Cheese Plate
  • Table Stand
  • C-stand Tie-Down Knob
  • Screen Protector
  • AC Power Supply
  • Quick Release Hot Shoe Rail Mount
  • Small Capacity SD Card (For Post-Production Stills/LUT Reference)
  • Carrying Case
