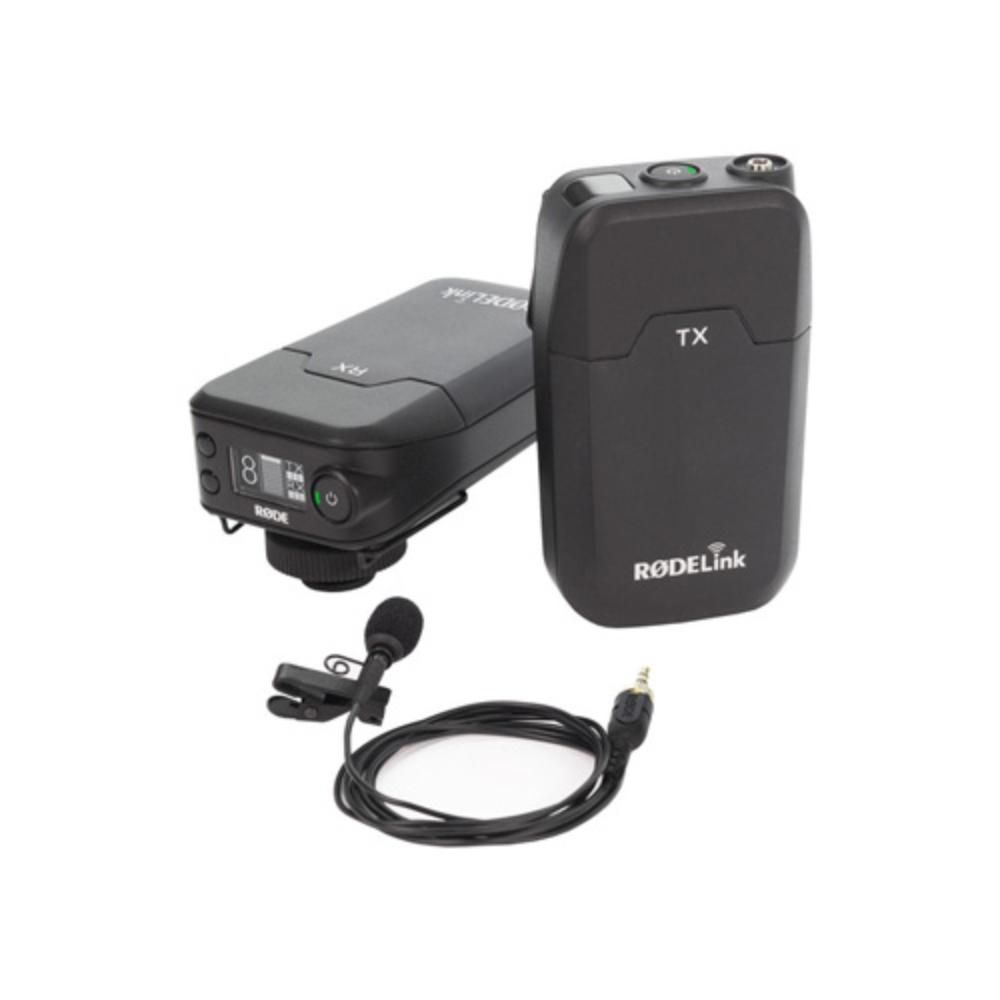

Rode RodeLink Wireless Filmmaker Kit

RODE

Rode RodeLink Wireless Filmmaker Kit

Plug & Play Setup
Includes Transmitter, Receiver & Lav
2.4 GHz Spectrum
Powered by AA Batteries

Rental Dates

Pickup or Delivery

$45.00 7 Day Rental

Renting gear is easy

1Select Dates

Real-time inventory
Low or no deposit

2Gear Arrives

Free 2-day shipping*
Ship or Pickup

3Shoot

The top gear
Rent from 1-90 days

4Easy Returns

Repack in same box
We provide return label

Overview

The Rode RodeLink Wireless Filmmaker Kit provides everything you need to start shooting with wireless audio, including a receiver, transmitter, and broadcast-grade lavalier microphone. To operate, simply choose your channel to pair the receiver and transmitter. Using a Series II 2.4GHz digital transmission with 128-bit encryption, the RodeLink Wireless Filmmaker Kit is able to constantly monitor and hop between frequencies to maintain the strongest possible signal level. The omnidirectional microphone can be clipped onto your subject and the audio sent to the RX-CAM receiver via the TX-BELT transmitter. It picks up frequencies from 60 Hz-18 kHz, so whether your subject's voice is high or deep the audio will be recorded with broadcast quality. The mic connects to the transmitter via a 3.5mm TRS socket (dual mono output see Specs tab for more info) with a locking thread for added connection security. The discreet, internal antenna sends signal to the receiver up to 328' away (in ideal conditions, see our Notes tab for more). Your subject can easily hide the transmitter under their clothing or comfortably carry it on a belt. The receiver (which has a 3.5mm TRS locking jack socket) sends audio directly to your camera or recording device (external recording devices are rentable separately). It can be conveniently attached to your camera's hot shoe and it features 3 level positions so that you can easily adjust the signal level going into your camera/recorder. If you'd like to use this lav kit with an XLR cable, a Rode VXLR Mono Mini-Jack (3.5mm) to XLR Converter is provided. Both the transmitter and receiver are powered for up to 10 hours with AA batteries or continuously via Micro-usb with the battery pack of your choice (batteries not included). The Rode RodeLink Wireless Filmmaker Kit is good for those looking for an intro wireless audio kit but it is also an ideal no-fuss solution for experienced videographers.

Specs

Transmitter/Receiver:

Transmission Type: Series II 2.4 GHz Fixed Frequency
Dynamic Range: 112 dB
Signal Range: 328'
Frequency Range:35 Hz-22 kHz
Maximum Output Level: 1 Vrms (2.8 V, Peak to Peak)
Maximum Input Sound Level: 1 Vrms (2.8 V, Peak to Peak)
4 ms Maximum Latency
Dual Mono Output (Not Stereo)
3.5mm (1/8") Jack In and Out
Power Source: AA Batteries (2 for Receiver, 2 for Transmitter) or Micro-usb
300 ohms Output Impedance
10 kOhms Input Impedance
OLED Display (Receiver)

Microphone:
- Omnidirectional
- Frequency Response: 60 Hz to 18 kHz
- Fixed 3.5mm TRS Connector with Locking Thread
- Cable Length: 4.5'

Rental Includes

(1) RX-CAM Wireless Receiver
(1) TX-BELT Wireless Transmitter
(1) Lavalier Microphone
LAV-CLIP Clip Mount
MINIFUR-LAV Synthetic "Fur" Windshield
WS-LAV Pop Filter
VXLR Mono Mini-Jack (3.5mm) to XLR Converter
Captive TRS Cable
SKB iSeries RodeLink Wireless case

Rental Notes

There are no native XLR ports on this system. You can optionally use a 3.5mm-to-XLR adapter, which is included.
You can use any 3.5mm TRS mic input with this transmitter/receiver set if you choose not to use the included lavalier mic but other mic types are not included. Your microphone-of-choice must be self-powered. This transmitter/receiver unit does not provide phantom power. It does provide 4V plug-in power supplied to the included mic. This low-voltage plug-in power should not be confused with true 48V phantom.
(2) AA batteries for each the transmitter and receiver are required for operation and may not be included. Plan accordingly. Optionally, this system can be powered continuously via Micro-usb with a battery source of your choice. A usb battery source is not included. Rode recommends using Energizer Ultimate lithium batteries (battery life is approximately 10 hours).
You cannot run 2 lavalier mics off this system. You'd need to rent a whole second set to run a second lav mic.
This system operates in the 2.4GHz frequency spectrum, which is shared with wireless transmission devices such as WiFi networks and Bluetooth devices. The more 2.4GHz devices that are running in the same location as this system, the more congested this frequency spectrum will be, cutting down the signal strength and overall operating range for all 2.4GHz devices. In a very busy 2.4GHz environment, you may be unable to maintain the maximum operating range.
