Rhino Arc II Carbon Fiber 24in Slider

Rhino Arc II Carbon Fiber 24in Slider

Includes 24" Carbon Fiber Slider, Arc II Motorized Pan/Tilt Head, Slider Motor, Shutter Cables
15 lb Payload
Camera Carriage with 3/8"-16 Mount & Integrated Brake

Rental Dates

Pickup or Delivery

$280.00 7 Day Rental

Renting gear is easy

1Select Dates

Real-time inventory
Low or no deposit

2Gear Arrives

Free 2-day shipping*
Ship or Pickup

3Shoot

The top gear
Rent from 1-90 days

4Easy Returns

Repack in same box
We provide return label

Overview

Rhino has released a statement warning of battery damage when batteries are left charging for 12+ hours. Until a fix is released, please do not leave batteries charging!

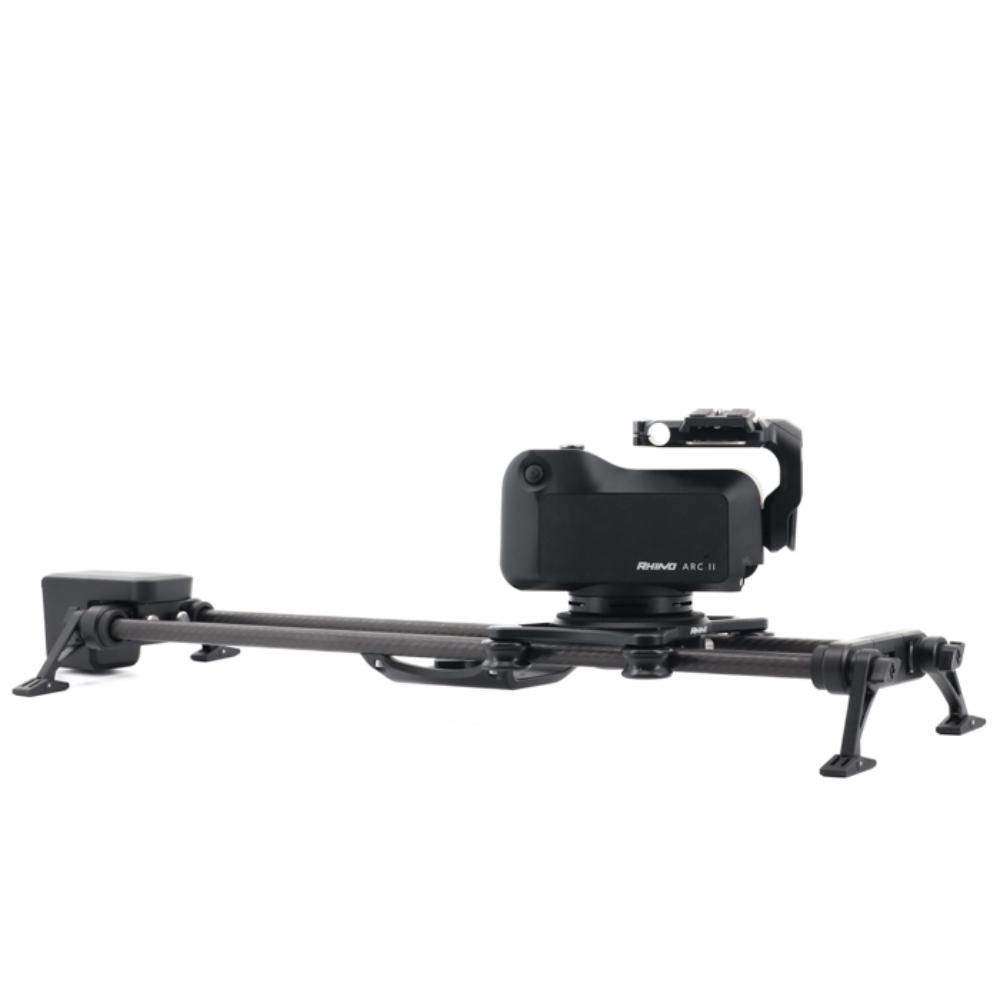

The Rhino Arc II Carbon Fiber 24" Slider comes with not only a 24" slider but also the Arc II motorized pan/tilt head, a high speed motor, a leveling plate, and all necessary shutter cables to go with most camera models. Together, these items give you dynamic 3-axis motion to take your production to the next level. Please note that a Rhino Focus is not included.

With the Arc II's Automatic Face Tracking, you can easily operate this system alone for vlogging. The Arc II can be used in place of a fluid head and can be controlled directly on the unit itself or via the Arc II iOS app. The slider is rigid with all-terrain feet and a 20 lb payload (note, however, that the Arc II's payload is 15 lbs). There is a convenient tripod quick mount plate so you can easily position the slider onto your tripod of choice (tripod not included). The linear motor plugs into the Arc II and allows motion up to 5" a second. The Rhino Arc II Carbon Fiber 24" Slider is ideal for creating b-roll footage, conducting interviews, doing time-lapses, and for any other creative project that requires motion.

Specs

Load Capacity: 20 lbs (15 lbs for Arc)
Material: Carbon Fiber
Rail Length: 24"
Weight: 4 lbs (Slider Only)
Additional Features:

Total Travel Distance: 17.75"
5/8" Diameter Rails
Carriage with 1/4"-20, 3/8"-16 Threads
Integrated Carriage Brake
Folding All-Terrain Feet
Central Tripod Quick Mount
High Speed Motor Supports 5" Per Second, 5 lb Payload at 20°

Rental Includes

24" Rhino Carbon Fiber Slider
Camera Carriage
2 x Carbon Slider Rails
24" Belt
2 x End Caps with All-Terrain Feet
High Speed Slider Motor (5"/Second)
ARC II Motorized Pan/Tilt Head with Quick Release Plate
Arc II Charger
Tilt Platform/Leveling Plate
39" Cat5 Motor Cable (Connects Arc to Motor)
Canon RS80N3 Shutter Cable
Canon RS60E3 Shutter Cable
Nikon N1/MC30 Shutter Cable
Nikon N3-MC-DC2 Shutter Cable
Panasonic RSL1 Shutter Cable
Sony S2 Shutter Cable
Fuji RR-90 Shutter Cable
Carrying Case

Rental Notes

Rhino has released a statement warning of battery damage when batteries are left charging for 12+ hours. Until a fix is released, please do not leave batteries charging!

This slider does not support vertical movement. For that, you would need the High Torque Motor which is not included. Only the High Speed motor is included. The slider's load capacity with the motor is 30 lbs horizontally and 5 lbs at 20°. For either motor, you must pair it with the Arc II since the Arc II powers the motor. The motor will not run on its own. The High Speed Motor is compatible with the older EVO sliders and motion controllers but the High Torque Motor is not.
If you're doing macro work, we recommend the using the High Torque Motor as it emits less vibration and moves slower.
The Arc II has a load capacity of 15 lbs. It supports 180° of total travel, 90° each direction from center (level) with an 5 lb setup or less. For setups over 5 lbs, the Arc II supports 90° of total travel, 45° each direction from center (level). Arc II must be level for the pan axis to rotate properly. You must use the included leveling plate between the slider and the Arc II.
This slider comes with all-terrain feet and a carriage with a 3/8"-16 port in the center and several 1/4"-20 ports around it. It also has one 3/8"-16 mount thread and one 1/3"20 mount thread at each end. A tripod or stand must be used if you don't want to use the slider on the ground or propped up by other means. There is 1 central tripod quick mount on this slider. To use a C stand for support, you'll need a baby pin (male) 3/8" adapter, which is not included. A tripod head for connecting your camera to the carriage is also not included. The Arc II, which connects to the carriage, is included as well as a leveling plate.
The Rhino Arc II has roughly 4-6 hours of battery life.
To control the Arc II, you can either download an iOS app or use the built-in user interface/joysticks.
A Rhino Focus is not included.
