RED

RED RAVEN 4.5K Dragon

  • RED RAVEN 4.5K Dragon
  • RED RAVEN Back
  • RED RAVEN Kit

RED

RED RAVEN 4.5K Dragon

  • RED DRAGON 9.9 Megapixel CMOS Sensor
  • Compatible with Canon EF Lenses
  • Compatible with V-Mount Batteries
Rental Dates
$605.007 Days Rental
Renting gear is easy
1Select Dates
  • Real-time inventory
  • Low or no deposit
2Gear Arrives
  • Free 2-day shipping*
  • Ship or Pickup
3Shoot
  • The top gear
  • Rent from 1-90 days
4Easy Returns
  • Repack in same box
  • We provide return labels

Overview

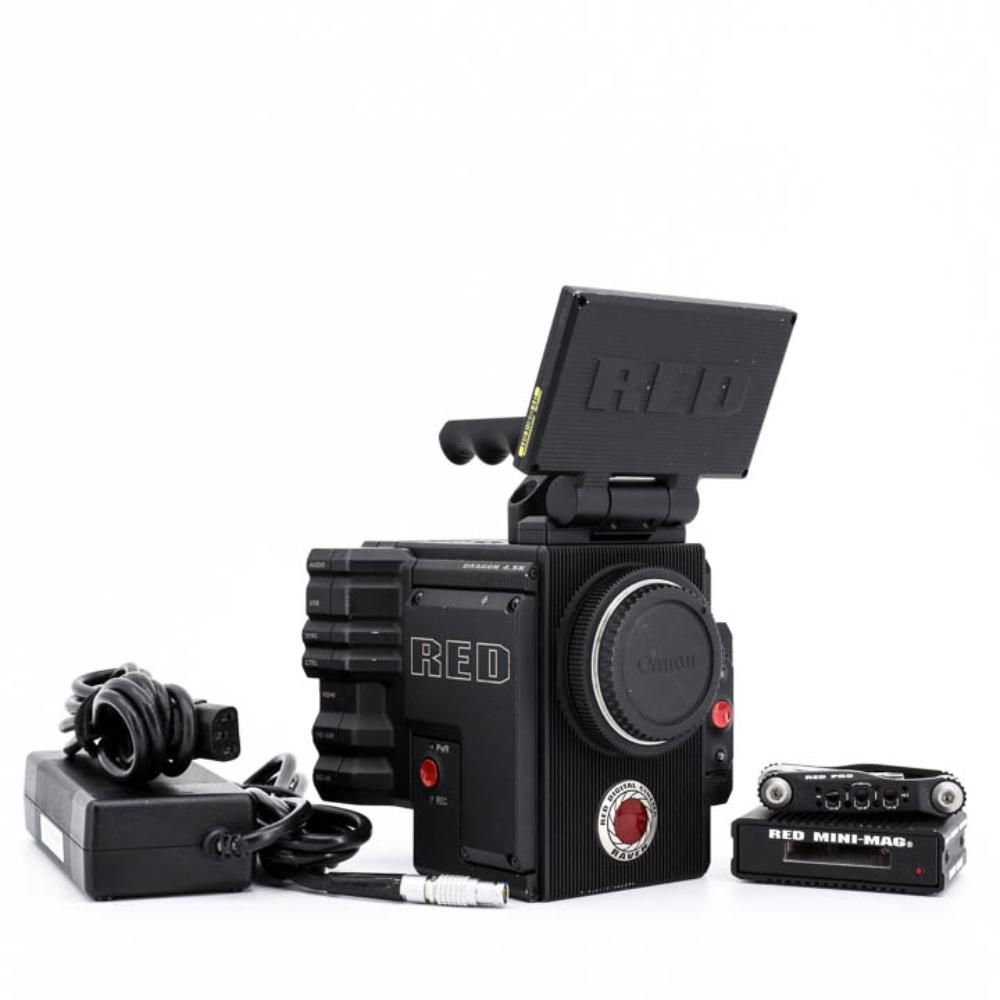

The RED RAVEN 4.5K Dragon is a professional cinema camera that captures high resolution motion and stills in full frame 4.5K at up to 120 FPS or full frame 2K at up to 240 FPS. It is part of RED's DSMC2 line, which features simultaneous REDCODE RAW and Apple ProRes or Avid DNxHR/HD recording, integrated smart connectors for cable-free peripheral attachment, and faster read/write speeds for lower compression all in a smaller and lightweight form factor compared to prior models. The RED RAVEN is uniquely suited for hand-held, high speed shooting as well as gimbal and drone applications.

With this setup, you receive more than just the brain you get the input/output expander, a 4.7" LCD, a MINI-MAG reader, the SIDEWINDER and more, providing you with the full array of tools needed to work on this system. This RED RAVEN is compatible with Canon EF mount lenses. Please note that you will need to pick up some MINI-MAG SSDs. The RED RAVEN 4.5K Dragon is an ideal professional solution for narrative films and documentaries.


Sensor: RED DRAGON 9.9MP CMOS
File Size/Format: 4608 x 2160, R3D
Video Resolutions/Framerates:

REDCODE RAW

  • 4.5K Full Format (4608 x 2160), 120 FPS
  • 4.5K 2.4:1 (4608 x 1944), 120 FPS
  • 4K Full Format (4096 x 2160), 120 FPS
  • 4K 2.4:1 (4096 x 1728), 150 FPS
  • 3K Full Format (3072 x 1620), 150 FPS
  • 3K 2.4:1 (3072 x 1296), 200 FPS
  • 2K Full Format (2048 x 1080), 240 FPS
  • 2K 2.4:1 (2048 x 864), 300 FPS

Lens Compatibility: Canon EF Mount
Memory Card Compatibility: 1 x RED MINI-MAG Slot
Ports & I/O: 3G-SDI (HD-SDI), HDMI with Included DSMC2 Expander Module
Weight: 3.5 lbs
Additional Features:

  • 16.5+ Stops Dynamic Range
  • Integrated Dual Channel Digital Mono Microphones, Uncompressed, 24-bit 48 kHz
  • Electronic Rolling Shutter
  • 1/4"-20 and 3/8"-16 Mounting Threads at Bottom


  • RED DRAGON Brain
  • DSMC2 V-LOCK I/O Expander
  • RED Station
  • AC Adapter for RED Station
  • RED Station USB to DC Power Cable
  • USB Cable
  • AC Power Adapter and Cable
  • DSMC2 RED Touch 4.7" LCD
  • DSMC2 Universal Handle
  • RED SIDEWINDER
  • Carrying Case


  • This camera is not compatible with the REDBomb EVF, the REDVolt batteries, and is not compatible with REDMAG SSDs. This system uses the newer RED MINI-MAG SSDs.
  • Operates on V-Mount batteries (not included) through the included DSMC2 V-Lock I/O Expander.
