RED GEMINI 5K PL Mount  Rental

  • RED GEMINI 5K PL Mount


RED GEMINI 5K PL Mount  Rental

  • RED GEMINI 15.4 Megapixel Super 35 CMOS Sensor
  • PL Mount Version
  • Compatible with V-Mount Batteries
  • RED MINI-MAG Required
Rental Dates
$1,187.007 Day Rental
Renting gear is easy
1Select Dates
  • Real-time inventory
  • Low or no deposit
2Gear Arrives
  • Free standard shipping ($149+)
  • Ship or pick up
  • Use top gear
  • Rent from 1-90 days
4Easy Returns
  • Repack in same box
  • We provide return label

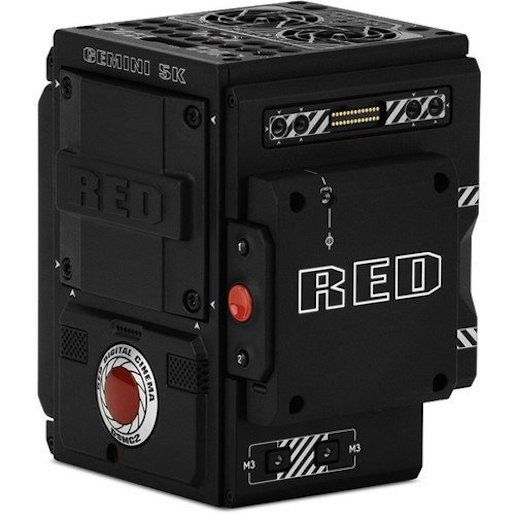

The RED GEMINI 5K PL Mount (2018 DSMC2 Unified Version) is a professional cinema camera system that features RED's dual ISO technology, which offers a standard and a Low Light mode for the greatest shooting flexibility resulting in clean, noise-free footage. This sensors 30.72mm x 18mm dimensions give you an increased field of view at 2K and 4K and allows for greater anamorphic lens coverage than with the HELIUM or DRAGON sensor cameras. This camera is part of RED's DSMC2 line, which features simultaneous REDCODE RAW and Apple ProRes or Avid DNxHR/HD recording with lightning fast data rates up to 275 MB/s all in a smaller and lightweight form factor compared to prior models. RED's proprietary REDCODE RAW file format is structured for non-destructive editing and you can seamlessly pull detailed stills from footage.

With this setup, you receive more than just the brain you get the input/output expander, a large 7" LCD, a MINI-MAG reader, and the SIDEWINDER, providing you with the full array of tools needed to work on this system. You will also need to pick up some MINI-MAG SSDs. The RED GEMINI is an ideal professional solution for narrative films and documentaries.

Sensor: RED Gemini 35.61MP Super 35 CMOS
File Size/Format: 5120 x 3000, R3D
Video Resolutions/Framerates:


  • 5K Full Format (5120 x 3000), 75 FPS
  • 5K 2.4:1 (5120 x 2160), 120 FPS
  • 4K Full Format (4096 x 2160), 120 FPS
  • 4K 2.4:1 (4096 x 1728), 150 FPS
  • 3K Full Format (3072 x 1620), 150 FPS
  • 3K 2.4:1 (3072 x 1296), 200 FPS
  • 2K Full Format (2048 x 1080), 240 FPS
  • 2K 2.4:1 (2048 x 864), 300 FPS

Lens Compatibility: PL Mount
Memory Card Compatibility: 1 x RED MINI-MAG Slot
Ports & I/O: 3G-SDI (HD-SDI), HDMI with Included DSMC2 Expander Modul
Weight: 3.35 lbs
Additional Features:

  • Integrated REDLINK WiFi Antenna
  • 16.5+ Stops Dynamic Range
  • 3D LUT Support
  • Electronic Rolling Shutter
  • Anamorphic Support
  • 1/4"-20 and 3/8"-16 Mounting Threads at Bottom

  • RED GEMINI 5K Brain with DSMC2 MG PL Mount 2.0
  • RED DSMC2 Standard OLPF
  • DSMC2 V-LOCK I/O Expander
  • DSMC2 RED Touch 7.0" LCD
  • RED Station
  • AC Adapter for RED Station
  • Wooden Camera Trigger Handle
  • USB Cable
  • RED Station USB to DC Power Cable
  • AC Power Adapter and Cable
  • Carrying Case

  • Optical Low-Pass Filter (OLPF) type for this camera is "standard", which is balanced for both light and dark environments.
  • This camera is not compatible with the REDBomb EVF, REDVolt batteries, or REDMAG SSDs. This system uses the newer RED MINI-MAG SSDs.
  • Operates on V-Mount batteries (not included) through the included DSMC2 V-Lock I/O Expander.

There is no manual for this product
