Panasonic XLR Microphone Adapter

  • Panasonic XLR Microphone Adapter
  • Panasonic XLR Microphone Adapter Front View

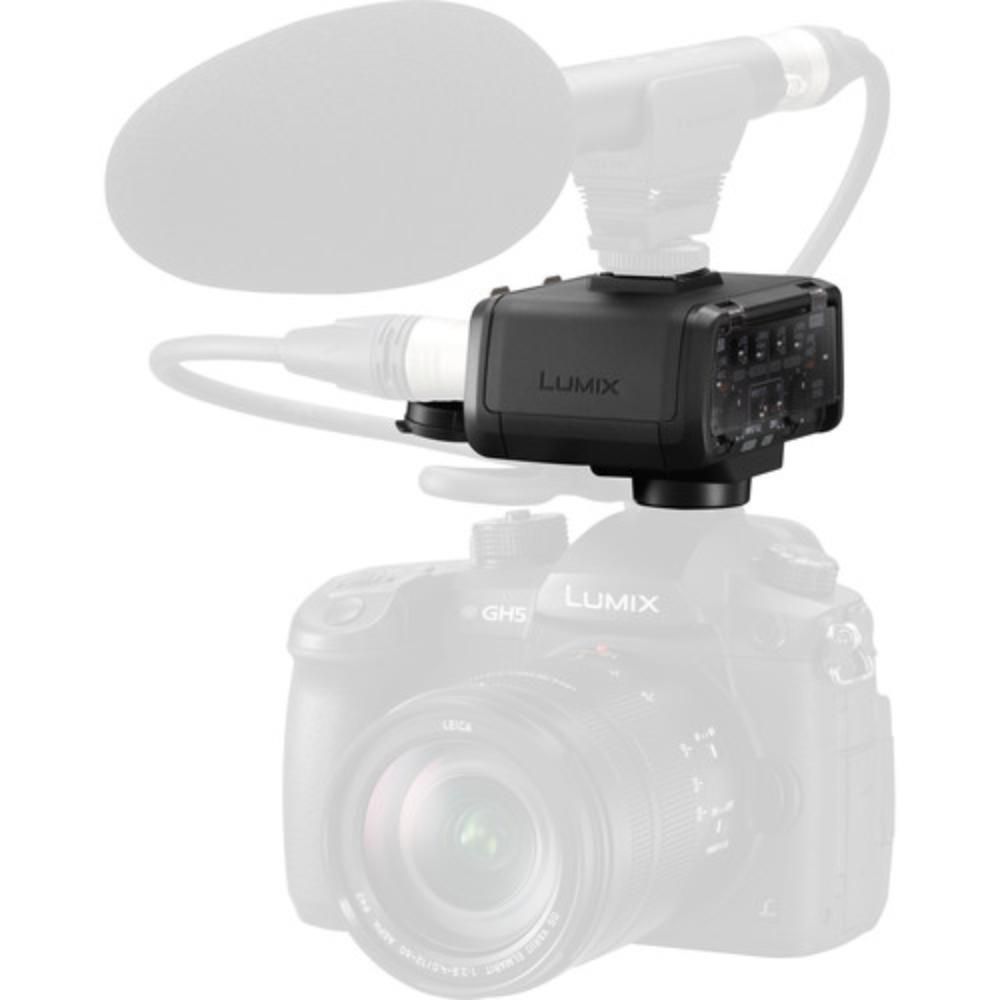

  • Panasonic XLR Microphone Adapter on Camera Example
  • Panasonic XLR Microphone Adapter Settings Closeup
  • Panasonic XLR Microphone Adapter XLR Closeup

Panasonic XLR Microphone Adapter

  • Hot Shoe Mic/Line Interface Unit
  • Compatible with GH5/GH5S/GH5 II/GH6, Lumix S1 Series
  • +48V Phantom Power
Rental Dates
$40.007 Days Rental
Renting gear is easy
1Select Dates
  • Real-time inventory
  • Low or no deposit
2Gear Arrives
  • Free 2-day shipping*
  • Ship or Pickup
3Shoot
  • The top gear
  • Rent from 1-90 days
4Easy Returns
  • Repack in same box
  • We provide return labels

Overview

The Panasonic XLR Microphone Adapter allows you to record professional audio to your GH5, GH5S, GH5 II, GH6, or S1 camera when paired with XLR microphones. You can record with one or two microphones or wireless microphone systems directly (mics not included). This means you don't have to use a separate audio recorder (so no having to sync your audio in post production) and you can record audio directly with the camera up to 96 kHz and 24-bit.


Please note that this is not a stand-alone audio recorder the recording is done with your camera, which will record sound directly to your video file. This is a mic/line interface unit that allows to you use XLR mics to get better sound than what you'd get with the in-camera mic.


While there are many benefits to using an external recorder, if you want to use XLR mics with your GH5/GH5S/GH5 II/GH6/S1 in a more simplified way, this adapter is for you. DC power is supplied by the camera via the hot shoe, making it especially easy to use. The Panasonic XLR Microphone Adapter is ideal for events, run-and-gun shooting, small-crew documentary sets, vlogging, and even just everyday shooting when better in-camera sound is extremely important.


  • Recording Bit Rate: 16-bit, 24-bit

  • Sampling Frequency: 48 kHz, 96 kHz

  • Mounting: Hot Shoe Only

  • Outputs: Dual 3-Pin XLR

  • Power: Via camera

  • Gain: 20 dB
  • Automatic Level Control
  • Low Cut Filters: 16 Hz, 160 Hz
  • Dimensions: 2.5" Wide x 2.4" Tall x 3.2" Deep
  • Weight: .4 lbs


  • Panasonic XLR Microphone Adapter


  • There is no off-camera mounting option for this adapter. It must be mounted on the hot shoe of your GH5/S1 Series camera.
  • Having this adapter on your camera body with microphones will likely make it too top-heavy for gimbals. Plan accordingly.
  • This is not an audio recorder the recording is done with your GH5/S1 camera, which will record sound directly to your video file. This is a mic/line interface unit that allows to you use XLR mics to get better sound than what you'd get with the in-camera mic.
  • Microphones are not included.
