PANASONIC

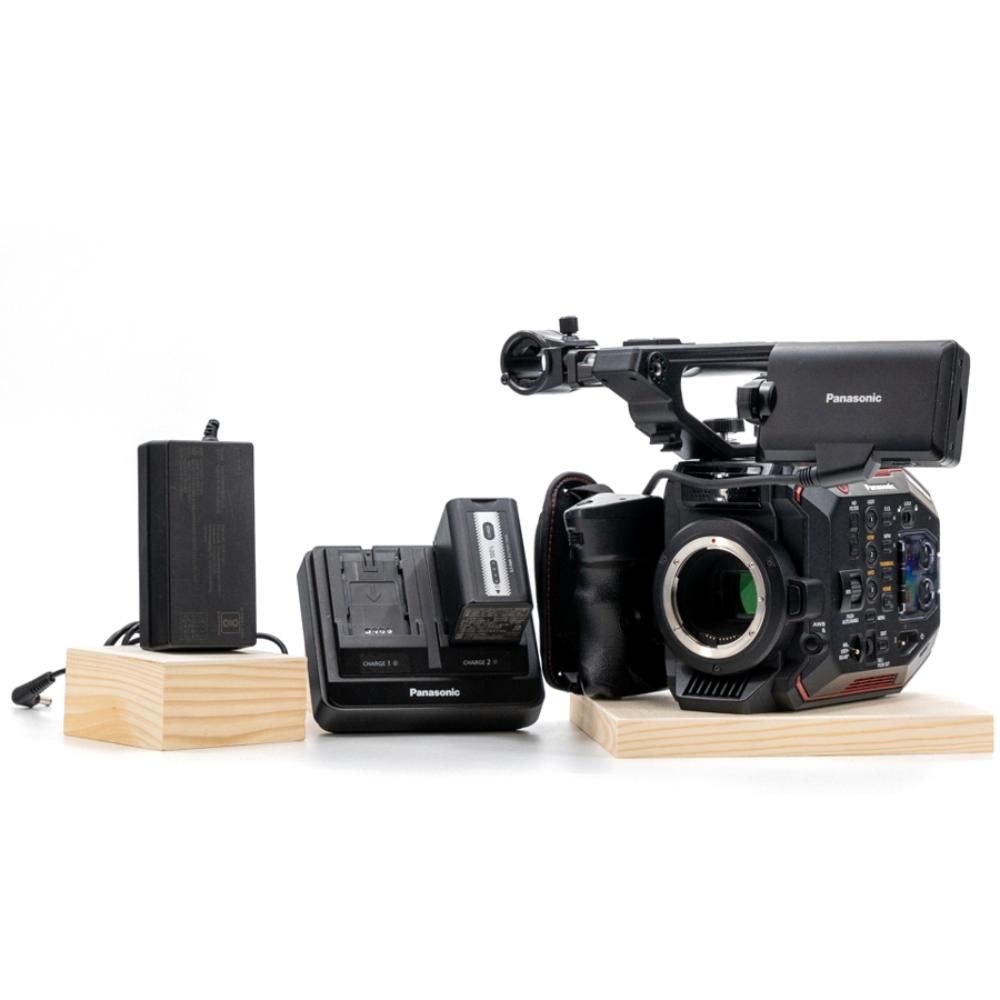

Panasonic EVA1 EF Mount

  • Panasonic EVA1 EF Mount
  • Panasonic EVA1 EF Mount Front Closeup
  • Panasonic EVA1 EF Mount Kit View
  • Panasonic EVA1 EF Mount Back View

PANASONIC

Panasonic EVA1 EF Mount

  • Super 35mm 5.7K Sensor
  • 10-Bit Raw Out via SDI, 4K60/2K240 to SD
  • Dual Native ISO
  • Requires 2 SD Cards
Rental Dates
$387.00 7 Day Rental
Renting gear is easy
1Select Dates
  • Real-time inventory
  • Low or no deposit
2Gear Arrives
  • Free 2-day shipping*
  • Ship or Pickup
3Shoot
  • The top gear
  • Rent from 1-90 days
4Easy Returns
  • Repack in same box
  • We provide return label
Overview

Special Note: All of our EVA1 cameras have been upgraded to the version 2.0 firmware, which includes ALL-Intra frame recording formats, raw output, time-lapse recording in both LongGOP and ALL-Intra, HD 4:2:2 interlaced formats, and remote operation capabilities with 3rd party wired controllers.

The Panasonic EVA (EF Mount) is perfectly positioned between the high-end Panasonic Varicam LT and the GH5 as a run-and-gun style system that's the best of both worlds. It weighs only 2.6 lbs and sports a relatively small form factor without sacrificing ports to accommodate important accessories (such as XLR for microphones). It features a newly-designed Super 35 sensor with 5.7K resolution. By starting at a higher native resolution, the 5.7K sensor yields a higher resolving image when down-sampled to 4K, UHD, 2K, or even 720p. It can shoot 4K up to 60 FPS and 2K up to 240 FPS (when cropped down to 4/3" mode). To get up to 240 FPS, the frame is slightly cropped to 4.5K, sampled in half to 2.2K, and then that 2.2K is oversampled to 2K or HD.

As with the VariCam cameras, the EVA1 is equipped with dual native ISO which allows more information to be extracted without image degradation. Additionally, V-Log/V-Gamut capture delivers high dynamic range and the colorimetry of the VariCam line is incorporated into this camera, too. Built-in stabilization and ND filters provide versatility as well as the 2 SD card ports which capture 4K directly in the camera. The Panasonic EVA1 combines portability and professionalism and is ideal for documentaries, news gathering, narratives, and other cinema projects.

Sensor: Super 35 MOS
Resolutions/Framerates:

SDI Out

  • Raw (10 Bit) 5760 x 3072 at 29.97p, 25p, 24p, 23.98p
  • Raw (10 Bit) 4096 x 2160 at 59.94p, 50p, 29.97p, 25p, 24p, 23.98p

HDMI Out

  • 4096 x 2160 (4K) at 59.94p, 50p, 29.97p, 25p, 24p, 23.98p (4:2:2 10-bit)

In-Camera

  • 4096 x 2160 (4K) at 29.97p, 25p, 24p, 23.98p (400Mbps, 4:2:2 10-bit ALL-Intra)
  • 4096 x 2160 (4K) at 29.97p, 25p, 24p, 23.98p (150Mbps, 4:2:2 10-bit LongGOP)
  • 3840 x 2160 (UHD) at 29.97p, 25p, 23.98p (400Mbps, 4:2:2 10-bit ALL-Intra)
  • 3840 x 2160 (UHD) at 29.97p, 25p, 23.98p (150Mbps, 4:2:2 10-bit LongGOP)
  • 2048 x 1080 (2K) at 59.94p, 50p (200Mbps, 4:2:2 10-bit ALL-Intra)
  • 2048 x 1080 (2K) at 29.97p, 24p, 25p, 23.98p (100Mbps, 4:2:2 10-bit ALL-Intra)
  • 2048 x 1080 (2K) at 59.94p, 50p (100Mbps, 4:2:2 10-bit LongGOP)
  • 2048 x 1080 (2K) at 29.97p, 24p, 25p, 23.98p (50Mbps, 4:2:2 10-bit LongGOP)
  • 1920 x 1080 (FHD) at 59.94p, 50p (200Mbps, 4:2:2 10-bit ALL-Intra)
  • 1920 x 1080 (FHD) at 29.97p, 24p, 25p, 23.98 (100Mbps, 4:2:2 10-bit ALL-Intra)
  • 1920 x 1080 (FHD) at 59.94p, 50p (100Mbps, 4:2:2 10-bit LongGOP)
  • 1920 x 1080 (FHD) at 29.97p, 25p, 23.98pp (50Mbps, 4:2:2 10-bit LongGOP)
  • Variable Frame Rates Up to 200Mbps for 2K/FHD from 1-120FPS (4:2:2 10-bit)

Special Note: SD cards with Video Class Speed of V60 required for 400Mbps recording or recording 2K/Full HD Variable Frame Rate Mode in ALL-Intra codec. Video Class Speed V30 required for 100-200Mbps recording or recording 2K/Full HD Variable Frame Rate Mode in LongGOP codec. Video Class Speed V10, UHS Speed Class 1, or Speed Class 10 suitable for 50Mbps recording.

Lens Compatibility: EF Mount
ISO Range: Dual Native ISO, 200-2000 (800 base)/1000-25600 (2500 base)
Ports & I/O:

  • BNC In/Out
  • 40-Pin LCD Connector
  • 2.5mm Sub-Mini
  • USB 2.0 Type A
  • DC In (12V)
  • Dual 3-Pin XLR
  • 3.5mm Stereo Jack

Memory Card Compatibility: Dual SD Card Slots (V60 Rating Required)
Monitor/LCD: 3.5" Touchscreen LCD
Dimensions: 6.7 x 5.3 x 5.2" (Excluding Accessories)
Weight: 2.6 lbs (Excluding Accessories)
Additional Features:

  • Built-In 2-Stop/4-Stop/6-Stop ND Filters
  • 1-358° (0.5° Steps) Shutter Speed
  • Image Stabilization

  • Panasonic AU-EVA1 EF Mount 5.7K Super 35mm Cinema Camera
  • Panasonic AG-VBR59 Battery
  • Panasonic AG-BRD50 Charger
  • AC Power Adapter & Cable
  • Microphone Holder & Adapter (Microphone Not Included)
  • LCD Monitor with Hood and Mount
  • Top Handle
  • Hand Grip
  • Carrying Case

  • All of our EVA1 cameras have been upgraded to the version 2.0 firmware, which includes ALL-Intra frame recording formats, raw output, time-lapse recording in both LongGOP and ALL-Intra, HD 4:2:2 interlaced formats, and remote operation capabilities with 3rd party wired controllers. Please see this detailed spec sheet for more information.
  • A microphone is not included with this rental.
