Magewell USB Capture HDMI Gen 2

  • Magewell USB Capture HDMI Gen 2

Magewell USB Capture HDMI Gen 2

  • One-Channel HD Capture Device
  • Record/Stream HDMI Signal via USB 3.0
  • Embedded Audio
  • Internal Up or Down-Coverting
Rental Dates
$30.007 Day Rental
Renting gear is easy
1Select Dates
  • Real-time inventory
  • Low or no deposit
2Gear Arrives
  • Free 2-day shipping*
  • Ship or Pickup
  • The top gear
  • Rent from 1-90 days
4Easy Returns
  • Repack in same box
  • We provide return label


The Magewell USB Capture HDMI Gen 2 is a simple, driverless capturing device that makes your camera or other HDMI-based source appear as a webcam to your computer so that you can stream your footage easily using encoders or applications like Wirecast, Livestream Producer, and more. This capture device will accept resolutions up to 1920 x 1200p60. It will also internally up or down-covert your signal to your set resolution as well as perform frame rate conversion and deinterlacing in real time to take the processing load off your computer's CPU. For sound, it will convert input audio formats to 48 kHz PCM stereo audio via HDMI. It is equipped with 64MB of DDR2 onboard memory to control frame buffering and prevent dropped frames.


Inputs: HDMI Type A
Outputs: USB Type A 3.0 (Backwards-Compatible with USB 2.0 with Reduced Quality)
Input Video Format: Up to 1080p in 8/10/12-Bit, 4:4:4/4:2:2
Dimensions: 3.63 x 1.58 x 0.48"
Additional Features:

  • 2-Channel Embedded Audio Input over HDMI (No Separate Audio Input)
  • Driver Free

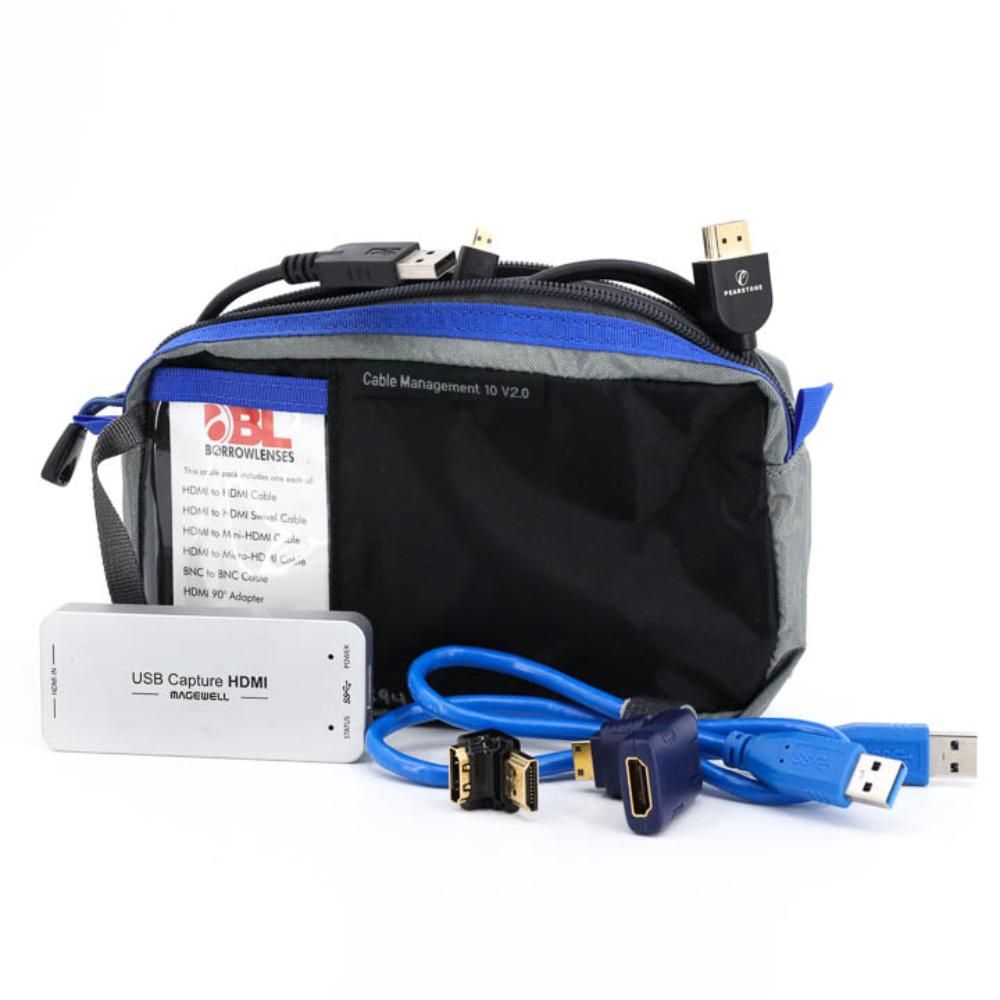

  • Magewell USB Capture HDMI Gen 2
  • USB 3.0 Cable
  • Standard Cable Pack:
    • 3' HDMI to HDMI Cable
    • 3' Mini HDMI to HDMI Cable
    • 3' Micro HDMI to HDMI Cable
    • Right Angle HDMI to HDMI Adapter
    • Right Angle Mini HDMI to HDMI Adapter
    • 3' BNC to BNC SDI-Video Cable
  • ​​​​​​​​​​​​​​Special Note: Our standard cable packs come with an SDI cable by default but this capture device is HDMI only.

  • The standard cable pack this USB Capture HDMI Gen 2 device comes with has an SDI cable in it because all of our packs come with one. But please note that the Magewell is HDMI only.

There is no manual for this product
