FREEFLY

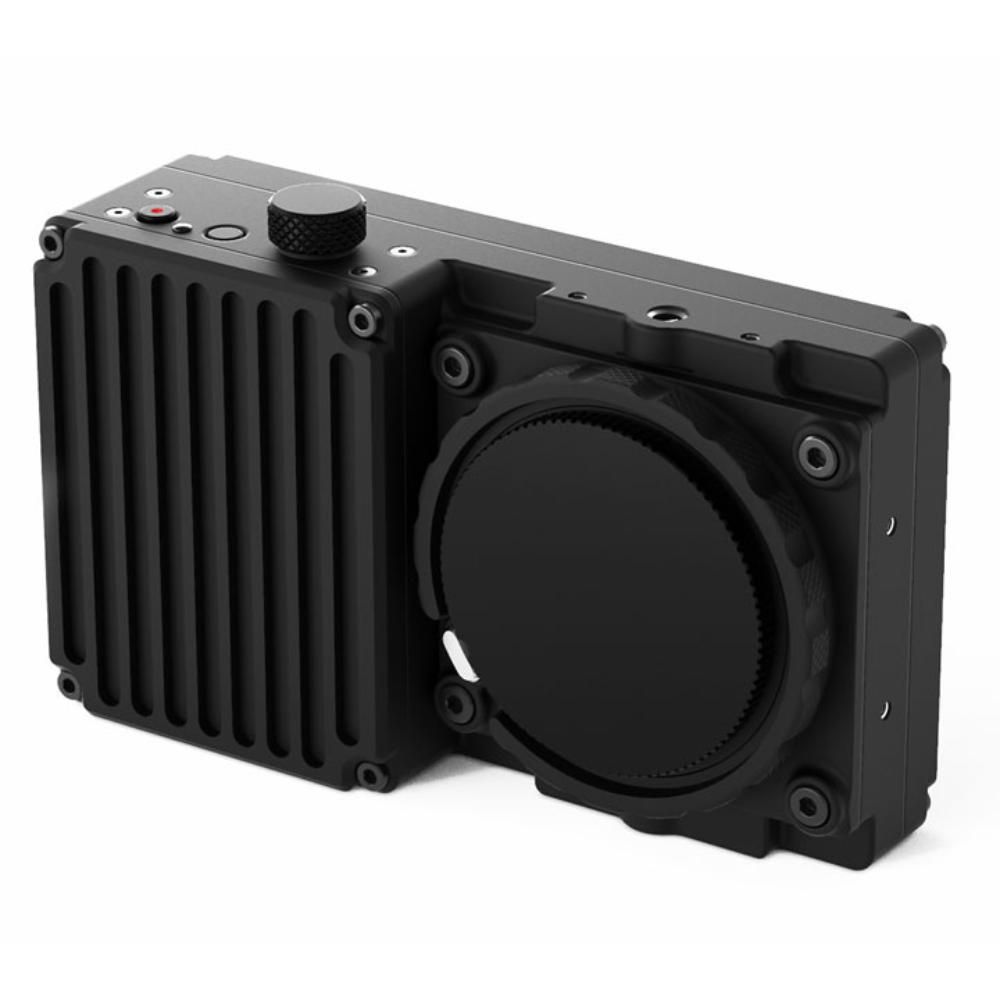

Freefly Wave

  • Freefly Wave
  • Freefly Wave Camera

FREEFLY

Freefly Wave

  • Compatible with Sony E Mount
  • Super 35 Sensor
  • 9,259 FPS Max Frame Rate, Global Electronic Shutter
Rental Dates
$564.00 7 Day Rental
Renting gear is easy
1Select Dates
  • Real-time inventory
  • Low or no deposit
2Gear Arrives
  • Free 2-day shipping*
  • Ship or Pickup
3Shoot
  • The top gear
  • Rent from 1-90 days
4Easy Returns
  • Repack in same box
  • We provide return label
Overview

The Freefly Wave is an ultra-high-speed camera system with a passive E mount and internal SSD storage. Here are the highlights of this unique Super 35mm camera:

  • Astounding 9259 FPS at 2048 x 128, 1461 FPS in 2K, and 422 FPS in 4K.
  • Uses a lightweight 5:1 proprietary 10-Bit compressed raw (must use a Windows system and Wave Player to export in MOV or MP4).
  • Continuous capture time limited only by the internal storage (2TB).
  • 6-pin GPIO connector for stop/stop/sync and UART API.
  • Fast file transfer over USB-C SuperSpeed.
  • Global electronic shutter to eliminate digital artifacts, rolling shutter effects, and improve post-production stabilization.
  • 60 minute internal battery with DC input for optional V-mount batteries.

The Freefly Wave camera is a specialty camera designed entirely for slow motion footage. It is the ideal choice for scientific applications, fine art, and unique b-roll footage. Its small size and light weight makes it suitable for drone use as well.

Special note about the mount: You must use manual focus lenses with this camera or have your lens completely in manual focusing mode. Do not use with AF/M manual override – it will not operate correctly. Please do not remove the pre-installed shim, as it is essential for finding accurate focus marks on most lenses.

Sensor: Super 35 ams CMV12000
File Format: 10-Bit Compressed Bayer Raw, ~5:1 Compression
Resolutions/Framerates:

  • 4096 x 2176 at 422 FPS, 5.5:1 (6.84Gbps)
  • 2048 x 1088 at 1461 FPS, 5.5:1 (5.92Gbps)
  • 4096 x 256 at 3275 FPS, 16:1
  • 2048 x 128 at 9259 FPS, 16:1

ISO Range: Native ISO 250
Ports & I/O:

  • HDMI A (Supports Up to 1080p30)
  • 6-Pin GPIO
  • USB-C 3.2
  • 12-26V DC In
  • 2 x 1/4"-20 Ports
  • 8 x M3 Ports

Lens Compatibility: Sony E Mount (Passive)
Memory Card Compatibility: 2TB Internal NVMe SSD Only
Monitor/LCD: N/A, Must Use External Monitor
Dimensions: 5.9 Wide x 3.81 Tall x 1.85" Deep
Weight: 1.58 lbs
Additional Features:

  • WiFi/Bluetooth
  • Internal Battery Only (V-Mount Broadcast Batteries Not Included)

Important Note

The footage from this camera is recorded in a compressed 10-bit RGB raw format that can't be currently opened with anything other than Wave Player. From there, you can export in MOV, H.264, and in PNG/JPEG sequence formats. This camera will mount as an external drive when connected to a computer but for the most reliable performance, the USB cable and USB port used need to be USB-C SuperSpeed (5Gbps). There is no audio capture with this camera. External SSDs cannot be used at this time. A 1.0 shim is pre-installed on the camera. Please do not remove the shim, as it is essential for finding accurate focus marks on most lenses.

  • Freefly Wave Camera
  • Body Cap
  • 1.0 Shim (On Camera, Do Not Remove)
  • 3' USB-C to USB-A Cable
  • 3' USB-C to USB-C Cable
  • D-Tap to 12V DC Power Cable
  • AC Power Adapter/Charger for Internal 2200mAh Battery
  • Carrying Case

  • The footage from this camera is recorded in a compressed 10-bit RGB raw format that can't be currently opened with anything other than Wave Player on a Windows operating system. From there, you can export in MOV, H.264, and in PNG/JPEG sequence formats.
  • There is no LCD/monitor on this camera. To preview footage or interact with camera menus, you must use an external monitor. Freefly recommends the Atomos Shinobi and the SmallHD Focus 5. Most monitors that can receive 1080p30 over HDMI should work.
  • External recording is limited to 1080p30.
  • This camera uses a passive, locking E mount. There are no electrical connections to the lens and electronic focus and iris control are not supported.
  • This camera will mount as an external drive when connected to a computer but for the most reliable performance, the USB cable and USB port used need to be USB-C SuperSpeed (5Gbps).
  • HDMI preview image quality will be closer to 1080p when recording in 4K (and 480p when recording in 2K).
  • This camera is not a good choice for use in low light.
  • There is no audio capture with this camera.
  • External SSDs cannot be used at this time.
  • This camera is compatible with external 12-26V V-mount batteries (batteries not included). It comes with an AC power adapter/charger, where the 2200mAh internal battery will last 1 hour. Charge time is approximately 90 minutes.
  • A 1.0 shim is pre-installed on the camera. Please do not remove the shim, as it is essential for finding accurate focus marks on most lenses.

There is no manual for this product
