DJI

DJI Ronin RavenEye

  • DJI Ronin RavenEye Image Transmission System
  • DJI Ronin RavenEye Image Transmission System Mounted

DJI

DJI Ronin RavenEye

  • Connects to DJI RS 2/RSC 2 via HDMI, to Smartphone via WiFi
  • Transmits 1080p/30 FPS Feed for Monitoring camera PoV on Smartphone
  • remote Control Features, ActiveTrack 3.0
Rental Dates
$32.007 Days Rental
Renting gear is easy
1Select Dates
  • Real-time inventory
  • Low or no deposit
2Gear Arrives
  • Free 2-day shipping*
  • Ship or Pickup
3Shoot
  • The top gear
  • Rent from 1-90 days
4Easy Returns
  • Repack in same box
  • We provide return labels

Overview

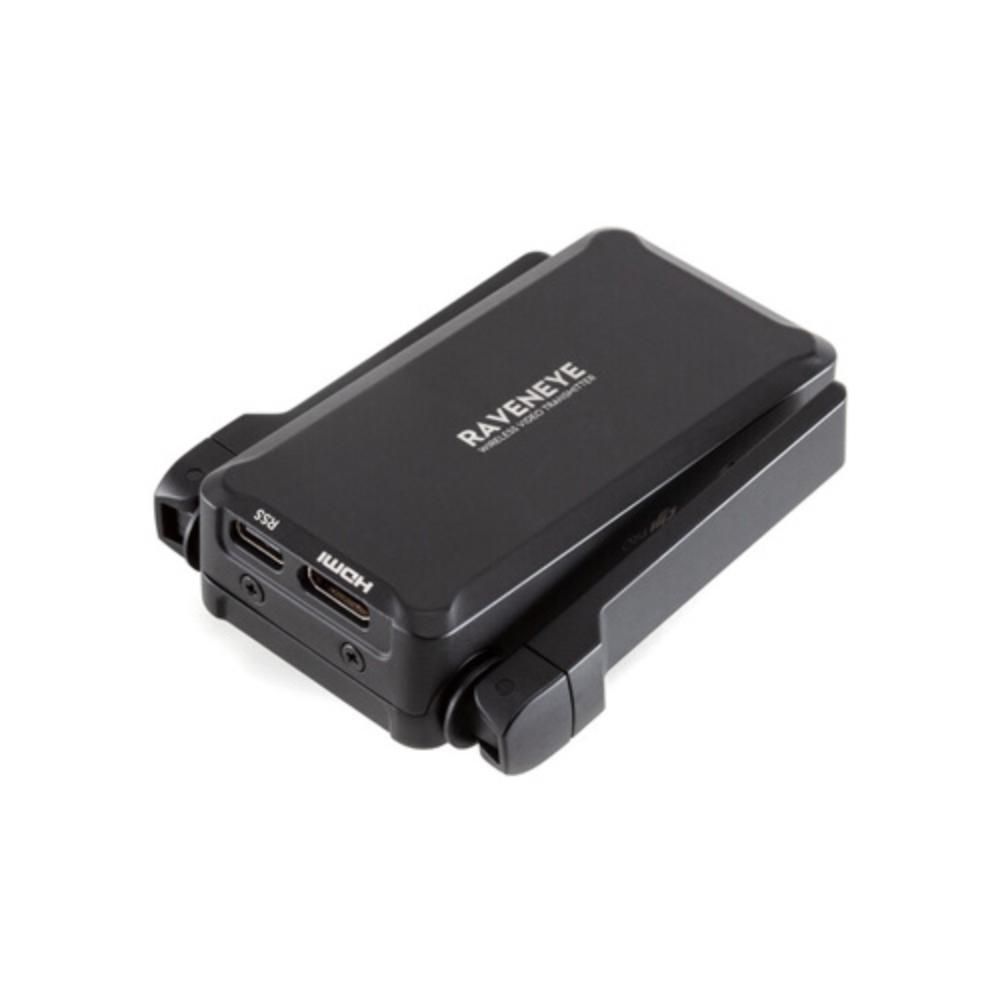

The DJI Ronin RavenEye Image Transmission System connects to a DJI RS 2 or RSC 2 gimbal via HDMI and to your mobile device via WiFi. It allows you to, via the Ronin app, see a 1080p/30 FPS feed from your camera's PoV while also allowing gimbal control using the app's virtual joystick or with Force Mobile (where the gimbal mimics the phone's movements). You can operate all this from over 300' away (in ideal conditions). When pairing the RavenEye specifically with the DJI RS 2, you can display the feed directly on the RS 2's touchscreen.


  • Frequency: 2.400-2.4835 GHz 5.725-5.850 GHz
  • Connects to DJI RS 2/RSC 2 via HDMI, to Smartphone via WiFi
  • Sends 1080p/30 FPS Low-Latency Feed to Smartphone
  • Transmits from Up to 330' Away
  • Control Gimbal Movements via Smartphone
  • 2970mAh battery Capacity
  • Dimensions: 3.23 x 2.5 x .94"
  • Weight: 0.28 lbs


  • RavenEye Image Transmitter
  • DJI RavenEye Wifi Antennas
  • Cold Shoe to 1/4"20 Adapter
  • 3' usb-C to usb-A Charging Cable and AC Wall Adapter
  • Mini-HDMI to HDMI Type-A Cable
  • Mini-HDMI to Mini-HDMI Cable
  • Mini-HDMI to Micro-HDMI Cable
  • Multi-camera Control Cable (usb-C to usb-C)


  • Pairing the RavenEye with your DJI RS 2 or DJI RSC 2 could affect what camera control cable you're able to use (particularly for Sony users). Please refer to the DJI Ronin RavenEye Image Transmission System Compatibility List. Depending on the camera, use of the RavenEye may reduce the number of functions your camera has with the gimbal as opposed to when using your camera with the gimbal alone.
  • When powering everything up, it is advised that you do it in this order: power on RavenEye, then gimbal, then your camera.
  • When pairing with your mobile device, note that the network name and password is listed directly on the RavenEye.
  • WiFi is required for using the RavenEye with the Ronin app. Bluetooth connection between camera and gimbal needs to be turned off entirely for the WiFi connection to properly function.
  • To get the most functionality and control, it's best to use the RavenEye along with DJI focus motors.
  • While it is always best to charge the RavenEye completely before use, it can leach power directly from the gimbal as well if you need it to.
