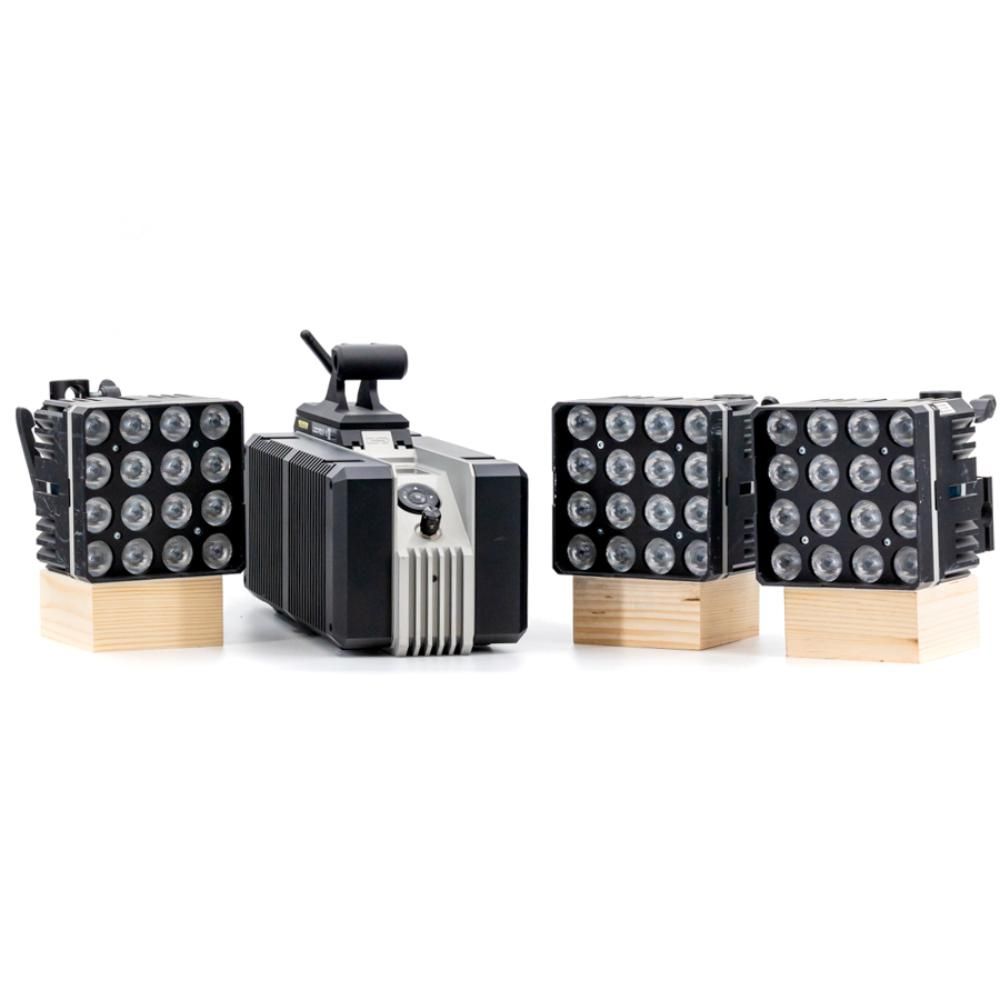

Digital Sputnik DS3 LED Kit

  • Digital Sputnik DS3 LED Kit
  • Digital Sputnik DS3 LED Subparts View
  • Digital Sputnik DS3 LED Back View
  • Digital Sputnik DS3 LED Kit Case View

Digital Sputnik DS3 LED Kit

  • Includes 3 DS1 Modular LEDs, Single 3-Light PSU Ballast
  • Full Color Control/Primary Color Output, 1500-10,000K Temperature Range
  • AC Powered, Requires Light stands
Rental Dates
$575.007 Day Rental
Renting gear is easy
1Select Dates
  • Real-time inventory
  • Low or no deposit
2Gear Arrives
  • Free 2-day shipping*
  • Ship or Pickup
3Shoot
  • The top gear
  • Rent from 1-90 days
4Easy Returns
  • Repack in same box
  • We provide return labels

Overview

The Digital Sputnik DS3 LED Kit consists of 3 DS1 modules and a large PSU. Each module is a super luminous 4" LED box with the output equivalent of a 100W HMI/500W tungsten light. They feature 0-100% flicker-free dimming, a 20° beam angle, passive and active cooling for maximum efficiency, a temperature range of 1,500-10,000K with +/- green tint control, and full RGB and primary color rendering. Control all of this via the OLED screen or with the app and the unit's built-in WiFi, plus there is the option for DMX control. Barndoors and diffuser boxes are included, as are mounting brackets and long connection cables for setting up all over a studio. This kit is ideal for any medium-sized film set and is also a creative lighting solution for photographers.


  • Light Source: LED

  • Power/Brightness: 100W HMI/ 500W Tungsten Equivalent from Each Module

  • Flash Duration: Continuous

  • Temperature: 1500K - 10000K with +/- Green Tint Adjustment and Primary Color Rendering

  • Power Consumption: 140W Per Module / 420W Per PSU
  • Operating Voltage: 90-264V AC
  • Controls: Dimming, Temperature

  • Beam Angle: 20°
  • Flicker free for Shooting Any Frame Rate
  • Built-In WiFi
  • Weight: 26.6 lbs (Single Module = 2.8 lbs, PSU = 7.7 lbs)


  • (3) DS Light Modules
  • 3-Light Power Supply Unit Ballast (AC Powered Only, No V-Mount)
  • (3) 32.8' Light Module Cables
  • 3' AC Cable with Power Adapter
  • WiFi Handle
  • (3) DS Tripod Mounts
  • (3) DS Eccentric Locks
  • (6) Small Barndoors
  • (6) Large Barndoors
  • (4) diffuser box Corner Profiles (for Joining diffuser Panels)
  • (12) diffuser box Slides (for Joining Barndoors)
  • (3) 1x1 34/76 Double-Sided diffuser
  • (1) 2x1 34/76 Double-Sided diffuser
  • (1) 3x1 34/76 Double-Sided diffuser
  • Carrying case


  • Portable power is possible with these lights using 12-36V DC broadcast-style batteries, which are not included. A V-Mount battery connection is not included on this 3-light PSU ballast. Most batteries even at 100Wh will not work with higher-powered lights such as these above 50% output. 190Wh+ is the minimum for most manufacturers.
