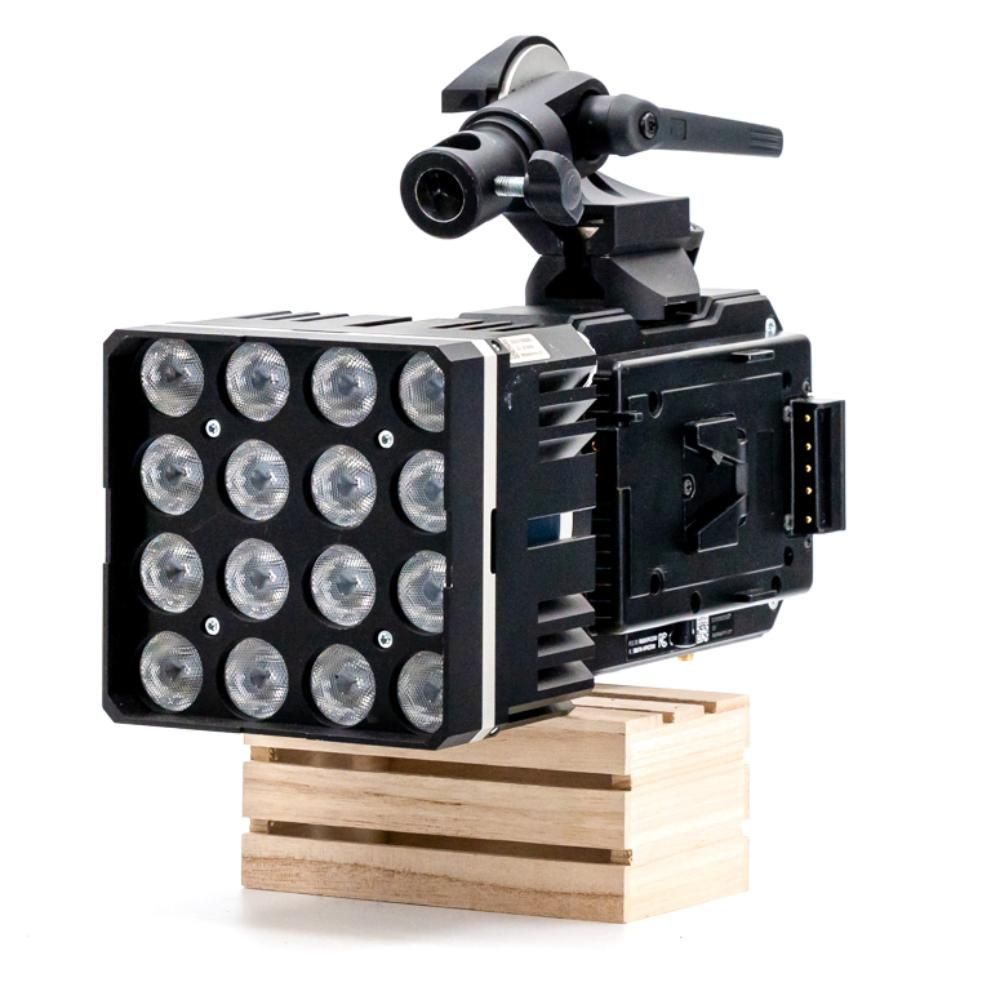

Digital Sputnik DS1 LED

  • Digital Sputnik DS1 LED
  • Digital Sputnik DS1 LED Back View
  • Digital Sputnik DS1 LED Case View
  • Digital Sputnik DS1 LED Kit View

Digital Sputnik DS1 LED

  • 4 x 4" Modular RGBW LED
  • Full Color Control/Primary Color Output, 1500-10,000K Temperature Range
  • AC Powered, Requires Light stand
Rental Dates
$245.007 Day Rental
Renting gear is easy
1Select Dates
  • Real-time inventory
  • Low or no deposit
2Gear Arrives
  • Free 2-day shipping*
  • Ship or Pickup
3Shoot
  • The top gear
  • Rent from 1-90 days
4Easy Returns
  • Repack in same box
  • We provide return labels

Overview

The Digital Sputnik DS1 is a super luminous 4" LED box with the output equivalent of a 100W HMI/500W tungsten light. It features 0-100% flicker-free dimming, a 20° beam angle, passive and active cooling for maximum efficiency, a temperature range of 1,500-10,000K with +/- green tint control, and full RGB and primary color rendering. Control all of this via the OLED screen or with the app and the unit's built-in WiFi, plus it has the option for DMX control. The DS1 is a great choice for a wide variety of projects. Included are barndoors, a diffuser box, and a mounting bracket. Please note that while the light module is only 4" square, the actual footprint of the fixture is much larger because of the PSU ballast.


Light Source: LED
Power/Brightness: 100W HMI/ 500W Tungsten Equivalent
Flash Duration: Continuous
Temperature: 1500K - 10000K with +/- Green Tint Adjustment and Primary Color Rendering
Power Consumption: 140W from Light Module / 420W from PSU
Operating Voltage: 90-260V AC
Controls: Dimming, Temperature
Beam Angle: 20°
Weight: Light Module = 2.8 lbs, PSU = 7.7 lbs
Flicker free for Shooting Any Frame Rate


  • DS Light Module
  • Power Supply Unit Ballast
  • 3' AC Cable with Power Adapter
  • DS Tripod Mount
  • (2) DS Eccentric Locks
  • Teradek Dual-Band Wireless Antenna
  • 1X1 34/76 Double-Sided Diffuser
  • Diffuser box
  • 2.5' Light Module Cable
  • 32.8' Light Module Cable
  • (2) Small Barndoors
  • (2) Large Barndoors
  • Carrying Case


  • Portable power is possible with this light using 12-36V DC broadcast-style batteries, which are not included. A V-Mount battery connection is included on the PSU ballast. Most batteries even at 100Wh will not work with higher-powered lights such as these above 50% output. 190Wh+ is the minimum for most manufacturers.
