Deity Connect 2.4 Ghz Wireless Audio System

  • Deity Connect 2.4 Ghz Wireless Audio System
  • Deity Connect 2.4 Ghz Wireless Audio System Kit View
  • Deity Connect 2.4 Ghz Wireless Audio System Receiver
  • Deity Connect 2.4 Ghz Wireless Audio System Packed Kit View
  • Deity Connect 2.4 Ghz Wireless Audio System Mics

Deity Connect 2.4 Ghz Wireless Audio System

  • Dual-Channel Reciever, 2 Transmitters
  • Auto/manual RF Adjustment up to 100mW
  • Includes 2 Lavs
Rental Dates
$51.007 Day Rental
Renting gear is easy
1Select Dates
  • Real-time inventory
  • Low or no deposit
2Gear Arrives
  • Free 2-day shipping*
  • Ship or Pickup
3Shoot
  • The top gear
  • Rent from 1-90 days
4Easy Returns
  • Repack in same box
  • We provide return labels

Overview

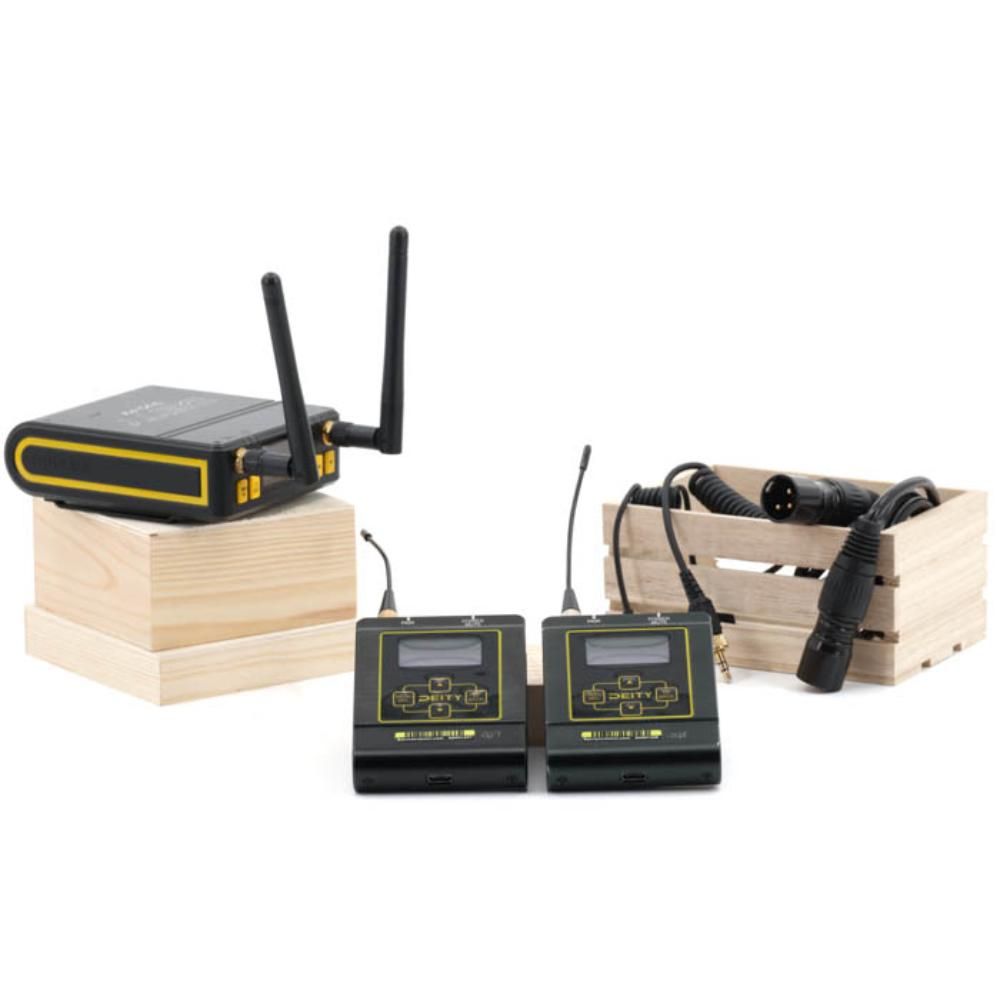

The Deity Connect 2.4 Ghz Wireless Audio System includes two BP-TX transmitters, a DUO-RX receiver, and two omnidirectional lavalier microphones with tie clips. This bi-directional transceiver system uses an advanced Adaptive Frequency Hopping protocol that is always scanning and mapping out the whole 2.4 GHz band to maintain encrypted, uncompressed digital signal integrity. In addition to full manual control, the transmitters can automatically control RF power adjustments, low-cut filters, and high-frequency boosts while taming peaks, reducing rumble, and enhancing clarity for the best results. The receiver is equipped with antennas that have versatile positioning and deliver uninterrupted signal reception. The receiver also provides complete remote control of each transmitter. The two gain-adjustable 3.5mm TRS outputs on each transmitter conform to the Sennheiser-standard pin configuration and offer three output modes: Balanced XLR, which sends a separate audio channel as a balanced signal to each output jack, DSLR Blended that mixes both audio channels to one output and turns the other jack into a headphone output, and Stereo that routes a stereo feed from each transmitter to separate outputs. They can be set to accept a mono mic signal or a stereo line-level source for camera hopping. With an approximate 10 hour run time, the Deity Connect 2.4 Ghz Wireless Audio System is ideal for documentary production, news gathering, ceremonies, and more.


  • DUO-RX Receiver


    • Digital 2.4 GHz Wireless Transmission
    • Top-Mount SMA Antenna
    • -21 to +15 dB Gain Range
    • 50 Hz-20 kHz Frequency Response
    • 100 mW RF Output Power
    • -86 dBm RF Sensitivity
    • 67dB Signal to Noise Ratio
    • Built-In Rechargeable battery (Charges via Included usb-C Cable)
    • 1.3" OLED Display
    • 1 Hour Charge Time / 10 Hour Run Time
    • Dimensions: 3.4 x 4.4 x 1.3"


      • BP-TX Transmitters


        • Digital 2.4 GHz Wireless Transmission
        • Detachable Antenna
        • Locking 3.5mm TRS Audio Inputs
        • 50 Hz-20 kHz Frequency Response
        • 100 mW RF Output Power
        • -86 dBm RF Sensitivity
        • 67dB Signal to Noise Ratio
        • Built-In Rechargeable battery (Charges via Included usb-C Cable)
        • 1.3" OLED Display
        • 1 Hour Charge Time / 10 Hour Run Time
        • Dimensions: 2.5 x 3.7 x 1.0"


          • Lavalier Microphone


            • Frequency Response: 50 Hz-20 kHz
            • Omnidirectional Polar Pattern
            • 5.2' Long Cable with 1/8" Locking Connector


  • (2) BP-TX Transmitters
  • (1) DUO-RX Receiver
  • (2) XLR Male to 3.5mm Cables
  • (1) Coiled 3.5mm Cable
  • (2) Omnidirectional Wired Lavalier Microphones
  • (2) Lavalier windscreens
  • (2) Synthetic Fur Windshields for Lavalier Microphones
  • (2) Lav Clips
  • DSLR Locking Audio Cable
  • DUO-RX Sync Cable
  • 3' usb-C to usb-A Charging Cable
  • usb-C to usb-A Adapter (for Firmware)
  • Cold Shoe to 1/4"-20 Adapter
  • Velcro "Magic Tape" for Deity Receiver
  • Carrying case


  • Comes with two lavalier mics. If you're using your own, know that some brands of lavs do not pair well with 100% digital systems. If you're getting interference, reduce the RF Power on your transmitter or use only the lavs included here.
  • If you are experiencing a lot of dropouts, make sure you are not within 16' of a WiFi router. Dropouts are to be expected in environments heavy with 2.4 GHz signals. Keep cell phones away from the transmitters.
  • When using two Deity Connect kits together, the receivers must be connected synchronously with the sync cables to reduce co-channel interference and ensure transmission distance.
