Core SWX NP-FZ100/NP-FW50 Power Kit for Sony

  • Core SWX NP-FZ100/NP-FW50 Power Kit for Sony
  • Core SWX V-Mount Battery Closeup
  • Core SWX V-Mount Battery Side

Core SWX NP-FZ100/NP-FW50 Power Kit for Sony

  • 49Wh V-Mount Battery
  • Sony NP-FZ100 & NP-FW50 Dummy Battery Adapters
  • 2 x USB Ports
Rental Dates
$42.007 Day Rental
Renting gear is easy
1Select Dates
  • Real-time inventory
  • Low or no deposit
2Gear Arrives
  • Free 2-day shipping*
  • Ship or Pickup
3Shoot
  • The top gear
  • Rent from 1-90 days
4Easy Returns
  • Repack in same box
  • We provide return labels

Overview

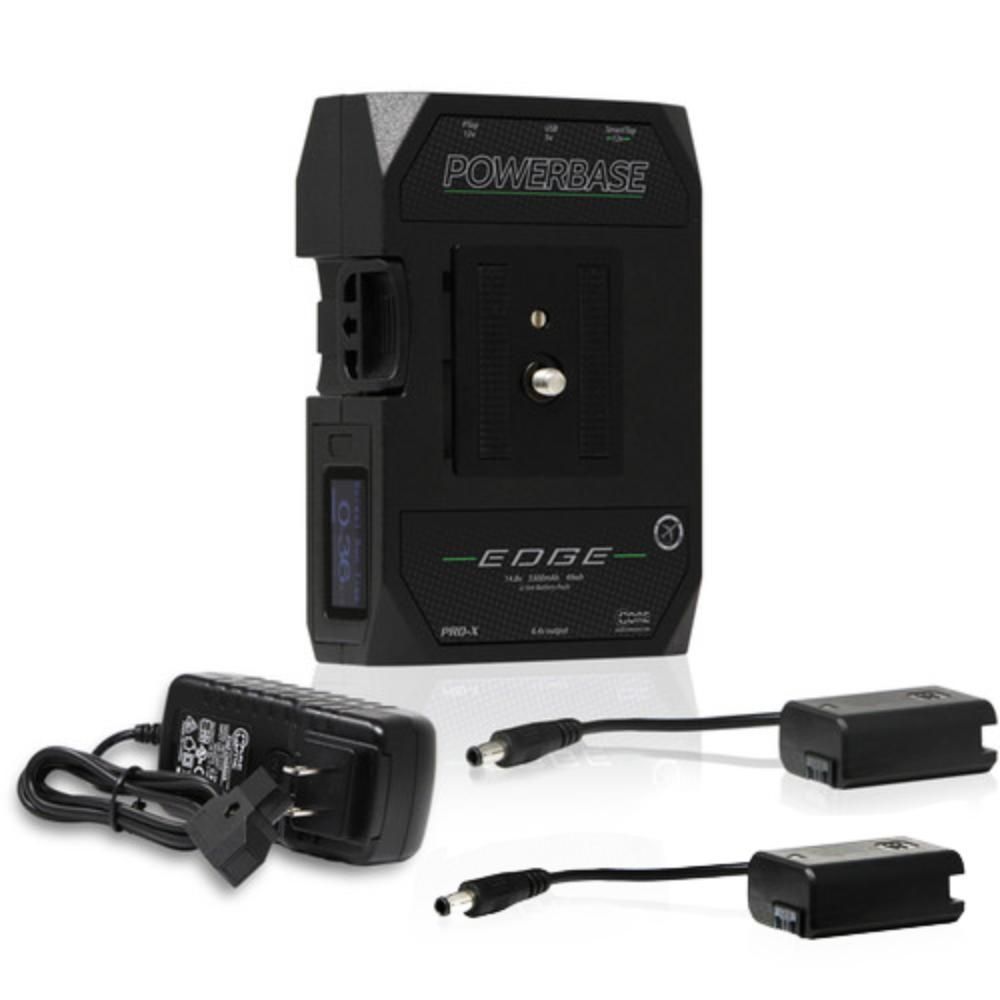

The Core SWX NP-FZ100/NP-FW50 Power Kit for Sony consists of a Powerbase Edge 49Wh V-mount battery, NP-FZ100/NP-FW50 dummy battery adapters to connect to it, and a battery charger. Together, you can use the Powerbase Edge battery to power your items that normally only accept either NP-FZ100 or NP-FW50 batteries. The battery is equipped with a SmartTap output, which is a normal D-Tap connection with extra contacts to communicate battery data to select cameras. You can power other devices off this battery using a D-Tap cable of your choice (note that this kit only comes with one NP-FZ100 and one NP-FW50 dummy cable).

The Powerbase Edge has an LCD on the side to inform you of runtime and includes a button-activated backlight. A small quick release adapter allows you to attach cheese plates and other support items securely to the middle of the battery and there is a 1/4-20" thread point for mounting tripods and rigs. The included D-Tap charger offers a quick-charging 1.5A and can charge other broadcast-style batteries that have D-Tap charging ports. Like the battery, the charger has an Lcd indicator.


The Core SWX NP-FZ100/NP-FW50 Power Kit for Sony was created with the Sony a7/a9-series cameras in mind, which the Powerbase Edge battery will run for approximately 8.25 hours. It's also versatile enough to power nearly any device that accepts D-Tap or NP-FZ100/NP-FW50 batteries.


  • V-Mount Type battery and D-Tap Charger
  • Output Voltage: 14.8V DC
  • Battery Capacity: 49Wh
  • Battery Type: Lithium-Ion
  • Battery Runtime: Approximately 8.25 Hours (with Sony a7/a9 Series)
  • 8A Continuous Draw
  • Battery Ports: 2 x D/P-Tap (8.4V Regulared DC Out), 2 x USB (Type A)
  • LCD battery Display
  • Charger Ports: D/P-Tap
  • Charger Power Requirements: 90-240V AC
  • Dimensions: 5.1 x 3.6 x 1.6"
  • Battery Weight: 1.3 lbs


  • Core SWX Powerbase Edge V-Mount battery
  • Core SWX Quick Release Plate with 1/4-20" Mounting Screw
  • Core SWX Powerbase Edge Cable and Dummy NP-FZ100
  • Core SWX Powerbase Edge Cable and Dummy NP-FW50
  • Core SWX D-Tap Charger
  • Carrying case


  • This battery has two D-Tap ports: regular and SmartTap. Use the regular connection to charge the battery. Either can be used for powering a device. The SmartTap offers SMBUS/smart battery data to compatible cameras.
