Core SWX DMW-BLF19 Power Kit for Panasonic

49Wh V-Mount battery
Panasonic DMW-BLF19 Dummy Adapter
2 x USB Ports

Rental Dates

Pickup or Delivery

$40.00 7 Day Rental

Renting gear is easy

1Select Dates

Real-time inventory
Low or no deposit

2Gear Arrives

Free 2-day shipping*
Ship or Pickup

3Shoot

The top gear
Rent from 1-90 days

4Easy Returns

Repack in same box
We provide return label

Overview

The Core SWX DMW-BLF19 Power Kit for Panasonic consists of a 49Wh V-mount battery, a DMW-BLF19 dummy battery adapter to connect to it, and a battery charger. Together, you can use the Powerbase Edge battery to power your items that normally only accept DMW-BLF19 batteries. The battery is equipped with a SmartTap output, which is a normal D-Tap connection with extra contacts to communicate battery data to select cameras. You can power other devices off this battery using a D-Tap cable of your choice (note that this kit only comes with the DMW-BLF19 dummy cable).

The Powerbase has an LCD on the side to inform you of runtime and includes a button-activated backlight. A small quick release adapter allows you to attach cheese plates and other support items securely to the middle of the battery and there is a 1/4-20" thread point for mounting tripods and rigs. The included D-Tap charger offers a quick-charging 1.5A and can charge other broadcast-style batteries that have D-Tap charging ports. Like the battery, the charger has an Lcd indicator. The Core SWX Powerbase Edge will run a Panasonic GH camera for approximately 7.5 hours.

Specs

V-Mount Type battery and D-Tap Charger
Output Voltage: 14.8V DC
Battery Capacity: 49Wh
Battery Type: Lithium-Ion
Battery Runtime: Approximately 4 Hours (with Blackmagic Pockets)
8A Continuous Draw
Battery Ports: 2 x D/P-Tap (8.4V Regulared DC Out), 2 x USB (Type A)
LCD battery Display
Charger Ports: D/P-Tap
Charger Power Requirements: 90-240V AC
Dimensions: 5.1 x 3.6 x 1.6"
Battery Weight: 1.3 lbs

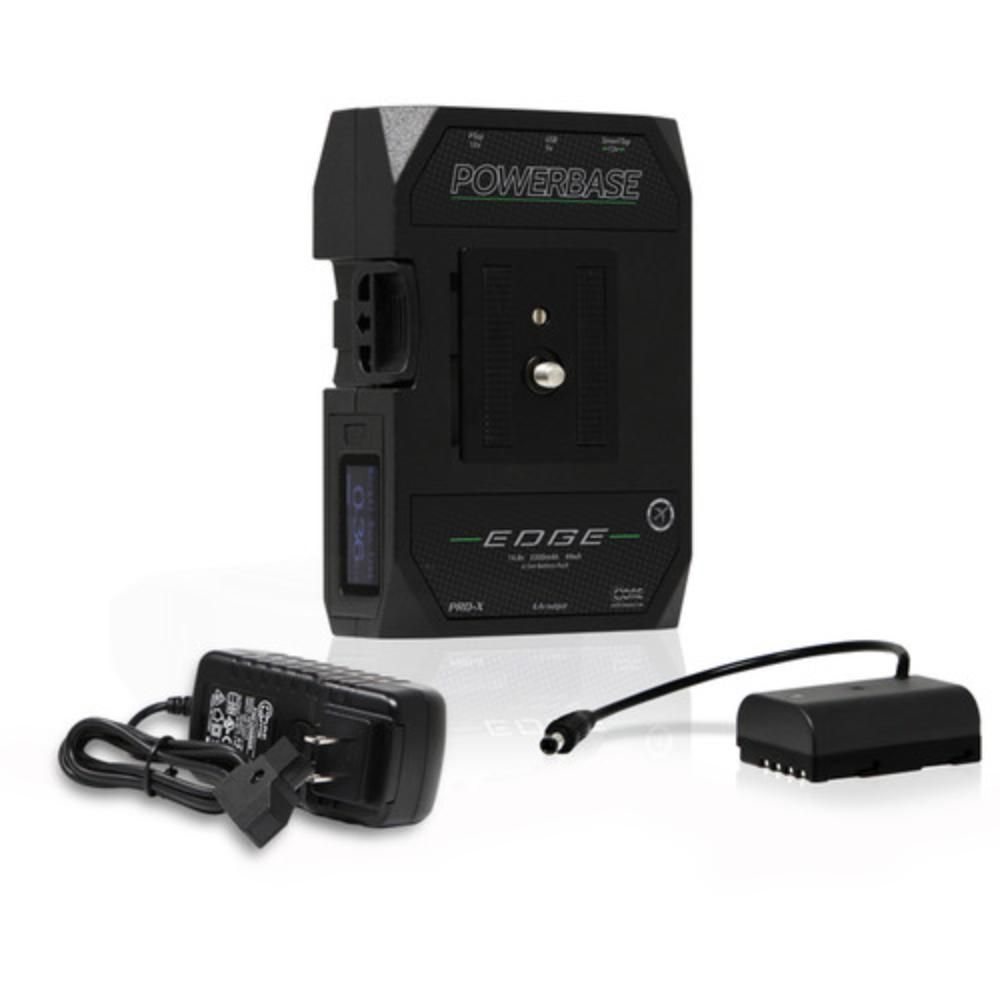

Rental Includes

Core SWX Powerbase Edge V-Mount battery
Core SWX Quick Release Plate with 1/4-20" Mounting Screw
Core SWX Powerbase Edge Cable and Dummy DMW-BLF19
Core SWX D-Tap Charger
Carrying case

Rental Notes

This battery has two D-Tap ports: regular and SmartTap. Use the regular connection to charge the battery. Either can be used for powering a device. The SmartTap offers SMBUS/smart battery data to compatible cameras.
