Core SWX HyperCore HC9 Mini V-Mount Battery Kit

  • Core SWX HyperCore HC9 Mini V-Mount Battery Kit

Core SWX HyperCore HC9 Mini V-Mount Battery Kit

  • RED DSMC/DSMC2 Protocol Compatible
  • Includes 2 V-Mount Batteries, 2-Bay Charger
  • P-Tap, usb Port
Rental Dates
$90.007 Day Rental
Renting gear is easy
1Select Dates
  • Real-time inventory
  • Low or no deposit
2Gear Arrives
  • Free 2-day shipping*
  • Ship or Pickup
3Shoot
  • The top gear
  • Rent from 1-90 days
4Easy Returns
  • Repack in same box
  • We provide return labels

Overview

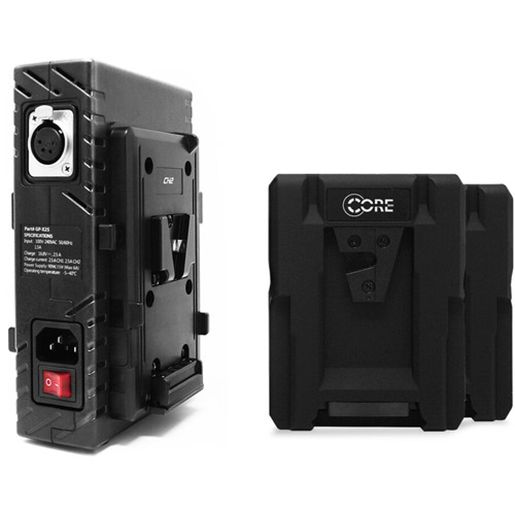

The Core SWX HyperCore HC9 Mini V-Mount battery Kit is a super slim power solution for V-mount setups. It's over 1" shorter than prior models and only about 2" deep, with an overall on-camera footprint of 3.54" x 4.65". Each battery has a 12 amp load and offers up to 1 hour and 40 minutes of runtime on a RED DSMC2 camera. With lower-draw cameras (25 watt load), you can get up to 3.5 hours. An LED power gauge indicates remaining power while a backlit Lcd provides runtime and remaining power for easy and accurate readings. In addition to the standard V-mount power output, the HC9s each feature a P-tap and a usb port for interfacing with accessories and can be used to power a light source, monitor, recorder, or smartphone. Plus, they are carry-on airline travel safe (according to the manufacturer).

Included with the 2 batteries is a Core SWX X2S 2-Bay ChargerCore that can charge 1 battery at a 3-amp rate or both batteries simultaneously at 2 amps. It is designed to sit vertically to take up less space and a 4-pin XLR output allows it to double as a 90W power supply for cameras, lights, and other equipment with 4-pin XLR ports (XLR cable not included). Please note, however, that to use the X2S Charger as a continuous AC power supply unit, you must use a Core SWX XLR cable with a jumper activation for power supply functionality, which is not included. The Core SWX HyperCore HC9 Mini V-Mount battery Kit is ideal for videographers looking for unobtrusive, long-lasting battery solutions or for those needing the lightest possible power solution for shoulder-mount rigs.


  • V-Mount Type Batteries and Charger
  • Compatible with RED's Communication Protocol
  • Battery Capacity: 98Wh
  • Battery Type: Lithium-Ion
  • Battery Runtime: Approximately 1.5 Hours (with RED Scarlet/EPIC)
  • Battery Ports: 1 x P-Tap, 1 x usb
  • LCD battery Display
  • Charger Ports: 2 x V-Mount, 1 x 4-Pin XLR
  • Charger Power Requirements: 90-240V AC
  • Battery Weight: 1.4 lbs


  • (2) HyperCore HC9 Batteries
  • (1) Core SWX X2S 2-Bay Simultaneous ChargerCore
  • Carrying case


  • This set is compatible with RED's Communication Protocol but it can most certainly be used on non-RED cameras just with only basic information communicated to the viewfinder.
  • The Core SWX X2S Charger will charge most V-mount, lithium-Ion broadcast batteries on the market. Your mileage may vary, experiment at your own risk.
  • To use the X2S Charger as a continuous AC power supply unit, you must use a Core SWX XLR cable with a jumper activation for power supply functionality, which is not included.
  • These batteries are not recommended for lights. Most batteries even at 100Wh will not work with higher-powered lights above 50% output. 190Wh+ is the minimum for manufacturers such as Aputure.
