Core SWX HyperCore HC9 Mini Gold Mount Battery Kit

  • Core SWX HyperCore HC9 Mini Gold Mount Battery Kit

Core SWX HyperCore HC9 Mini Gold Mount Battery Kit

  • Includes 2 x 98Wh Gold Mount Batteries
  • Dual Charger
  • Compact, 14.8V
Rental Dates
$62.007 Days Rental
Renting gear is easy
1Select Dates
  • Real-time inventory
  • Low or no deposit
2Gear Arrives
  • Free 2-day shipping*
  • Ship or Pickup
3Shoot
  • The top gear
  • Rent from 1-90 days
4Easy Returns
  • Repack in same box
  • We provide return labels

Overview

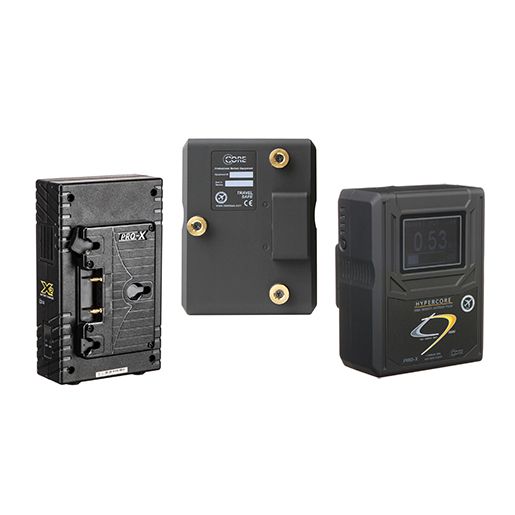

The Core SWX HyperCore HC9 Mini Gold Mount battery Kit is a slim power solution for cinema cameras and accessories. It's over 1" shorter than prior models and only about 2" deep, with an overall on-camera footprint of 3.54" x 4.65". Each battery has a 12A load and offers up to 1 hour and 40 minutes of runtime on a RED DSMC2 camera or over 8 hours on a Blackmagic Pocket Cinema camera (approximately please see Core SWX's consumption chart here). An LED power gauge indicates remaining power while a backlit Lcd provides runtime and remaining power for easy and accurate readings. In addition to the Gold Mount power output, these HC9s each feature a P-tap/D-tap output and a usb port for interfacing with accessories and can be used to power a light source, monitor, recorder, or smartphone.


Included with the 2 batteries is a Core SWX X2A 2-bay Gold Mount charger that can charge 1 battery at a 3A rate or both batteries simultaneously at 2A. It is designed to sit vertically to take up less space and a 4-pin XLR output allows it to double as a 90W power supply for cameras, lights, and other equipment with 4-pin XLR ports. Please note, however, that to use the X2A charger as a continuous AC power supply unit, you must use a Core SWX XLR cable with a jumper activation for power supply functionality, which is not included. The Core SWX HyperCore HC9 Mini Gold Mount battery Kit is ideal for cinema camera users looking for unobtrusive, long-lasting battery solutions or for those needing the lightest possible power solution for shoulder-mount rigs.


  • Gold Mount Type Batteries and Charger
  • battery Capacity: 98Wh, 12A Draw
  • battery Type: Lithium-Ion
  • battery Runtime: See Core SWX's Consumption Chart Here
  • battery Ports: 1 x P-Tap, 1 x usb-A (5V)
  • battery Dimensions: 3.54 x 4.65 x 1.90"
  • battery Weight: 1.4 lbs


  • (2) HyperCore HC9 Mini Batteries
  • (1) Core SWX X2A Dual Vertical Charger
  • Carrying case


  • To use the X2A Charger as a continuous AC power supply unit, you must use a Core SWX XLR cable with a jumper activation for power supply functionality, which is not included.
  • See Core SWX's Consumption Chart for more details on runtime with your camera.
  • These batteries are not recommended for lights. Most batteries even at 100Wh will not work with higher-powered lights above 50% output. 190Wh+ is the minimum for manufacturers such as Aputure.
