Canon XF405

  • Canon XF405
  • Canon XF405 Side View
  • Canon XF405 Ports and Handle View
  • Canon XF405 Kit


Canon XF405

  • UHD 4K60p & HD 120 FPS
  • 1080i50/60 H.264 IP Streaming
  • Up to 30x Zoom & Dual Pixel CMOS AF
Rental Dates
$182.007 Day Rental
Renting gear is easy
1Select Dates
  • Real-time inventory
  • Low or no deposit
2Gear Arrives
  • Free 2-day shipping*
  • Ship or Pickup
  • The top gear
  • Rent from 1-90 days
4Easy Returns
  • Repack in same box
  • We provide return labels


The Canon XF405 is an all-in-one camcorder that can shoot 4K UHD footage at 60p and slow motion up to 120 FPS in Full HD. Here are some of the other important features of the XF405:

  • Built-in 25.5-382.5mm (equivalent) lens with 15x optical zoom and a 9-blade iris which aids in producing artistic and beautiful out-of-focus areas.
  • 5-axis image stabilization as well as Dual Pixel CMOS AF technology to ensure proper focus is always maintained, even in unpredictable "run and gun" news or documentary-type shooting situations.
  • 4 channels of audio with manual/automatic recording levels and two XLR inputs for external microphones (mics not included).
  • Expansive I/O including HDMI 2.0 and 3G-SDI out, plus support for dual recording to SD memory cards (cards not included).
  • IP-based HD streaming with H.264 compression.

With convenient features such as built-in ND filters and WiFi, along with powerful dual DIGIC DV 6 image processors, the Canon XF405 is an ideal fixed-lens solution for event shooters looking for high quality results from a really compact system.

Sensor: 8.29MP 1" CMOS
Video Resolutions/Framerates:

XF-AVC 4:2:0 8-Bit

  • 3840 x 2160p at 23.98, 29.97, 59.94 FPS (160Mbps)
  • 1920 x 1080p at 23.98, 29.97, 59.94 FPS (17-45Mbps)

H.264 4:2:2

  • 3840 x 2160p at 24, 30, 60 FPS (150Mbps)
  • 1920 x 1080p at 24, 30, 60 FPS (17-35Mbps)
  • Slow Motion Recording Up to 120 FPS in UHD, 1080p, 720p

Lens Compatibility: Built-In 8.3124.5mm f/2.8-4.5 (35mm Equivalent = 25.5382.5mm) w/ 15x Optical Zoom in 4K, 30x Advanced Zoom in HD
Ports & I/O:

  • BNC (3G-SDI, Supports Full HD 60p 10-Bit) Out
  • HDMI 2.0 Mini (Type C) Out (Supports 4K UHD 60p 8-Bit)
  • 3.5mm Headphone
  • 3.5mm Microphone
  • 3-Pin XLR Terminals 1 and 2
  • 2.5mm LANC
  • Ethernet Terminal (Supports 1000base-T)
  • USB (Type Mini-B) Out (Hi-Speed USB Supported)
  • Accessory Shoe on Handle Unit

Memory Card Compatibility: Dual UHS-I SD Card Slots
Monitor/LCD: 3.5" Articulating Touchscreen LCD
Dimensions: 5.3" Wide x 3.8" Tall x 8.4" Deep (Body Only)
Weight: 2.5 lbs
Additional Features:

  • 5-Axis Optical Image Stabilization
  • Dual Pixel CMOS Continuous AF
  • WiFi
  • Built-In Motorized ND Filters
  • Infrared Recording
  • 1080i50/60 H.264 IP Streaming

Important Note

When using an external microphone while recording and using WiFi functions, noise may be picked up due to interference.

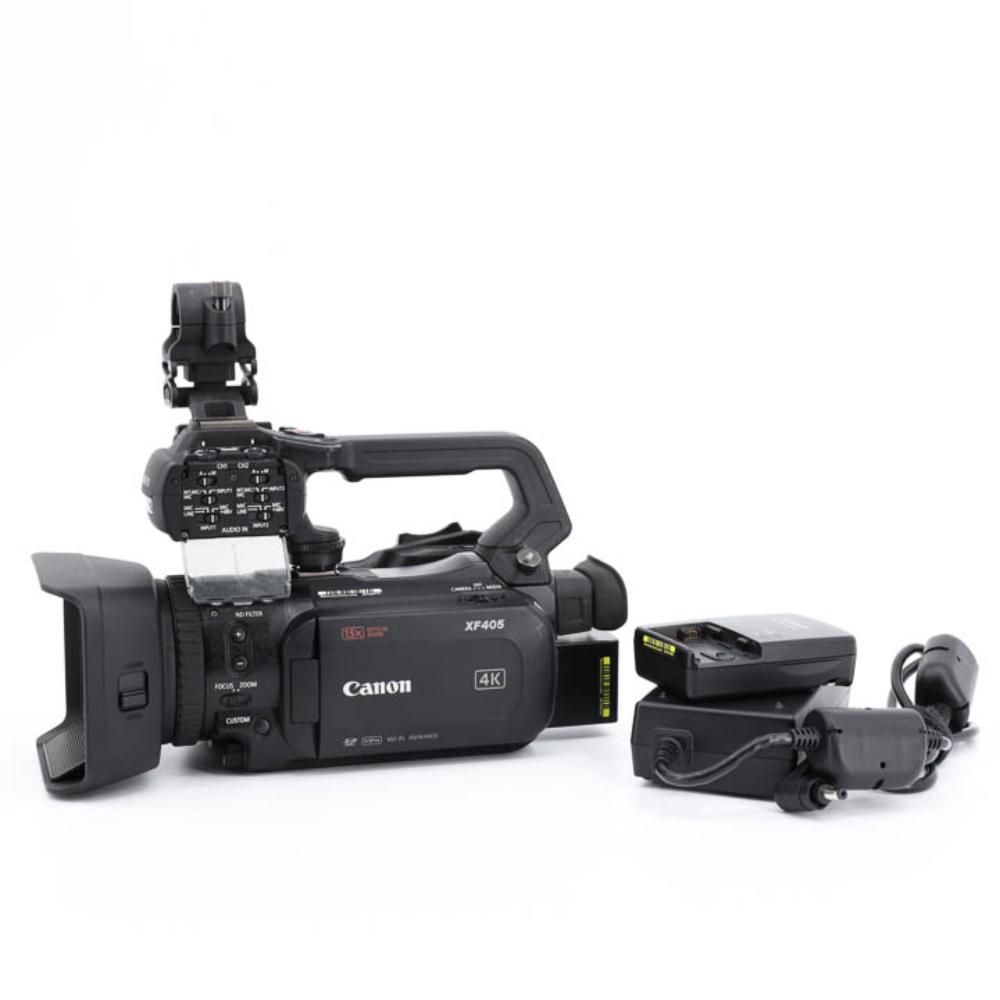

  • Canon XF405 Camcorder with HDMI 2.0 & 3G-SDI Output
  • CA-946 Compact Power Adapter
  • AC Adapter & CG-800 Battery Charger
  • BP-828 Battery
  • Lens Hood
  • Lens Cap
  • Microphone Holder Unit
  • Detachable Handle Unit
  • WL-D89 Wireless Controller
  • Carrying Case

  • When using an external microphone while recording and using WiFi functions, noise may be picked up due to interference.

  • Certain output video configurations become unavailable depending on the external recorder you're using.

  • Battery lasts approximately 60-210 minutes (when recording) per charge depending on settings. This camera is compatible with the following batteries: BP-828, BP-820, BP-808D, BP-819D, BP-827D.
