CANON

Canon C500 Mark II

  • Canon C500 Mark II
  • Canon C500 Mark II 5.9K Cinema Camera Side View 2

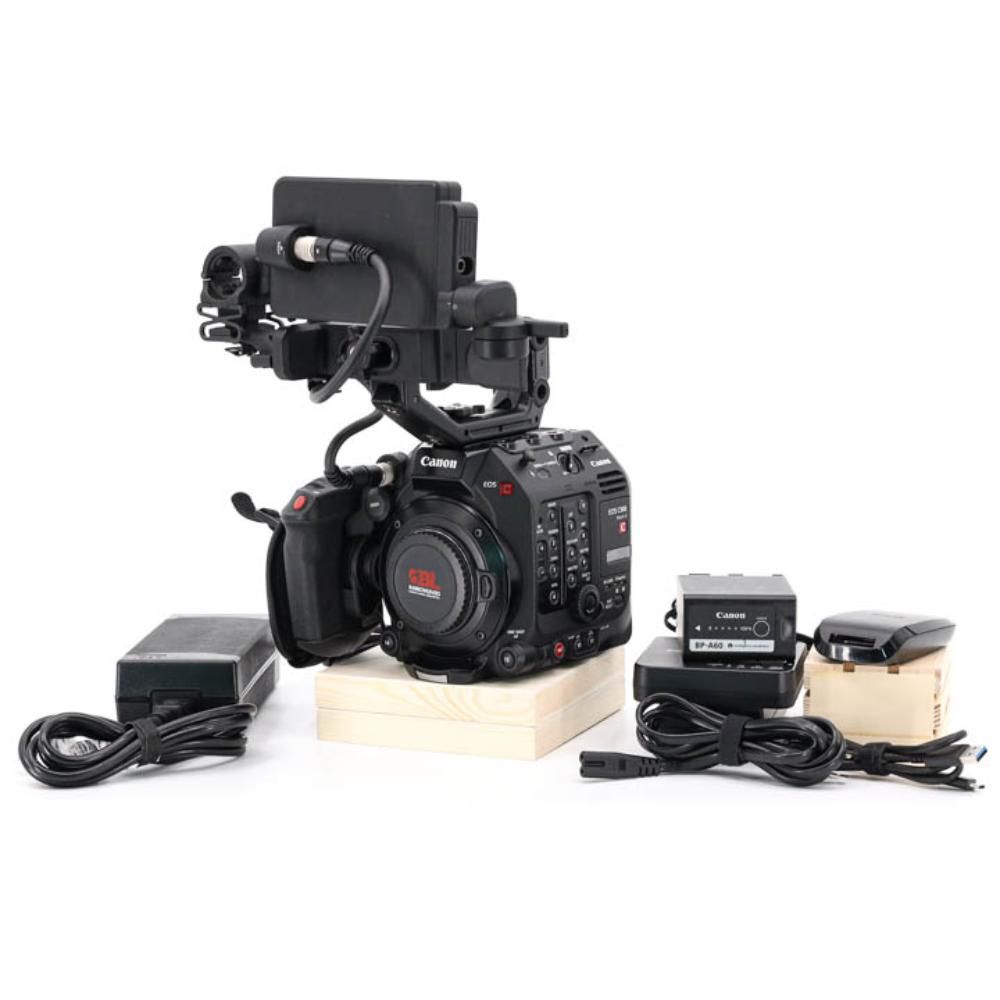

  • Canon C500 Mark II 5.9K Cinema Camera Kit
  • Canon C500 Mark II 5.9K Cinema Camera Side View
  • Canon C500 Mark II 5.9K Cinema Camera Back

CANON

Canon C500 Mark II

  • EF Mount, 5.6K Full Frame Sensor
  • Electronic Image Stabilization
  • Requires 2 CFexpress 2.0 Type B Cards
Rental Dates
$795.00 7 Day Rental
Renting gear is easy
1Select Dates
  • Real-time inventory
  • Low or no deposit
2Gear Arrives
  • Free 2-day shipping*
  • Ship or Pickup
3Shoot
  • The top gear
  • Rent from 1-90 days
4Easy Returns
  • Repack in same box
  • We provide return labels
Overview

The Canon C500 Mark II is the long-awaited sequel to Canon's onetime flagship, the C500, marking the next generation of Cinema EOS cameras. Positioned above the C300 but below the C700, the C500 Mark II combines some of the best features of its predecessors with new technology.

5.6K Full Frame Sensor Supporting Super 35 and Super 16

The high-resolution 5.6K full frame CMOS sensor offers an exceptionally broad range of tonality, with 15 stops of dynamic range and low noise. This is actually the same sensor found in the high-end C700, with native cinema gamut that goes beyond the current standards. This new system uses the latest DIGIC DV 7 image processor and operates in 3 distinct modes: Full Frame, Super 35mm, and Super 16mm. Capture footage in a wide variety of aspect ratios (including anamorphic widescreen), record internally in the Canon Cinema Raw Light codec, and shoot up to 120 FPS in 2K. The high-speed processor means you can simultaneously record 2K proxy files as XF-AVC 2K 4:2:0 8-bit to your SD card while recording Cinema Raw Light files (5.9K, 4K cropped, or 2K cropped) to internal CFexpress cards (cards not included). XF-AVC in 4K 4:2:2 10-bit is also supported. CFexpress cards, the successor of CFast, are reliable, fast, and designed specifically for high resolutions and frame rates. Equipped with both Canon Log 2 and Log 3, you also have complete flexibility in grading and color correction.

A Modular Design with Electronic Image Stabilization

Brand new to the Cinema EOS line is 5-axis electronic image stabilization. It is an advanced version of the system found in the recent EOS R line. When paired with a lens that supports data transmission, you can take advantage of Electronic IS on 3 axes for non-IS lenses and 5 axes for IS-equipped lenses. This body is extremely modular, with numerous accessory options. It boasts all your essential connections, including 12G-SDI, full size HDMI, and two XLR ports, and has 3 built-in motorized ND filters. The new, larger touchscreen Lcd monitor sports intuitive controllers while the expansive audio options allow you to assign the internal mic, the 3.5mm port, and the XLR ports to 4 different channels.

The Canon C500 Mark II is positioned to rival some of the biggest players in the game, including the ARRI ALEXA, Sony VENICE, and RED WEAPON, without losing some of the portability of cameras like the C200. It offers impressive usability with powerful options designed to give you full creative freedom.

Sensor: 20.8MP Super 35mm CMOS
Video Resolutions/Framerates:

Cinema Raw Light 10-Bit, 12-Bit

  • 5952 x 3140 at 23.98, 24, 25, 29.97, 50, 59.94 FPS
  • 4096 x 2160 at 23.98, 24, 25, 29.97, 50, 59.94 FPS
  • 3840 x 2160 at 23.98, 24, 25, 29.97, 50, 59.94 FPS

XF-AVC 4:2:2 10-Bit

  • 4096 x 2160p at 23.98, 24, 25, 29.97, 50, 59.94 FPS (160-810Mbps)
  • 3840 x 2160p at 23.98, 24, 25, 29.97, 50, 59.94 FPS (160-810Mbps)
  • 2048 x 1080p up to 120 FPS (160-810Mbps)

XF-AVC 4:2:0 8-Bit

  • 2048 x 1080p at 23.98, 24, 25, 29.97, 50, 59.94 FPS (24-35Mbps)

Lens Compatibility: Canon EF
ISO Range: 160-25600 (100-102400 Expanded)
Ports & I/O:

  • 3.5mm Microphone
  • 3.5mm Headphone
  • 12G-SDI Out (Supports Up to 5.9K60p 10-Bit Raw)
  • 3G-SDI Monitor Out (Supports Up to 2K 4:2:2 10-Bit Raw)
  • HDMI Out (Type A, Supports Up to 4K60p 10-Bit Raw)
  • 3-Pin XLR Terminals 1 and 2 (Line/Mic Selectable, 48V Phantom Power)
  • 2.5mm LANC
  • VIDEO Terminal for Proprietary LM-V2 LCD (Included)
  • DC In (12V DC)
  • USB (for Connecting Optional/Not-Included GP-E2 GPS Unit)
  • Time Code In/Out (BNC)
  • System Expansion Terminal
  • Accessory Shoe on Body, (3) Accessory Shoes on Included Handle Unit

Memory Card Compatibility: Dual CFexpress Type B Card Slots, 1 SD UHS-II Card Slot
Monitor/LCD: 4.3" LCD Articulating Touchscreen
Dimensions: 5.8" Wide x 6" Tall x 6.6" Deep (Body Only)
Weight: 3.8 lbs
Additional Features:

  • WiFi
  • Built-In Motorized ND Filters
  • Dual Pixel CMOS AF
  • 5-Axis In-Body Image Stabilization

Important Note

Auto Iris is supported only for the following lenses (lenses not included):

  • EF-S 10-18mm f/4.5-5.6 IS STM
  • EF-S 18-55mm f/3.5-5.6 IS STM
  • EF-S 18-135mm f/3.5-5.6 IS STM
  • EF-S 55-250mm f/4-5.6 IS STM
  • EF 24-105mm f/3.5-5.6 IS STM
  • EF-S 35mm f/2.8 Macro IS STM
  • EF 24-105mm f/3.5-5.6 IS STM
  • EF 70-300mm f/4-5.6 IS II
  • EF 85mm f/1.4L IS
  • CN 7x17 KAS S/E1
  • CN 20x50 IAS H/E1
  • CN-E 18-80mm T4.4 L IS KAS S
  • CN-E 70-200mm T4.4 L IS KAS S

  • Canon C500 Mark II Cinema Camera Body
  • Body Cap
  • Eye Cup
  • BP-A60 Battery
  • CG-A20 Battery Charger
  • CA-CP200B Compact Power Adapter for Battery Charger
  • 15V DC 4-Pin XLR Power Supply
  • 2-Prong AC Power Cable
  • 3-Prong AC Power Cable
  • HDU-2 Handle Unit
  • LM-V2 4.3" LCD Monitor
  • LA-V2 LCD Attachment Unit
  • Mounting Screw for LA-V2 LCD Attachment Unit
  • Canon GR-V1 Camera Grip
  • Grip Attachment Ring for GR-V1
  • 1.6' Canon UN-5 Unit Cable
  • SanDisk Extreme PRO CFexpress Card Reader
  • Carrying Case

  • This camera accepts 2 CFexpress 2.0 Type B cards (for simultaneous or relay internal Cinema Raw Light recording) and 1 SD card (for simultaneous XF-AVC proxy recording up to 2K). Memory cards are not included.
  • This camera supports Auto Iris in the following lenses only:


    EF-S 10-18mm f/4.5-5.6 IS STM
    EF-S 18-55mm f/3.5-5.6 IS STM
    EF-S 18-135mm f/3.5-5.6 IS STM
    EF-S 55-250mm f/4-5.6 IS STM
    EF 24-105mm f/3.5-5.6 IS STM
    EF-S 35mm f/2.8 Macro IS STM
    EF 24-105mm f/3.5-5.6 IS STM
    EF 70-300mm f/4-5.6 IS II
    EF 85mm f/1.4L IS
    CN 7x17 KAS S/E1
    CN 20x50 IAS H/E1
    CN-E 18-80mm T4.4 L IS KAS S
    CN-E 70-200mm T4.4 L IS KAS S

There is no manual for this product
