CANON

Canon C300 Mark II PL Mount

  • Canon C300 Mark II PL Mount
  • Canon C300 Mark II PL Back
  • Canon C300 Mark II PL Side
  • Canon C300 Mark II PL Kit
  • Canon C300 Mark II PL Side

CANON

Canon C300 Mark II PL Mount

  • PL Mount, Super 35mm Coverage
  • 4K Raw Out & Dual Pixel CMOS AF
  • Dual CFast Slots

Coming Soon

$633.007 Days Rental
Renting gear is easy
1Select Dates
  • Real-time inventory
  • Low or no deposit
2Gear Arrives
  • Free 2-day shipping*
  • Ship or Pickup
3Shoot
  • The top gear
  • Rent from 1-90 days
4Easy Returns
  • Repack in same box
  • We provide return labels

Overview

The Canon C300 Mark II PL Mount is a professional cinema camera that can record 4K raw out and offers slow motion shooting up to 120 FPS. Here are some of the other notable features of this PL mount system:

  • Support for Cine 4K (4096 x 2160), Ultra HD (3840 x 2160), and Full HD (1920 x 1080).
  • Dual Pixel CMOS AF that maintains sharp focus while providing natural, smooth AF movement with select Canon EF lenses (lenses not included).
  • Canon Log 3 to achieve a dynamic range of 1600% (14 stops).
  • Removable 4" touchscreen Lcd monitor with ergonomic handgrip and accessory-ready top handle.
  • Dual XLR audio inputs with +48V phantom power. Audio can be recorded uncompressed at 48 kHz.
  • Super slow motion shooting at 120 FPS when in Slow & Fast Recording mode at a cropped 2K or HD.
  • Logical dial layout with backlighting that can be rigged up or stripped down according to your production needs.
  • Built-in cooling system.


Sensor: 9.84MP Super 35mm CMOS
Video Resolutions/Framerates:

MPEG-4 AVC/H.264 4:4:4 12-Bit Intra-Frame

  • 2048 x 1080 at 23.98, 24, 25, 29.97 FPS (225Mbps)
  • 1920 x 1080 at 23.98, 24, 25, 29.97 FPS (225Mbps)

MPEG-4 AVC/H.264 4:4:4 10-Bit Intra-Frame

  • 2048 x 1080 at 23.98, 24, 25, 29.97 FPS (210Mbps)
  • 1920 x 1080 at 23.98, 24, 25, 29.97 FPS (210Mbps)

MPEG-4 AVC/H.264 4:2:2 10-Bit Intra-Frame

  • 4096 x 2160 at 23.98, 24, 25, 29.97 FPS (410Mbps)
  • 3840 x 2160 at 23.98, 24, 25, 29.97 FPS (410Mbps)
  • 2048 x 1080 at 50, 59.94 FPS (310Mbps)
  • 2048 x 1080 at 23.98, 24, 25, 29.97, 50, 59.94 FPS (160Mbps)
  • 1920 x 1080 at 50, 59.94 FPS (310Mbps)
  • 1920 x 1080 at 23.98, 24, 25, 29.97, 50, 59.94 FPS (160Mbps)

MPEG-4 AVC/H.264 4:2:2 10-Bit Long GOP

  • 2048 x 1080 at 23.98, 24, 25, 29.97, 50, 59.94 FPS (50Mbps)
  • 1920 x 1080 at 23.98, 24, 25, 29.97, 50, 59.94 FPS (50Mbps)

Lens Compatibility: Arri PL
ISO Range: 100-32,000 (102,400 Expanded)
Ports & I/O:

  • 2 x BNC Out (3G-SDI, Supports Up to 4K30p 10-Bit Raw)
  • HDMI 2.0 Out (Type A, Supports Up to 1080p 4:2:2 10-Bit)
  • 3-Pin XLR Terminals 1 and 2 (Line/Mic Selectable, 48V Phantom Power)
  • 3.5mm Microphone
  • 3.5mm Headphone
  • Genlock In/Sync Out (BNC)
  • Time Code In/Out (BNC)
  • 2.5mm LANC
  • Terminal for Included MA-400 Microphone Adapter (Mic Not Included)
  • WFT Terminal
  • DC In (16.7V DC)
  • Accessory Shoe on Body, (3) Accessory Shoes on Included Handle Unit

Memory Card Compatibility: Dual CFast Card Slots, (1) SD Card Slot
Monitor/LCD: 4" LCD Articulating Monitor
Dimensions: 5.9" Wide x 7.2" Tall x 7.2" Deep (Body Only)
Weight: 4 lbs (Body Only)
Additional Features: Built-In Motorized ND Filters
Important Notes: Only CFast 2.0 (cards not included) with VPG-130 is supported. Raw only writes to CFast. The SD slots are for MP4 movies, photos (JPEG), custom pictures, and menus. The C300 Mark II is not compatible with C300 rig and power accessories. Two SDI terminals (REC OUT and MON) can output 4K raw video to an external recorder (recorder not included). The external recorder must be compatible with Canon Raw files. For more on connecting to an external recorder for 4K raw shooting, please see page 167 of this manual.

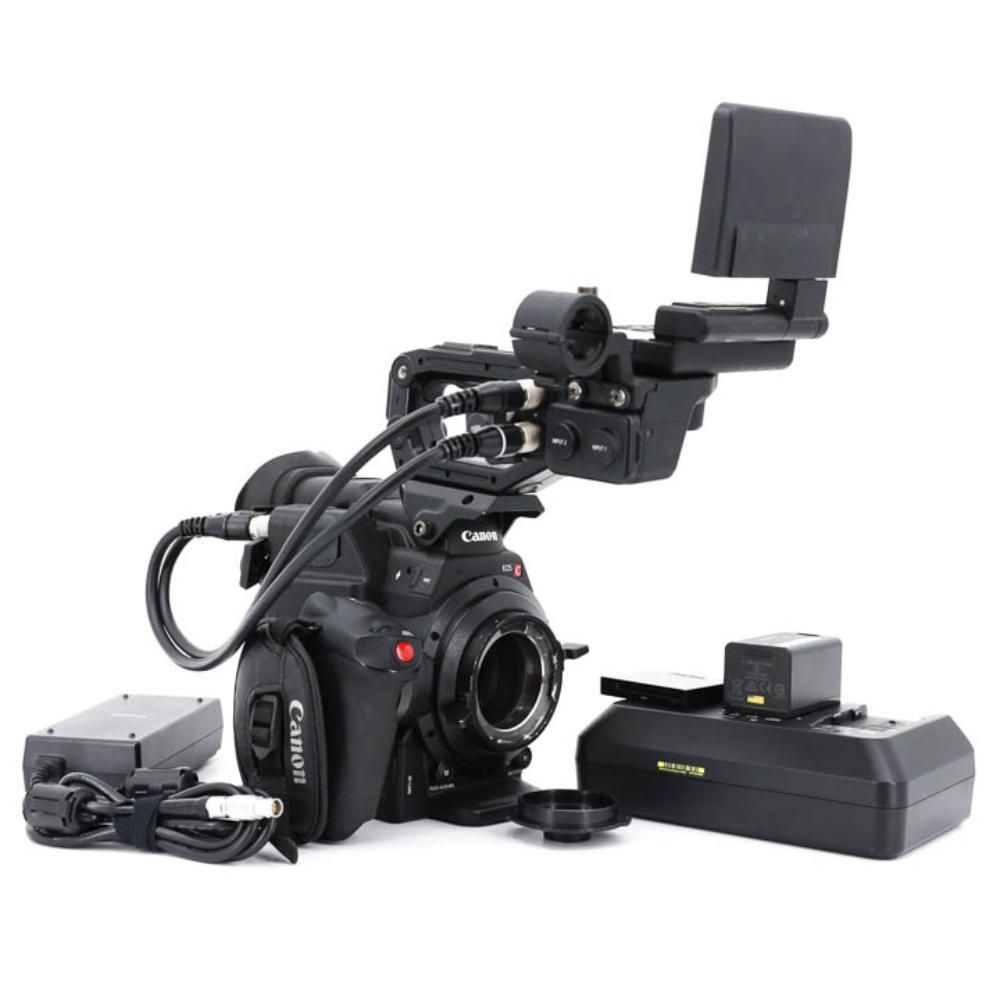

  • Canon C300 Mark II PL Mount camera Body
  • Body Cap
  • Eye Cup
  • Monitor Unit
  • Top Mount Handle Unit
  • Side Handle
  • Mounting Bracket
  • MA-400 Microphone Adapter
  • BP-A30 battery
  • CGA10 battery Charger
  • AC Power Adapter with 2-Prong Power Cable
  • 1.6' UN-5 Unit Cable
  • SanDisk CFast 2.0 Reader/Writer
  • ProGrade Dual-Slot CFast 2.0 and UHS-II SDXC Type-C Card Reader
  • 3/16 Allen Wrench
  • Carrying case


  • This is the PL mount version of this camera. For the EF mount version, please see the Canon C300 Mark II EF Mount.
  • Dual CFast card slots available for internal recording up to 4K. CFast 2.0 cards only CFast 1.0 cards are not compatible. CFast cards are not included.
  • Two SDI terminals (REC OUT and MON) can output 4K raw video to an external recorder (recorder not included). The external recorder must be compatible with Canon Raw files. For more on connecting to an external recorder for 4K raw shooting, please see page 167 of this manual.
  • The C300 Mark II is not compatible with C300 rig and power accessories.
  • A BP-A30 battery is included. This camera is also compatible with the BP-A60.
