Blackmagic Video Assist 7" 6G

BLACKMAGIC

Blackmagic Video Assist 7" 6G

7" Monitor, Records Up to UHD 4K/HD, 30 FPS, 10-Bit 4:2:2
HDMI & 6G-SDI Video Inputs/Outputs
Dual SD Card Slots

Rental Dates

Pickup or Delivery

$84.00 7 Day Rental

Renting gear is easy

1Select Dates

Real-time inventory
Low or no deposit

2Gear Arrives

Free 2-day shipping*
Ship or Pickup

3Shoot

The top gear
Rent from 1-90 days

4Easy Returns

Repack in same box
We provide return label

Overview

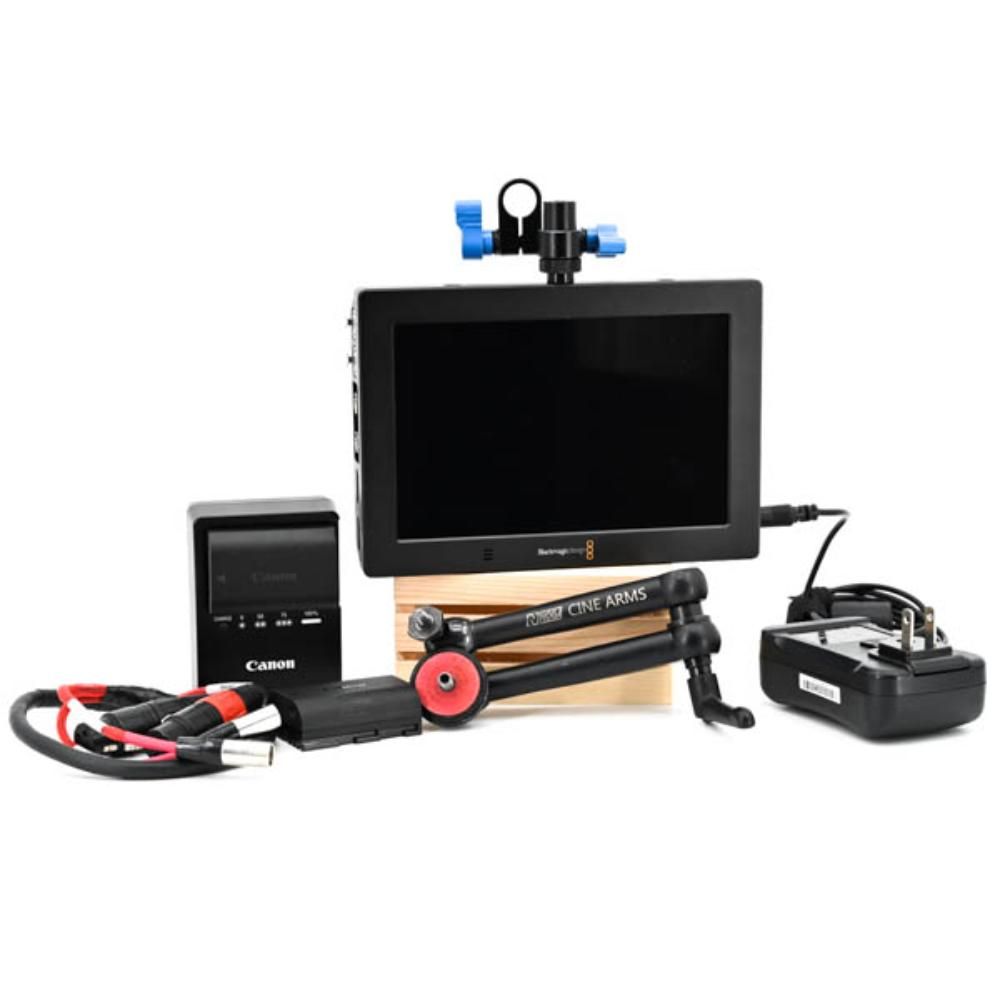

The Blackmagic Video Assist 7" HDMI/6G-SDI is a recording monitor that features both SDI and HDMI connections, making it easy to use with a large variety of cameras. Monitor and record up to UHD 4K at 30p in 10-bit 4:2:2 to up to 2 SD cards (cards not included) using industry-standard Apple ProRes and Avid DNx codecs.

Featuring dual mini XLR inputs and 48V phantom power, attaching external mics is easy. Sound is recorded onto the same file as video so you don't have to worry about AV sync between separate audio and video files. Audio can be monitored on headphones using the 3.5mm stereo jack. The LCD acts as an interactive touchscreen with tap and swipe gestures for changing settings. The LP-E6N battery slots allow for hot-swapping so that you never have to stop recording and/or monitoring. There are several mounting points along the edge of the monitor for easy attachment to customized rigs. This is an all-in-one portable recording monitor that is ideal on set as well as out in the field.

Specs

Size/Resolution: 7", 1920 x 1200
Native Aspect Ratio: 16:9
Video Resolutions/Framerates:

UHD 4K at 23.98, 24, 25, 29.97, 30 FPS
1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 FPS

Ports & I/O:

1 x SD/HD/3G/6G-SDI Input
1 x SD-HD-3G-SDI Output
1 x HDMI 2.0a Input
1 x HDMI 2.0a Output
Embedded SDI Audio (2 Channels)
HMDI Audio (2 Channels)
2 x Mini XLR Input (Balanced with 48V Phantom Power)
3.5mm Headphone
1 x 2.5mm LANC
Mini USB (Type B) 2.0
6 x 1/4"-20 Mounting Ports

Memory Card Compatibility: 2 x UHS-II SD Card Slots
Power: Accepts Up to 2 x LP-E6N Batteries, AC Power Supply
Dimensions: 7.45 x 5.14 x 1.28"
Weight: 1.7 lbs
