BLACKMAGIC

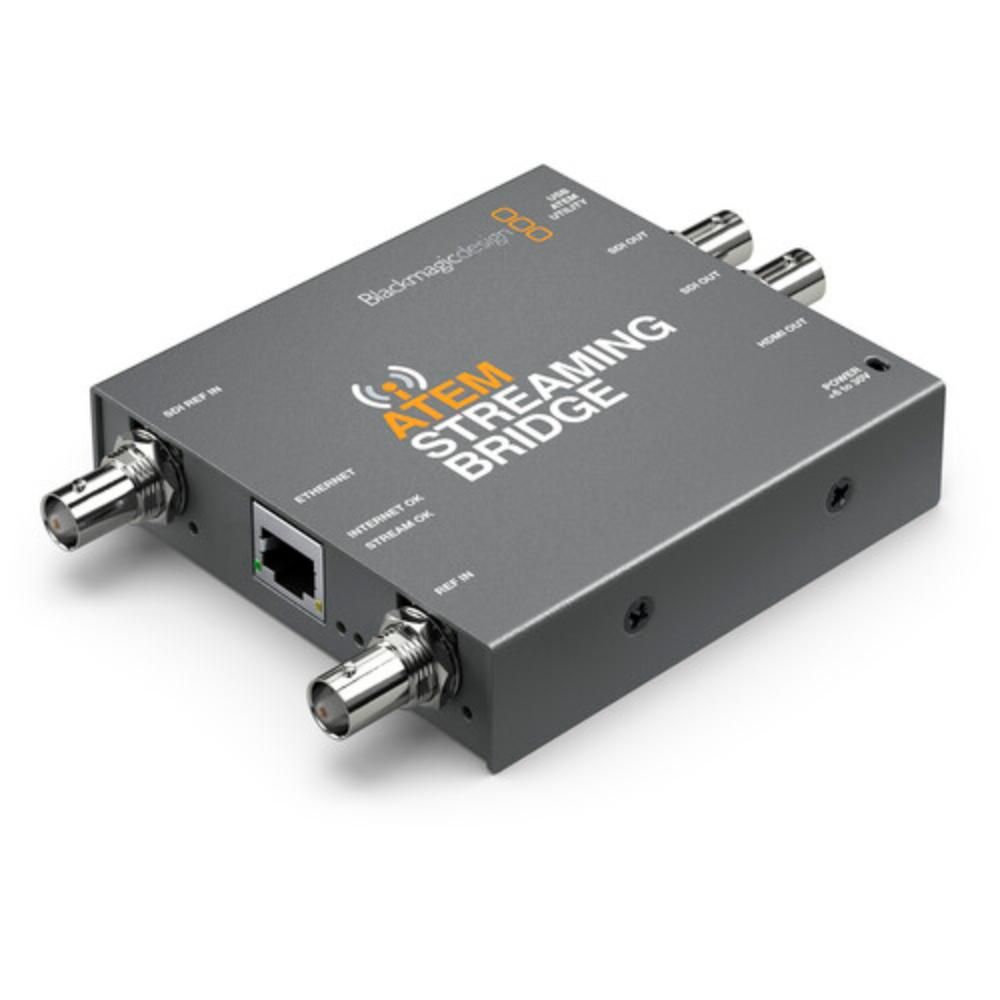

Blackmagic ATEM Streaming Bridge

  • Blackmagic ATEM Streaming Bridge

BLACKMAGIC

Blackmagic ATEM Streaming Bridge

  • Compatible with ATEM Mini Pro Streaming Switcher
  • 1080p60 HDMI/SDI Out
  • Direct/Network/Internet Connection, IP Addressable
Rental Dates
$30.007 Day Rental
Renting gear is easy
1Select Dates
  • Real-time inventory
  • Low or no deposit
2Gear Arrives
  • Free 2-day shipping*
  • Ship or Pickup
3Shoot
  • The top gear
  • Rent from 1-90 days
4Easy Returns
  • Repack in same box
  • We provide return labels

Overview

The Blackmagic ATEM Streaming Bridge will take a compressed feed from an ATEM Mini Pro/Mini Extreme/Mini Pro ISO/Mini Extreme ISO via Ethernet and output the program feed via SDI/HDMI to another device. The Bridge is decoding the streaming video coming through the ATEM Mini Pro/Mini Extreme/Mini Pro ISO/Mini Extreme ISO and converting it back to SDI or HDMI so that you can send video over a network for, as an example, live streaming to a conference room.

Please note that the Bridge does not record anything itself, it's merely for sending ATEM Mini Pro or Mini Extreme program feeds over Ethernet for conversion to SDI/HDMI live out. This is ideal for sending video to remote locations on a local Ethernet network or just over the internet generally. With this and an ATEM Mini Pro or Mini Extreme, you can create remote broadcast studios for collaboration and shows.


  • Inputs: 2 x 3G-SDI (Reference In), USB-C (for Firmware), RJ45
  • Outputs: 1 x HDMI (Type A), 2 x 3G-SDI (10-Bit 4:2:2)
  • No Audio Out, 2-Channel Embedded in HDMI/SDI (48 kHz, 24-bit)
  • Supports Video Input Over Ethernet From ATEM Mini Pro/Mini Pro ISO (H.264 Encoded)
  • 6-30V DC, AC Power (Adapter Included)
  • Dimensions: 5.28" x 3.63" x .90"
  • Weight: 8.1 oz


  • Blackmagic ATEM Streaming Bridge
  • AC Power Adapter
  • Carrying Case



There is no manual for this product
