Atomos Sumo 19

Atomos Sumo 19

1920 x 1080 HDR Touchscreen
HDMI 2.0, 12G-SDI In/Out & Quad-HD Live Switching
ProRes Raw/10-Bit 4:2:2 ProRes, 4K60p, 1080p240
Requires 2.5" SSD

Rental Dates

Pickup or Delivery

$214.20 7 Day Rental

Renting gear is easy

1Select Dates

Real-time inventory
Low or no deposit

2Gear Arrives

Free 2-day shipping*
Ship or Pickup

3Shoot

The top gear
Rent from 1-90 days

4Easy Returns

Repack in same box
We provide return label

Overview

The Atomos Sumo 19 is a highly adaptable and very large monitor/record/switcher. Here are some of the most important features of this professional system:

ProRes Raw support up to 6K30p, 4K60p (DCI/UHD), and 2Kp60 (DCI/HD), plus CinemaDNG support up to DCI 4Kp30.
Large-format quad view live switching and recording record up to four 1080p60 streams simultaneously.
Capture over HDMI or SDI up to 10-bit 4:2:2 in ProRes or DNxHR at 4Kp60 or 2Kp240, depending on the camera.
Dual full sized XLR connections with 48V Phantom power to connect two microphones with balanced analogue audio recording and monitoring.
Convert between HDMI 2.0 and SDI (Quad 3G/6G/12G) in any combination.
Bright 10-bit LCD screen supported by the AtomHDR engine to precisely map log, PQ, or HLG video feeds from cameras, game consoles, or TVs to resolve 10 stops of HDR in real time.
Stores to widely available 2.5" drives (SSDs not included).
Dual 4-pin XLR inputs for power and automatic switching should one source stop working. Dual gold mount battery mounts are provided (batteries not included).

The Atomos Sumo 19 is the ideal tool for bridging your 4K HDR workflow across multiple cameras, audio and Atomos devices.

Specs

Supported Cameras for Raw Recording:

Sony a7S III, Sony a1, Sony FX3, Sony FX6, Sony FS Series
Canon EOS R5, Canon C300, Canon C500
Z Cam E2, Z Cam E2 M4, Z Cam E2 S6, Z Cam E2 F6
Sigma fp, Sigma fp L
Fuji GFX 100, Fuji GFX 100S
Panasonic S1, Panasonic S1H, Panasonic S5, Panasonic GH5S, Panasonic BGH1, Panasonic EVA1
Nikon Z7 II, Nikon Z6 II
Olympus OM-D E-M1X, Olympus OM-D E-M1 Mark III

Learn more on the Atomos site and on Apple's ProRes Raw Authorized Products list.

Supported Resolutions:

Apple ProRes LT/422/422HQ, Avid DNxHD, Avid DNxHR, H.265 (8/10Bit, 422)

4K DCI at 24p, 25p, 30p, 50p, 60p
4K UHD at 24p, 25p, 30p, 50p, 60p
1080p Up to 240 FPS

Apple ProRes 16-Bit Raw

6K at 30p (Select Cameras, SDI Only)
DCI 4K at 24p, 25p, 30p (Select Cameras)
2K at 24p, 25p, 30p, 50p, 60p, 100p, 120p (Select Cameras)

Supported Log Formats:

Sony SLog/SLog2/Slog3
Canon CLog/CLog 2/CLog3
ARRI Log C
Panasonic VLog
JVC JLog
RED LogFilm
Fuji FLog
Nikon N-Log
Olympus OM Log
Leica L Log

Ports & I/O:

HDMI (Type A) 2.0 In
HDMI (Type A) 2.0 Out
3 x 3G-SDI
1 x 12G-SDI
3-Pin XLR Terminals 1 and 2 (Line/Mic Selectable, 48V Phantom Power)
3.5 Headphone
2 x 4-Pin XLR Power Inputs (12-16.8V)
2.5mm LANC
10 x 1/4"-20, 5 x 3/8"-16 Mounting Points

Screen Resolution: 1920 x 1080, 19" Touchscreen LCD
Video Aspect Ratio: Native - 16:9
Memory Compatibility: 2.5" SSD (Cards Not Included)
Dimensions: 19.8" x 12.2" x 2.5"
Weight: 12.3 lbs

Rental Includes

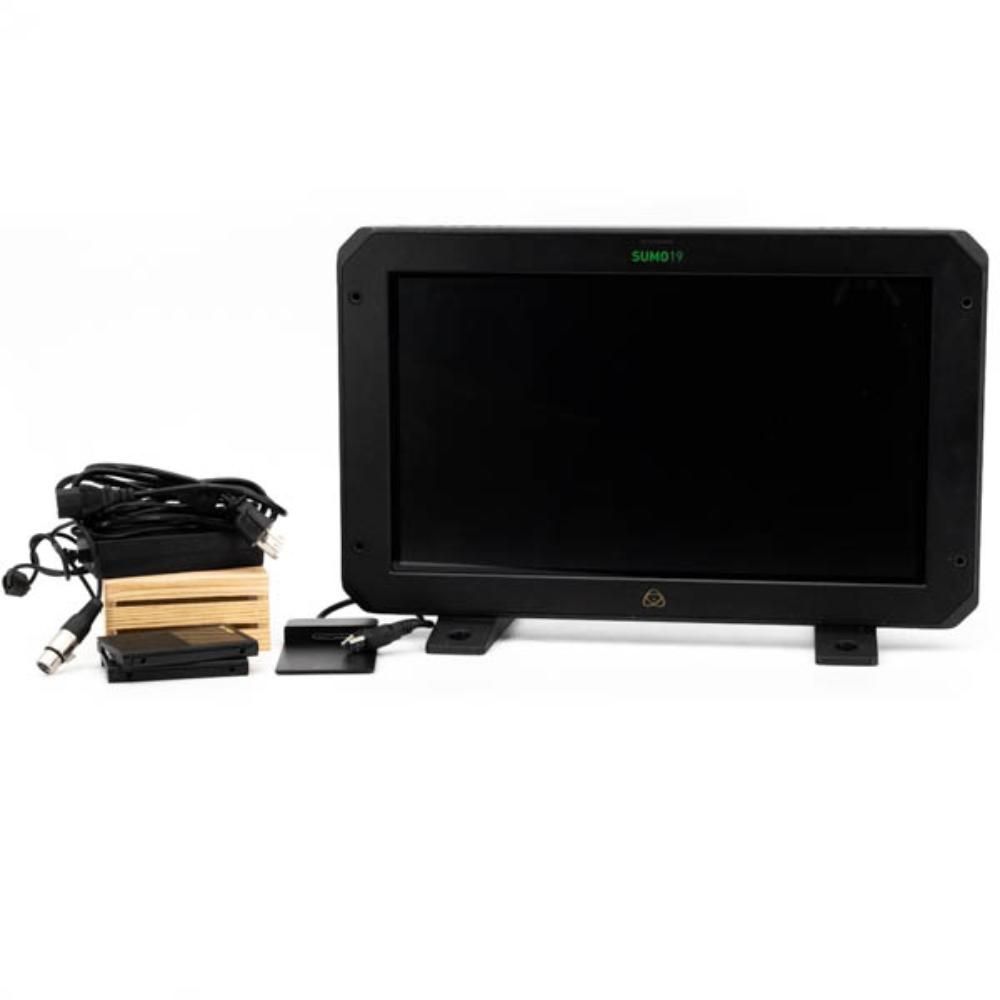

Atomos Sumo 19 HDR/High Brightness Monitor Recorder with 2 Gold Mount Power Plates
4-Pin XLR Power Supply and AC Power Cable
2 Coiled D-Tap to 4-Pin XLR Cables
3.0 SSD Slim Card Reader
2 Master Caddy Cases
Carrying Case

Rental Notes

All of our Sumo recorders have been upgraded to the latest firmware, which includes Raw-to-ProRes Raw from select cameras. It also includes Sony Raw loop-out support, ARRI Raw support, HLG support for the Panasonic GH5/GH5S, and more.
For a list of supported cameras, please visit the Atomos Compatible Cameras page.
For a list of supported SSDs, please visit the Atomos Compatible Drives page.
