Atomos
Atomos Shogun 7 HDR Pro Rental
- Supports Up to 5.7K Apple ProRes Raw, 2Kp240
- 4-Input HD Switching & ISO Recording
- HDR Mode, Dolby Vision Output
Overview
The Atomos Shogun 7 HDR Pro is a professional monitoring, recording, and switching tool that lets you capture 5.7K raw (on select cameras, over SDI only) or 4K Apple ProRes using either HDMI or SDI. Here are some of the other standout features:
The Atomos Shogun 7 is a great system for monitoring and recording footage from a variety of sources. It can be used as a field monitor, a recorder, and/or a switcher for live events and it is small enough for on-camera and gimbal use. It is ideal for filmmaking, performances, and vlogging.
Specs
Supported Cameras for Raw Recording:
- Sony a7S III, Sony a1, Sony FX3, Sony FX6, Sony FS Series
- Canon EOS R5, Canon C300, Canon C500
- Z Cam E2, Z Cam E2 M4, Z Cam E2 S6, Z Cam E2 F6
- Sigma fp, Sigma fp L
- Fuji GFX 100, Fuji GFX 100S
- Panasonic S1, Panasonic S1H, Panasonic S5, Panasonic GH5S, Panasonic BGH1, Panasonic EVA1
- Nikon Z7 II, Nikon Z6 II
- Olympus OM-D E-M1X, Olympus OM-D E-M1 Mark III
Learn more on the Atomos site and on Apple's ProRes Raw Authorized Products list.
Supported Resolutions:
Via SDI, 16-Bit Raw
- 6K at 30p (Select Cameras)
- 2K at 240p (FS700R Only)
- 2K at 180p (FX9 Only)
Via SDI, 8/10-Bit 4:2:2
- DCI 4K at 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p
- UHD 4K at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p
- DCI 2K at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p, 100p, 120p, 200p, 240p
Via HDMI, 8/10-Bit 4:2:2
- DCI 4K at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p
- UHD 4K at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p
- DCI 2K at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p, 100p, 120p, 200p, 240p
Supported Log Formats:
- Sony SLog/SLog2/Slog3
- Canon CLog/CLog 2/CLog3
- ARRI Log C
- Panasonic VLog
- JVC JLog
- RED LogFilm
- Fuji FLog
- Nikon N-Log
- Olympus OM Log
- Leica L Log
Ports & I/O:
- HDMI (Type A) 2.0 In/Out (Supports Up to 4K)
- BNC In (4 x 3G HD-SDI, 2 x 12G-SDI, Supports Up to 6K Raw)
- BNC Out (2 x 12G-SDI, Loop Out/Play Out)
- 3.5 Headphone Jack
- 2.5mm LANC Port
- 10-Pin LEMO Input
- 2 x XLR Analogue Input/Output
- Genlock Input/Output
- 1/4"-20, 3/8"-16 Top/Bottom Mounting Points
Screen Resolution: 1920 x 1200, 7" Touchscreen LCD
Video Aspect Ratio: Native - 16:9
Memory Compatibility: 2.5" SSD (Cards Not Included)
Dimensions: 8.4" x 5" x 1.8"
Weight: 1.56 lbs

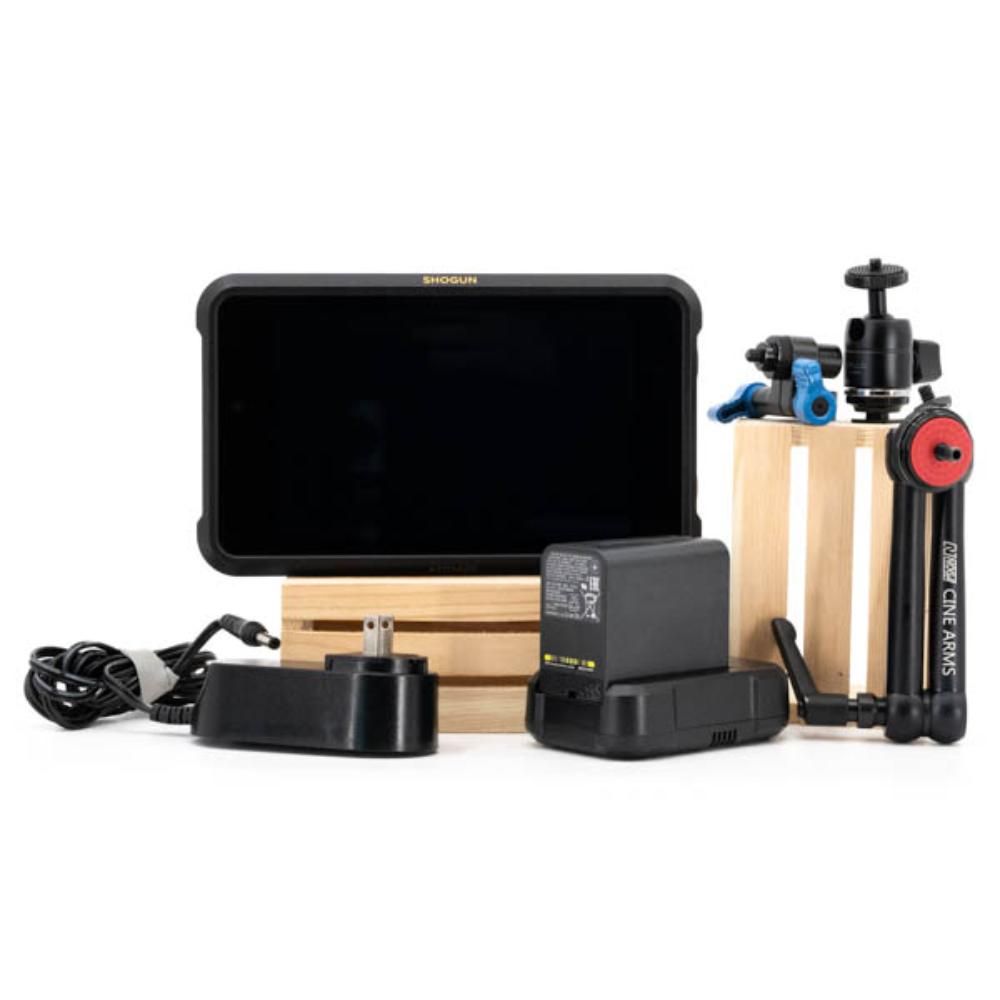

Rental Includes
- Atomos Shogun 7" HDR Pro Recording Monitor
- Master Caddy Case
- USB 3.0 SSD Slim Card Reader
- Redrock microMount
- AC Power Adapter
- Sony NP-F970 Battery
- 2A Fast Battery Charger
- Standard Cable Pack (Includes the Following by Default, Even if Item Doesn't Support All of These Ports: 3' HDMI to HDMI Cable, 3' Mini HDMI to HDMI Cable, 3' Micro HDMI to HDMI Cable, Right Angle HDMI to HDMI Adapter, Right Angle Mini HDMI to HDMI Adapter, 3' BNC to BNC Cable)
- Redrock microMount
- Noga Arm
- Micro Ball Head Shoe Mount
- Carrying Case
